5 Ton CD Electric Wire Rope Hoist with Safety Limit Switch and Strong Lifting Power

Home » Products » Hoists » CD MD Electric Wire Rope Hoist » 5 Ton CD Electric Wire Rope Hoist with Safety Limit Switch and Strong Lifting Power

5 Ton CD Electric Wire Rope Hoist with Safety Limit Switch and Strong Lifting Power

Wire rope electric hoists is a kind of light and small lifting equipment with advantages of tight structure,light weight,small volume, wide common use and convenient operation,etc.

Model:
CD electric hoist
Brand:
VOHOBOO

Quantity:
Availability:





Inquire Add to Basket

Wire Rope Hoist 1T Electric Wire Rope Hoist 1ton Electric Hoist MD Type Wire Rope Electric Hoist CD Wire Rope Electric Hoist double speed wire rope hoist special hoist double wire rope hoist wire rope electric hoist for industrial wire rope hoist electric 1t 20m wire rope hoist

Product Description

Product Details

Product Parameter

Packing and Shipping

About US

QQ截图20191203161526

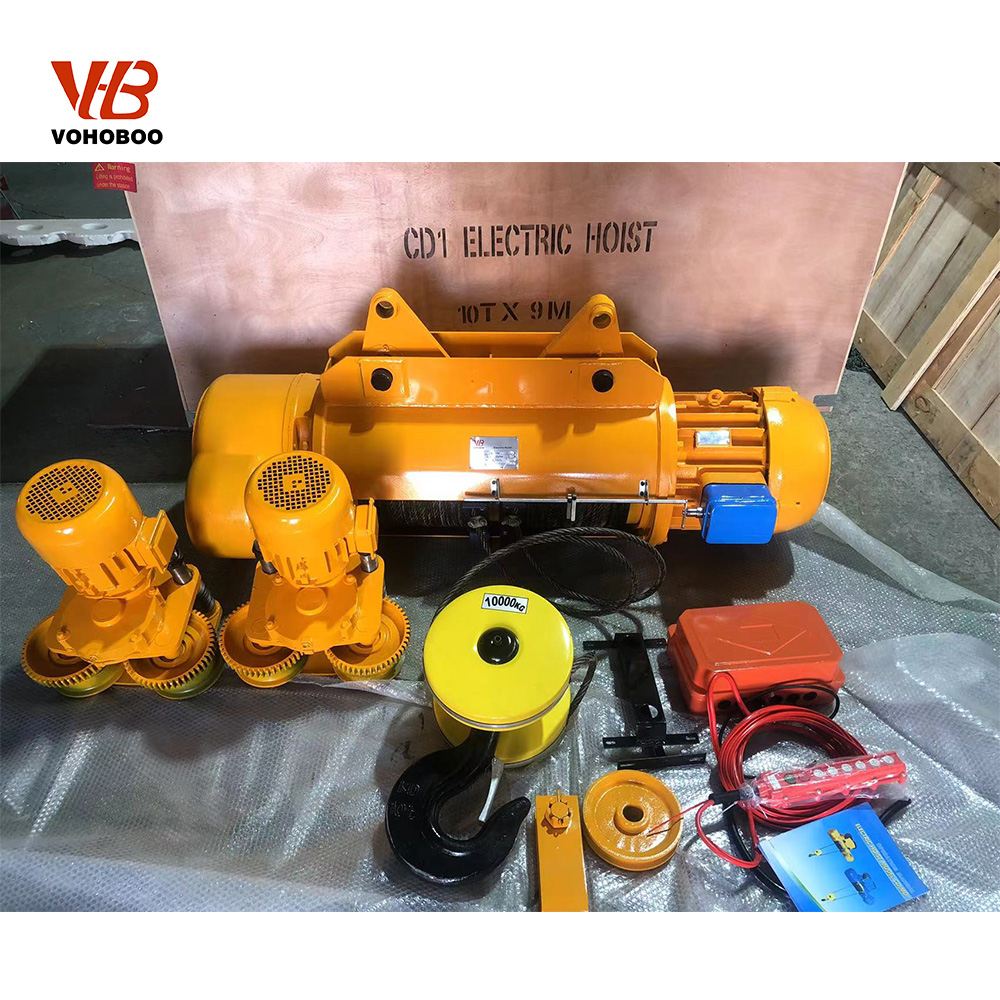

Lifting hoist model CD wire rope electric hoist is small-sized lifting equipment, which can be mounted on single
beam, bridge, gantry and arm cranes. With slight modification, it can also be used as a winch. It is widely used in
factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and
improving working conditions. It has only one normal speed, which can satisfy normal application.

1. Design: International advanced tide compact and nice.

2. Reduce: High strength hard gear surface, inclined gear driving with low noise.

3. Motor: Inside fit plane brake, double winding pole changing control motor, incorporate with reducer.

4. Wire Rope: The tensile strength is 1760N/mm2.

5. Limit Switch: Cam limit model operate safety.

CD or MD model electric hoist can be widely used to hoist heavy objects, or installed on the straight or curve I-section steel beam of single beam cranes. They can also be used together with Electric Hoist Double beam gantry cranes and jib cranes. All the above has made the electric hoists common in industrial and ore enterprises, railway, wharf and warehouses. CD or MD model monorail wire rope electric hoist is a kind of light-duty lifting equipment with advantages of tight structure, light weight, small volume, wide common use and convenient operation etc.If reducers with hard gear surface are applied, it will have long life and high mechanical efficiency. CD model electric hoist has one lifting speed. MD model electric hoist has normal lifting speed and slow lifting speed which make it lift steadily and accurately.

pXaX(1)

Model	CD1/MD1	Capacity	0.5-20ton
Grade	M3	LIfting Height	6-30m
Lighting Speed	8m/min or 8/0.8m/min	Running Speed	20m/min
Pulley Ratio	2/1	Lifting Motor Power	0.2-13kw
Running Motor Power	0.2kw-0.8*4kw	Brand	VOHOBOO
Place of Origin	Hubei, China	Payment Terms	L/C,T/T, Western Union, Paypal, Escrow, etc.
Delivery Time	5-7 working days	Warranty	1 year
MOQ	1 Piece	Port	Shanghai or other port of China
