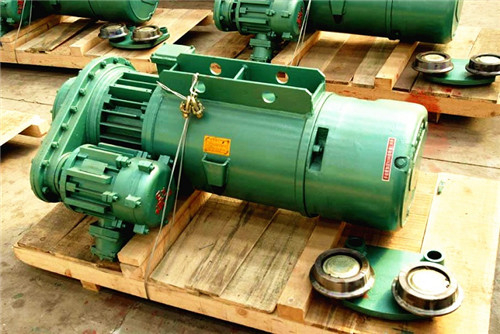

MD Double Speed Wire Rope Electric Hoist

Wire rope electric hoists is a kind of light and small lifting equipment with advantages of tight structure,light weight,small volume, wide common use and convenient operation,etc.

Model:
MD electric hoist
Brand:
VOHOBOO

Quantity:




Inquire Add to Basket

md Wire Rope Electric Hoist CD Wire Rope Electric Hoist Double Speed Electric Hoist

Product Description

Model CD1 Electric Wire rope Hoist is single speed type, which can satisfy normal application. Model MD1 Electric Wire rope Hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc.

Wire rope hosit

Electric Wire rope Hoist Parameter:

Model	Capacity	Grade	Lifting height	Lifting speed	Running speed (m/min)	Pulley ratio	Lifting motor power	Running motor power	C
	(t)		(m)	(m/min)			(KW)	(KW)	（mm）
CD1 MD1	0.5	M3	6/9/12/18/24/30	8	20	2/1	0.8	0.2	650
				8/0.8			0.2/0.8
	1	M3	6/9/12/18/24/30	8	20	2/1	1.5	0.2	667
				8/0.8			0.2/1.5
	2	M3	6/9/12/18/24/30	8	20	2/1	3	0.4	840
				8/0.8			0.4/3
	3	M3	6/9/12/18/24/30	8	20	2/1	4.5	0.4	954
				8/0.8			0.4/4.5
	5	M3	6/9/12/18/24/30	8	20	2/1	7.5	0.8	1120
				8/0.8			0.8/7.5
	10	M3	6/9/12/18/24/30	7	20	2/1	13	0.8*2	1350
				7/0.7			1.5/13
	16	M3	9/12	3.5	20	2/1	13	0.8*2	1400
				3.5/0.35			1.5/13
	20	M3	8/10/15/24	3.5	20	2/1	13	0.8*4	1500
				3.5/0.35			1.5/13
