》Shell: Light aluminum alloy shell shall be adopted which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
》 24V/36V device: it is used to prohibit the emergencies from occurring in case of the leakage in the switch.
》 Side magnetic braking device: This device shall realize the instant brake in case of the power dump.
》Chain bag: It shall be light, handsome and durable.
》 Chain: The chain shall adopt the imported FEC80 ultra heat-treatable aluminum alloy chain.

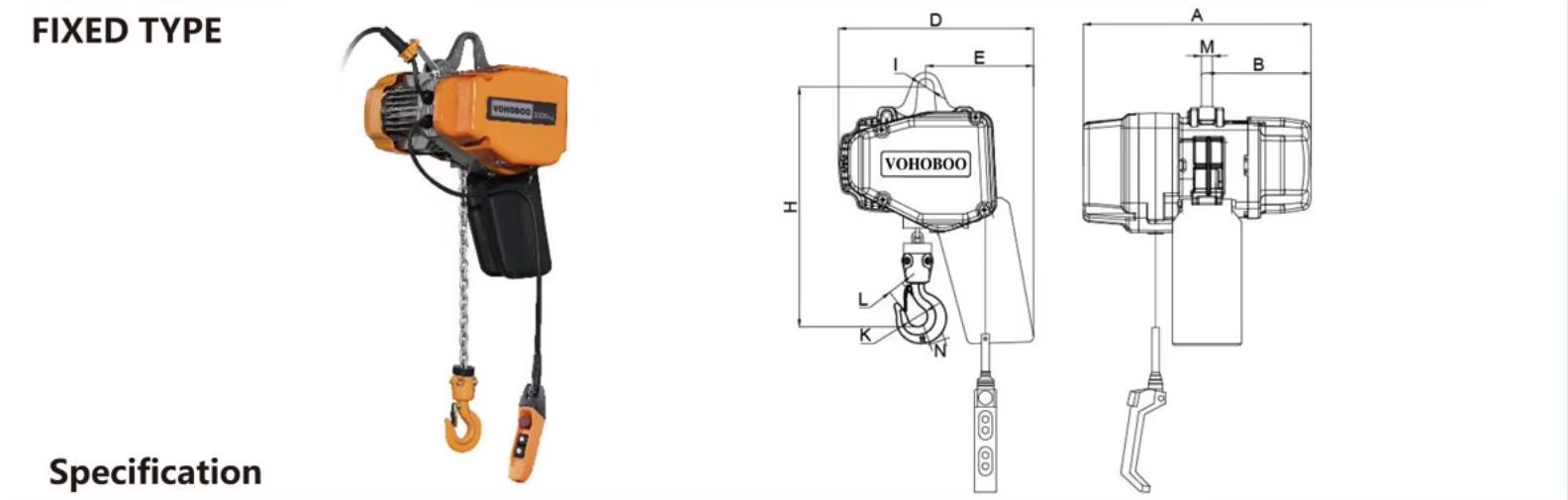

| Type | Capacity(Ton) | Grade | Package | Chian Size(mm) | Net Weight | High Speed(m/min) | Low Speed(m/min) |
| EQ 0.25-01 IS | 0.25 | M5 | 50*35*34 | 5.6 | 30 | 15 | 3 |
| EQ 0.5-01 IS | 0.5 | M5 | 50+35*34 | 5.6 | 30 | 7.8 | 1.6 |
| EQ 01-01 IS | 1 | M5 | 60*40*38 | 7.1 | 40 | 5.2 | 1 |
| EQ 02-02 1S | 2 | M5 | 60*45*40 | 7.1 | 40 | 2.6 | 1.5 |

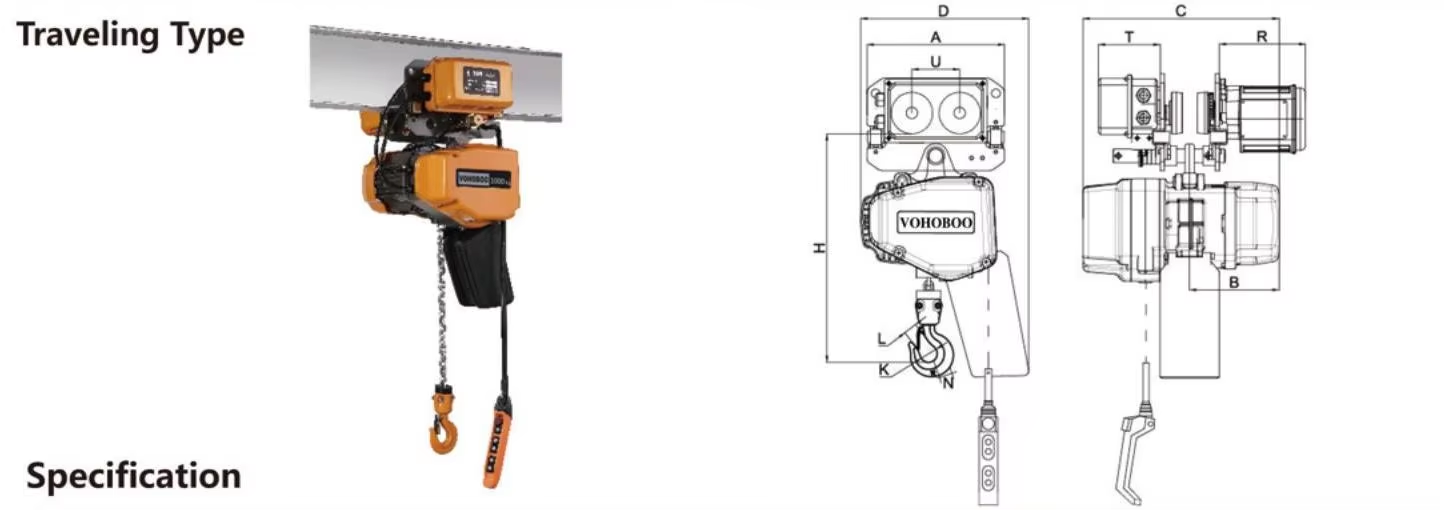

| Type | Capacity(Ton) | Grade | Package | Chain Size(mm) | Net Weight | High Speed(m/min) | Low Speed(m/min) |
| EQ0.25-01YS | 0.25 | M5 | 50*35*45 | 5.6 | 50 | 15 | 3 |
| EQ0.5-01YS | 0.5 | M5 | 50*35*45 | 5.6 | 50 | 7.8 | 1.6 |
| EQ01-01YS | 1 | M5 | 60*40*50 | 7.1 | 90 | 5.2 | 1 |
| EQ02-01YS | 2 | M5 | 60*40*50 | 7.1 | 100 | 2.6 | 0.5 |
