3 Ton Column Mounted Jib Crane with Motorized Rotation for Factory Indoor Material Transfer VOHOBOO

Column is made of seamless steel pipe, and the main girder is made of 1-beam girder or light crane system beam, rotating way can be manual(< 1t) or electric. JIB crane can be equipped electric wire rope hoist, electric chain hoist or manual hoist. It is suitable to work in the short-range and intensive lifting occasions. So it’s widely used in workshops, warehouses, docks and other fixed place.

We can recommend different models of cranes according to different working requirements. This kind of machine has two types of manipulation: electric and manual operation. Rotary arm rotation angle can be chosen from 180 °, 270 °, 345 °, 360 ° according to client’s usage.

Brand:
VOHOBOO

Quantity:
Availability:





Inquire Add to Basket

jib crane 2 ton jib crane 3 ton jib crane crane jib jib crane 3 ton electric crane affordable jib crane rotating jib crane cantilever crane jib crane construction

Product Description

Product Details

Product Parameter

Packing and Shipping

微信图片_20220726101714

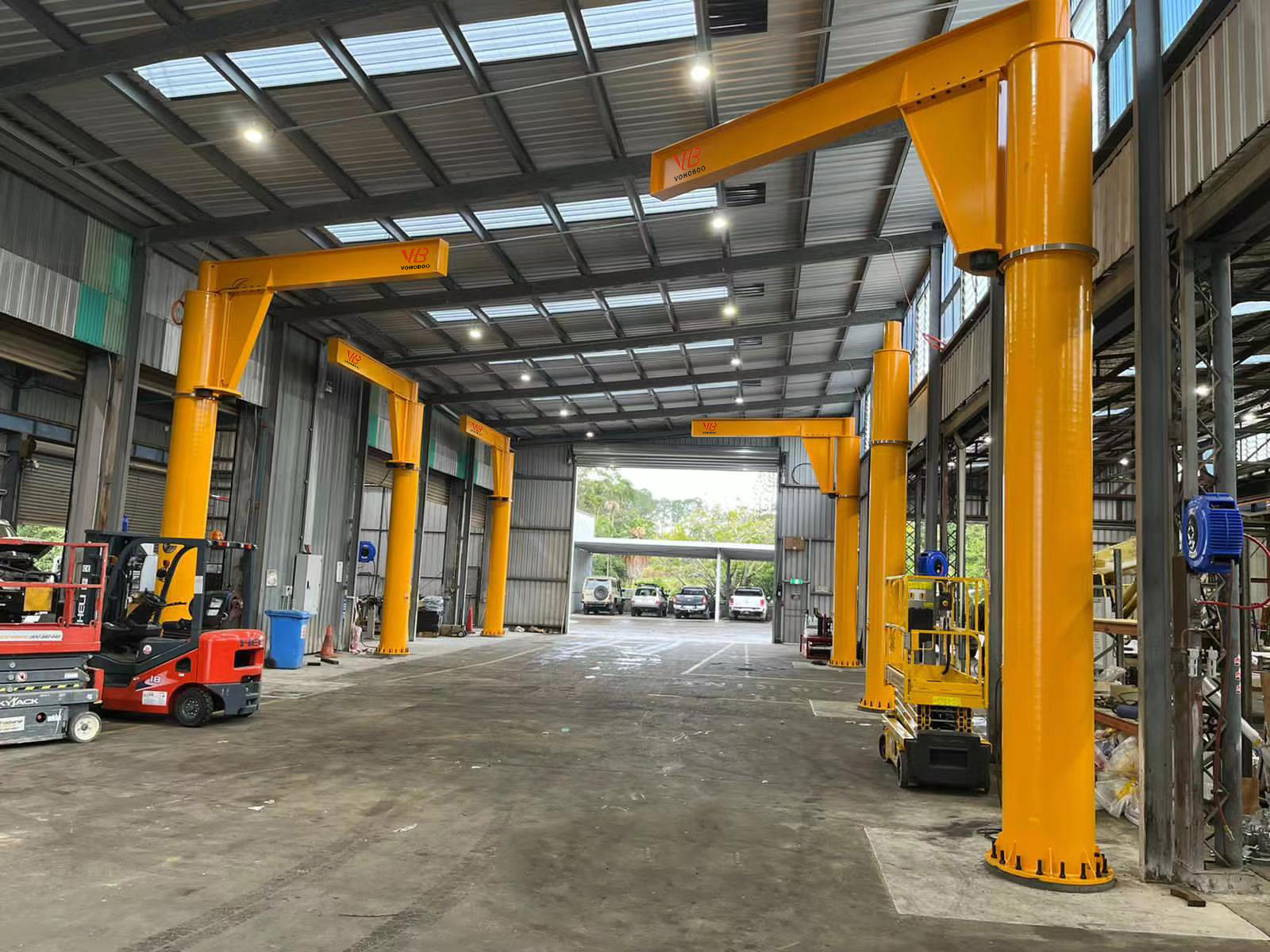

Versatile Jib Crane Solution for Efficient Material Handling

Our Jib Cranes are engineered to provide a flexible and reliable lifting solution for indoor and outdoor applications. Designed with a rotating arm mounted on a fixed column or wall, the crane allows for easy access to work areas where overhead cranes are not feasible. With capacities ranging from 0.5 to 5 tons and various rotation angles (typically 180° to 360°), this crane is ideal for repetitive lifting tasks in factories, workshops, docks, and maintenance bays. The structure is made of heavy-duty steel and features a smooth rotation system, ensuring long-term performance and operator safety.

HTB1pJ8nib1YBuNjSszhq6AUsFXaH
H9a5c62af258b47ab94f05f3ab0c6dd18C

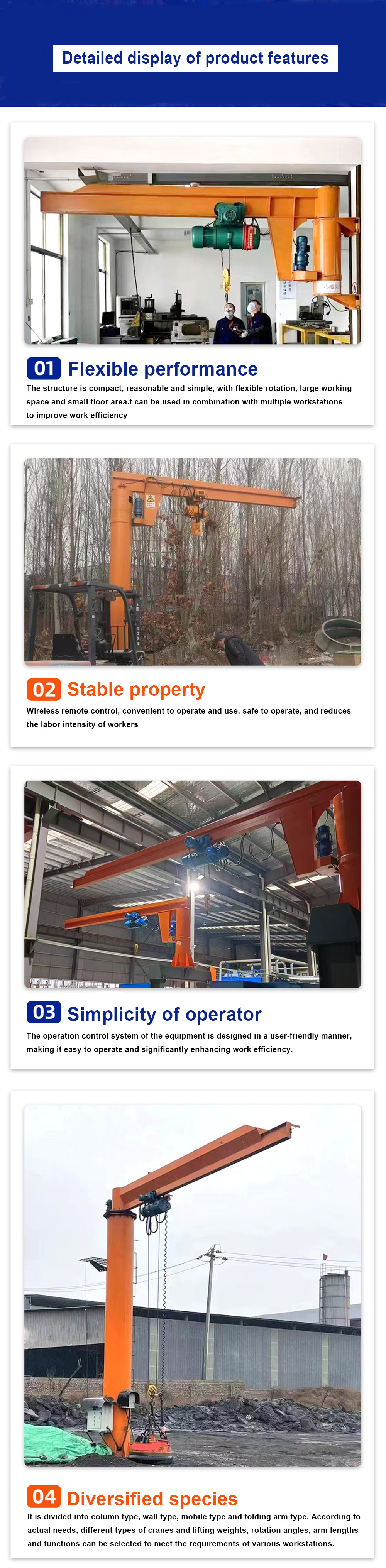

JIB Crane-Details(1)

Lift capacity(T)			1, 2, 3, 5, 10, 16, 20
Span(M)			7.5-22.5
Mechanism traveling	speed(m/min)		10, 20, 30	45, 60
	motor	type	ZDY1 21-4	ZDR12-4
		power(kw)	2*0.8	2*1.5
		speed(r/min)	1380	1380
Electric chain hoist or wire rope hoist		model	CD1/MD1/HHBB
		lift height(m)	3-25
		traversing speed(m/min)	20,30 or can be customized
		lifting speed(m/min)	8(7); 8/0.8(7/0.7)
Workclassfication			A3-A5
Power supply			380V/50HZ or on request
