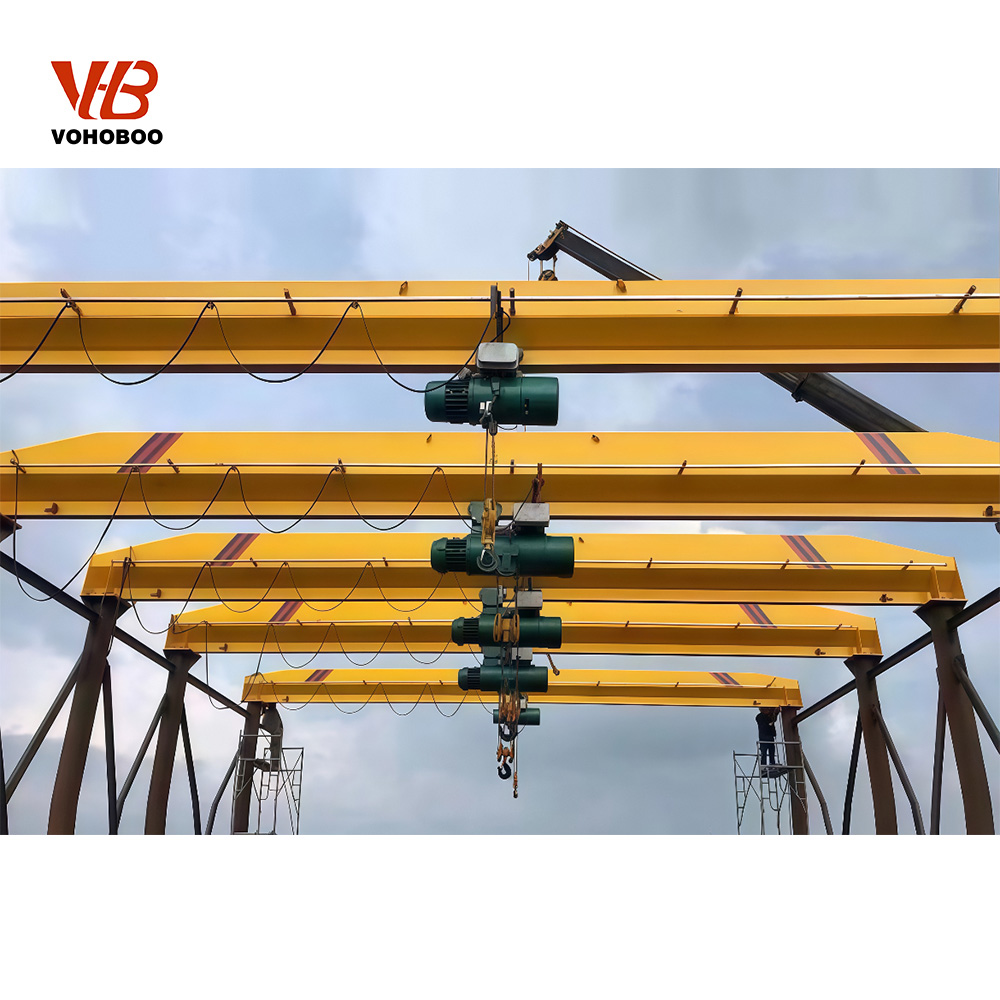

A. Single girder overhead crane
Single beam overhead crane configuration is made up of a single bridge girder, two end carriages and a hoist with trolley, which
runs along the bottom flange of the bridge girder between the end carriages.
* It is widely used in industrial factory, warehouse, workshop, stock ground, workstation factory, goods yard etc.
* It looks like bridge, because both ends of girder are on the tall concrete column and metal support structure.

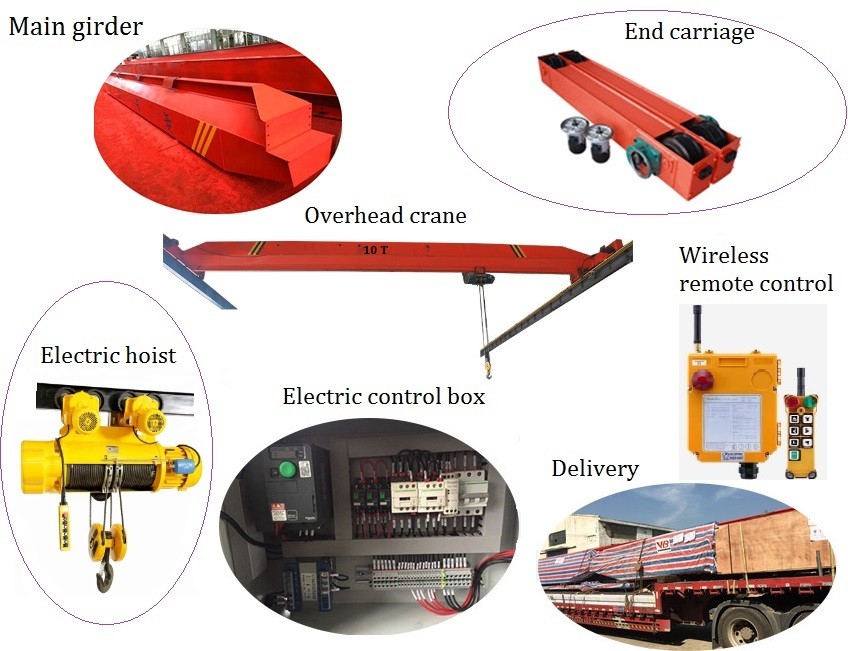

* It consists of metal structure, crane travelling mechanism, lifting mechanism, safety protection and operation.

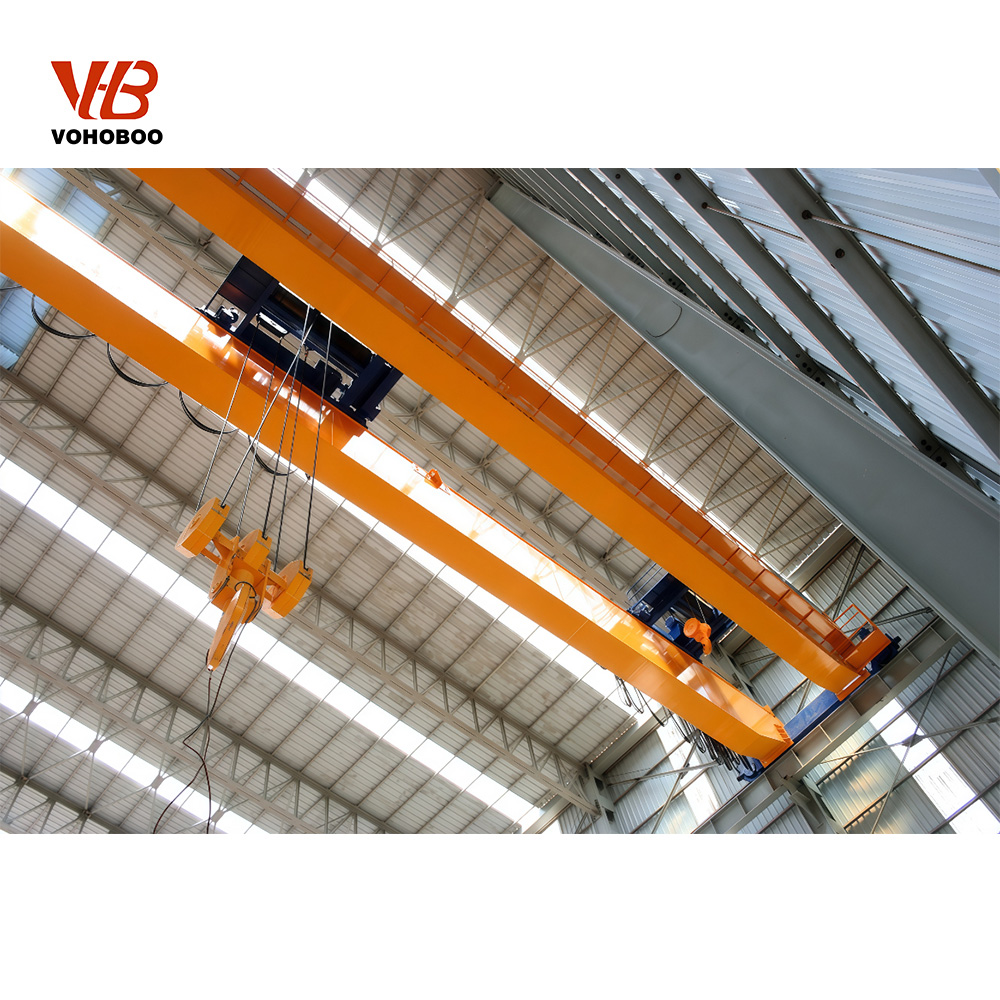

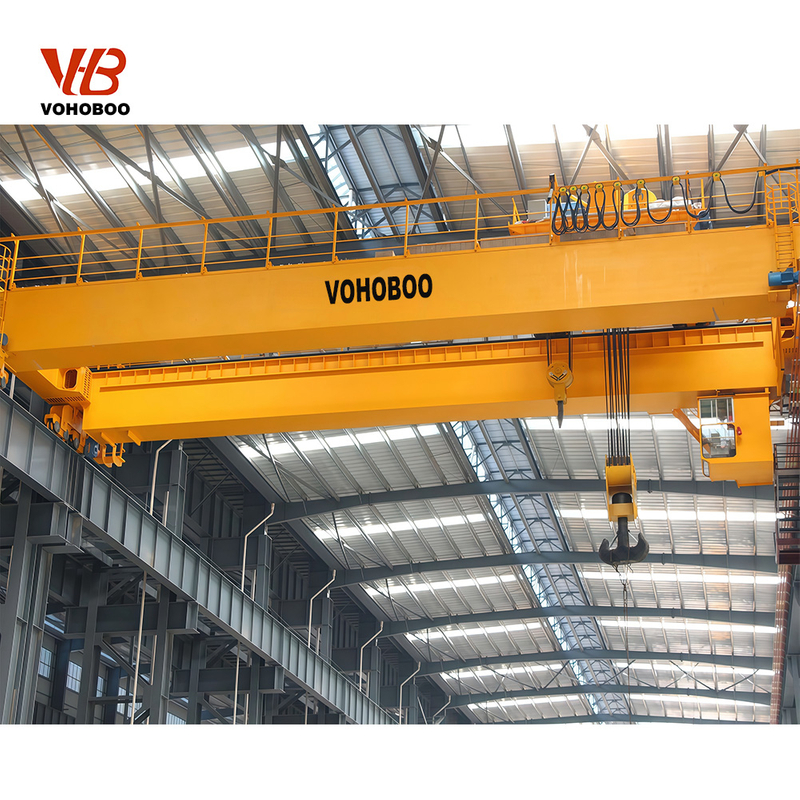

B.Double girder overhead crane
Double beam overhead crane configuration is made up of two bridge girders, two end carriages and a hoist with trolley. The hoist travels on top of rails that are mounted to the top of bridge girders. It is widely used for transferring material, goods equipment installation and maintenance in factory, power station, storeroom, warehouse etc.

Model:
LD/LDX LH/QD QD/LX
Brand:
VOHOBOO

Quantity:
Availability:





Inquire Add to Basket

overhead crane bridge crane electric overhead crane Single Girder Overhead Crane 10 ton overhead crane overhead crane 10ton double girder overhead crane 10t overhead crane price overhead crane 10 ton overhead travelling crane

Product Description

Product Features

Product Parameter

Shipping Chart

Product Description

Heavy Duty Applications – Emphasis on Strength & Safety
Heavy-Duty Overhead Crane for Harsh Industrial Environments

Built for extreme lifting demands, VOHOBOO heavy-duty overhead crane is ideal for applications in steel plants, foundries, and construction sites. With lifting capacities up to 50 tons, this crane combines rugged design with advanced safety features like overload protection, limit switches, and fail-safe brakes.
The double-girder structure supports higher hook heights and longer spans, while the precision-machined wheels and hardened rail ensure smooth, reliable movement. Operators can choose between cab control, pendant control, or remote control systems for maximum flexibility. Each crane is custom-built to your site requirements and complies with international standards like FEM, ISO, and CMAA.

Product Features 详情页成品

Product Parameter

Iteam	Specifications
Lift capacity(T)	1T~100T (single girder or double girder)
Crane span(M)	3~28m according to your demands
Lifting height(M)	3~48m according to your demands
Crane traveling speed(m/min)	5~20m/min or 5~30m/min or 5~40m/min.As your request
Electric hoist lifting speed(m/min)	European electric hoist (5/0.8 m/min double speed)	CD1 electric hoist(8 m/min) MD1 electrc hoist(8/0.8 m/min)
Hoist trolley speed(m/min)	0-20 m/min	20m/min or 8/20m/min
Remote control	F24-6D/F24-10D or F21-E1B etc, according to your demands
