10 Ton Heavy Load Overhead Crane System with Reinforced Beams and High Safety Standards for Outdoor Use

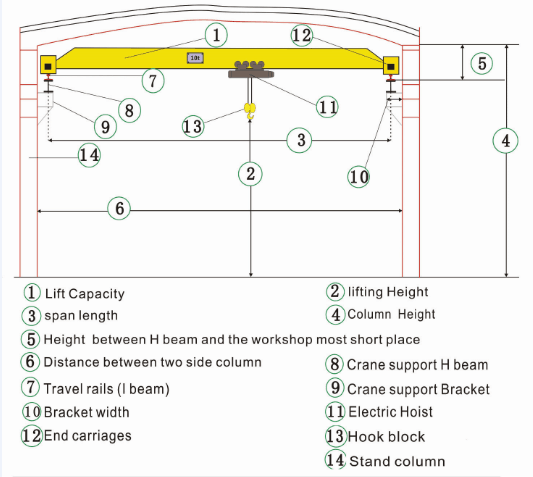

A. Single girder overhead crane

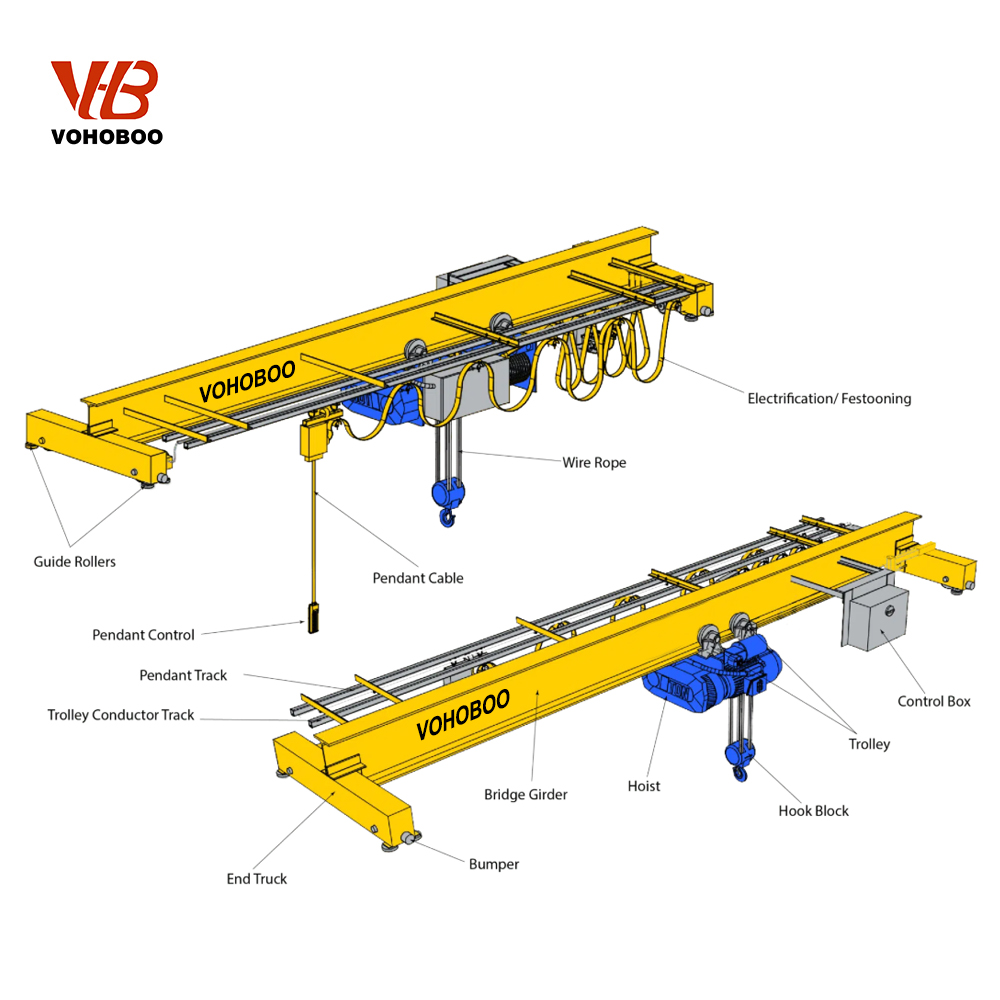

Single beam overhead crane configuration is made up of a single bridge girder, two end carriages and a hoist with trolley, which
runs along the bottom flange of the bridge girder between the end carriages.
* It is widely used in industrial factory, warehouse, workshop, stock ground, workstation factory, goods yard etc.
* It looks like bridge, because both ends of girder are on the tall concrete column and metal support structure.
* It consists of metal structure, crane travelling mechanism, lifting mechanism, safety protection and operation.
B.Double girder overhead crane
Double beam overhead crane configuration is made up of two bridge girders, two end carriages and a hoist with trolley. The hoist travels on top of rails that are mounted to the top of bridge girders. It is widely used for transferring material, goods equipment installation and maintenance in factory, power station, storeroom, warehouse etc.

Model:
LD/LDX LH/QD QD/LX
Brand:
VOHOBOO

Quantity:
Availability:





Inquire Add to Basket

overhead crane bridge crane electric overhead crane Single Girder Overhead Crane 10 ton overhead crane overhead crane 10ton double girder overhead crane 10t overhead crane price overhead crane 10 ton overhead travelling crane

Product Description

Product Features

Product Parameter

Product Details

Product Description

General Industrial Use – Emphasis on Versatility & Efficiency
Product Description – Industrial Overhead Bridge Crane
Our industrial overhead bridge crane is designed to streamline material handling across various industries including manufacturing, automotive, energy, and logistics. It delivers outstanding lifting capacity, smooth motion control, and excellent structural rigidity, ensuring safe and efficient operations even in the most demanding conditions.
Built with high-grade steel and precision-engineered components, the crane features a robust girder system, energy-efficient motors, and easy-to-use controls. Optional add-ons include radio remote control, anti-collision systems, and customized span lengths. Whether you require a single girder for lighter loads or a heavy-duty double girder model, this crane adapts to your workflow with minimal installation downtime.

Product Features 桥式-特点

Product Parameter

Iteam	Specifications
Lift capacity(T)	1T~100T (single girder or double girder)
Crane span(M)	3~28m according to your demands
Lifting height(M)	3~48m according to your demands
Crane traveling speed(m/min)	5~20m/min or 5~30m/min or 5~40m/min.As your request
Electric hoist lifting speed(m/min)	European electric hoist (5/0.8 m/min double speed)	CD1 electric hoist(8 m/min) MD1 electrc hoist(8/0.8 m/min)
Hoist trolley speed(m/min)	0-20 m/min	20m/min or 8/20m/min
Remote control	F24-6D/F24-10D or F21-E1B etc, according to your demands
