10 Ton Container Gantry Crane with Automatic Positioning System for Shipping Yards, Terminals and Port Facilities

Versatile Mobile Gantry Crane with Precision Control and Custom Engineering

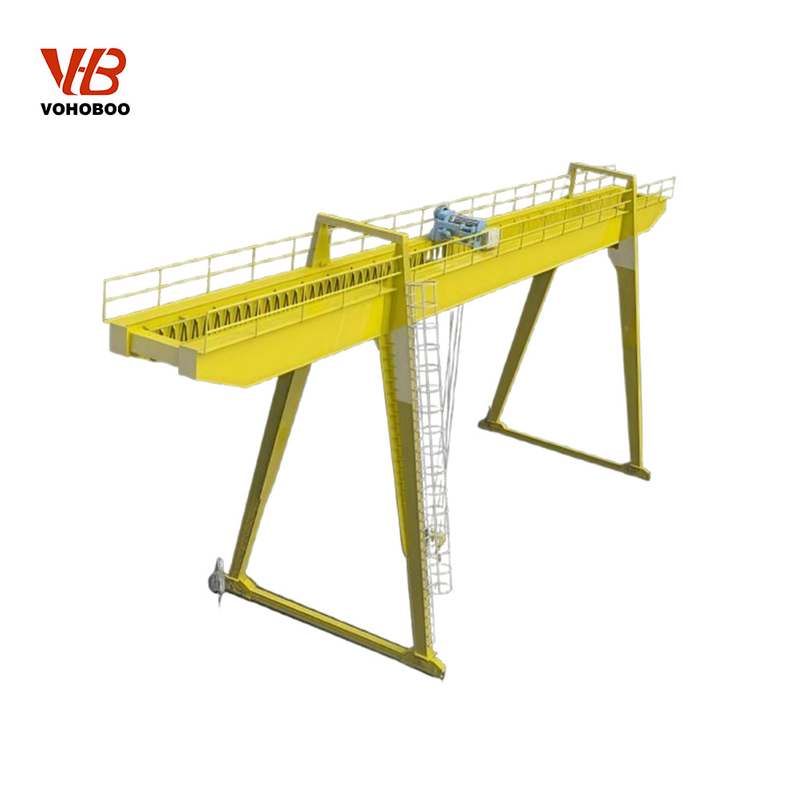

The mobile gantry crane offers a flexible, space-efficient, and cost-effective solution for lifting and transporting heavy materials, especially in areas where building an overhead crane system is impractical. Designed with modular components, the gantry crane includes:

Steel Main Beam: Heavy-duty I-beam or welded box girder suitable for indoor/outdoor use.

Support Legs & End Carriages: Fabricated with precise alignment for smooth trolley travel and equipped with rail-mounted or rubber tires (RTG) for mobile applications.

Hoisting System: Features a low-headroom electric wire rope hoist or chain hoist, optimized for vertical and horizontal load movement.

Electric Drive Units: High-efficiency motors with planetary gearboxes and VFDs for adjustable speed, minimizing sway and enhancing positioning accuracy.

Control System: User-friendly interface through push-button pendant, radio remote control, or cabin with joystick, all with emergency stop functions and status indicators.

Power Supply Options: Ground-powered via cable reel or diesel generator, and adaptable to battery-powered systems for specific field operations.

With load capacities from 2 tons up to 50 tons, this gantry crane is widely used in machinery assembly, wind turbine blade handling, container lifting, prefabricated component yards, and outdoor storage zones. The structure is treated with anti-corrosion coatings, making it highly weather-resistant and suitable for long-term outdoor use.

Advantages include:

No need for permanent foundations, enabling fast deployment

Easy dismantling and relocation

Multiple configurations (A-frame, U-frame, semi-gantry, cantilevered ends)

Customizable height, span, and load capacity to fit limited space or unique workflow

Whether for temporary use on construction sites or permanent setups in industrial yards, our mobile gantry crane provides exceptional performance, flexibility, and safety assurance for your material handling operations.
