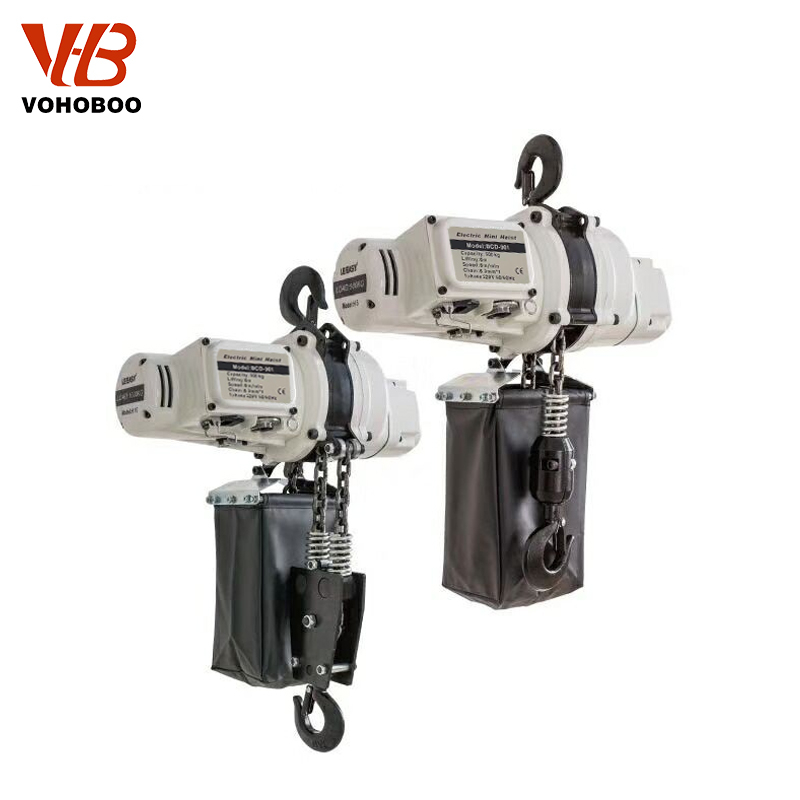

VOHOBOO 500kg 1000kg Easy Maintenance BCD Mini Electric Lifting Chain Hoist With Pendant

The lightweight electric chain hoist is suitable for engineering hanging, factory hoisting operations, construction projects, interior decoration, agricultural and grain lifting, warehouse access, etc., small in appearance, heavy and light, single-phase power supply is convenient, and it has a wide range of uses. The unique ascension system design makes it lighter, quieter and easier to carry in small places.
Quantity:
Inquire Add to Basket

  • BCD

  • VOHOBOO

  • Mini Electric Chain Hoist

  • Motor, Bearing, Gear, Gearbox

  • 1 Year

  • 35 kg

  • Construction Hoist

  • Electric

  • Chain

  • Single phase

  • 6.3mm

  • 1.3 Kw

H7ea827e9423a4faca5b564f881710179N
Hf894bdbc534f4265a705d29219a29a38L
Hd23d4045c8c248eab6a466670a6e8f68m
Hdd52bb01b4cc443fa0163750f96920368
USAGE：
The mini electric chain hoist can be widely used in hanging for engineering, plant hoist operations, civil hydropower installed piping,Warehousing and shipping the goods it can be used to lift, raise and, drag. lt's compact,lightweight, economy and effective,and easy to obtain single-phase power supply.
SPECIAL FEATURES:
Motor system:
using brushless motor series excited of high efficiency industrial grade; there are two selected configurations of single phase voltage (110v/ 220V); its enameled heat levels up to 200 degrees, specifically designed for long crane.
Brake system:
dual brake system with one mechanical ratchet gear brakes and the other brake resistor short circuit controller, formula oiled copper disc brakes with high friction coefficient,which needs no adjustment;immediately brake in power outage or malfunction,great safety and long life.
Electronic controt system:
direct control which saves ted lous lines and has the advantages of easy maintenance, low failure rate, security and stability;control switch with separate power line and quick connector makes it easy to carry.
Gear system:
Use the transmission plus planetary reduction gear with the best efficiency;, planetary gear set has two steel heat  treatment operating idlers which can share power, and the life is more than 2 times the general driving type.
头图

特点 H54f7dafc2636412a8349aea6eb774542y
H9edaf0c7f873475f94919ae45bc03f96r
型号
H01e2b4e47c4e489c8a3e18c91ff27f548 (1)
Model
Capacity（kg）
Power（voltage）
Phase
Lift(Meter）
Chain（Falls）
Load chain（mm）
BCD-825
250
100-200
200-240
1
3
1
6.3
BCD-901
500
100-120
200-240
1
3
1
6.3
BCD-902
1000
100-120
200-240
1
3
2
6.3

1000kg 4
BCD-901 -500kg 3m
