Industrial Electric Gantry Crane for Large Workshop Assembly Lines with Custom Beam Span and High Load Capacity

20 Ton Rail Mounted Gantry Crane with Precision Lifting Mechanism for Logistics, Container Yards And Manufacturing Plants

Hot sale customized Single girder MH type 3 ton 5 ton 10 ton 15 ton 20 ton gantry crane for sale

Industrial Electric Gantry Crane for Large Workshop Assembly Lines with Custom Beam Span and High Load Capacity

Advanced Gantry Cranes with Integrated Safety and Automation for Smart Lifting
Engineered to meet the demands of Industry 4.0, our advanced gantry cranes incorporate intelligent control systems, real-time monitoring, and predictive maintenance features. These systems are particularly beneficial for high-volume operations such as container stacking in ports, large-scale manufacturing lines, wind energy component handling, and steel structure fabrication.

The cranes are designed with high-grade steel to ensure minimal deflection and superior structural integrity. Available with lifting heights from 3 meters up to 25 meters, and spans of up to 35 meters or more, they are capable of handling almost any size load. Core components include low-noise motors, hardened gearboxes, crane rails, cable festoons, safety buffers, and energy-efficient hoists with dual-speed or stepless speed control.

Additionally, all gantry cranes can be equipped with IoT-based diagnostics, overload alarms, sway control systems, and safety interlocks, significantly reducing downtime and operational risks. The smart automation options allow cranes to perform repetitive lift-and-carry cycles autonomously, boosting productivity while reducing labor costs. These innovations make our gantry cranes ideal for modern factories and logistics parks where efficiency, traceability, and uptime are critical.

Model:
MG/MH
Brand:
VOHOBOO

Quantity:
Availability:





Inquire Add to Basket

gantry cranes gantry crane 20 ton gantry crane price hydraulic gantry crane gantry crane 5 ton aluminum gantry crane 2 ton gantry crane gantry cranes 3 ton gantry crane 10 ton shop gantry crane

Product Description

Product Details

Product Parameter

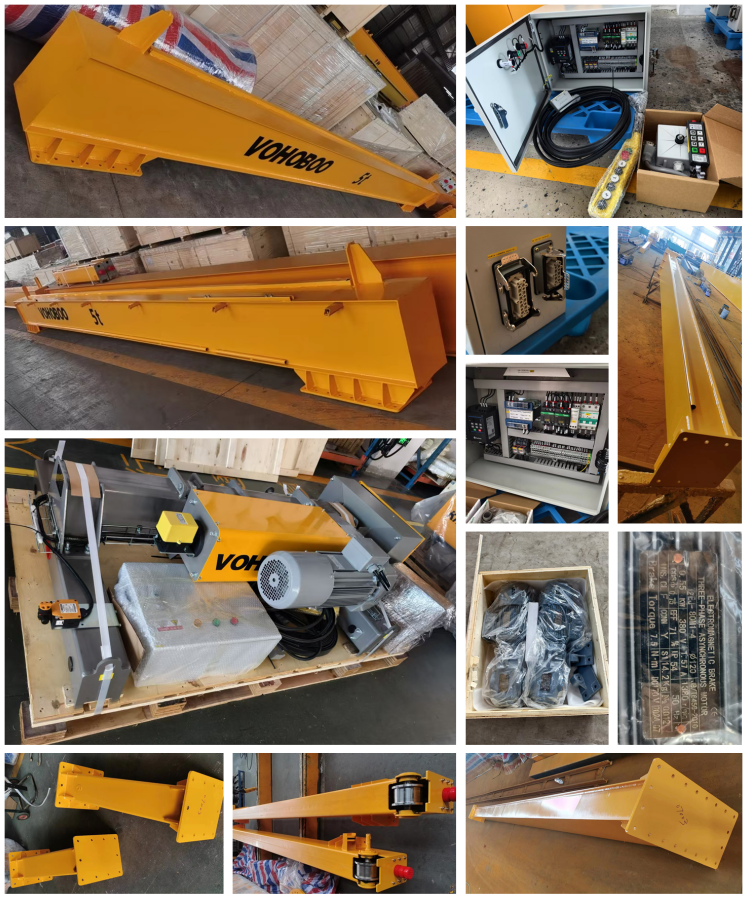

Packing and Shipping

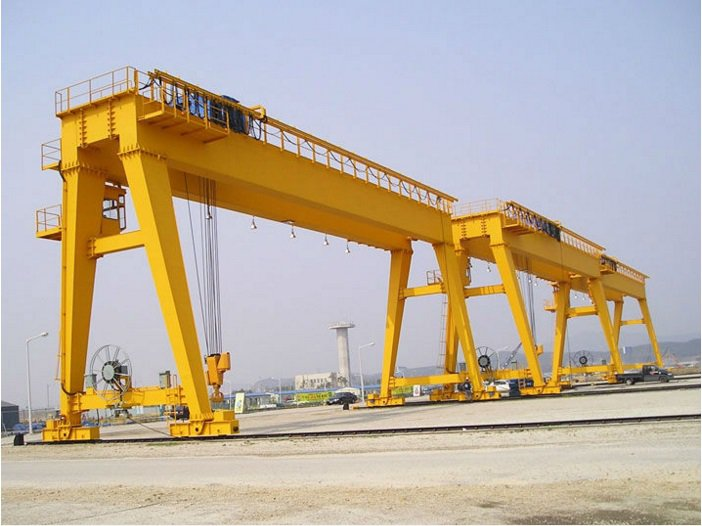

Gantry crane首图3

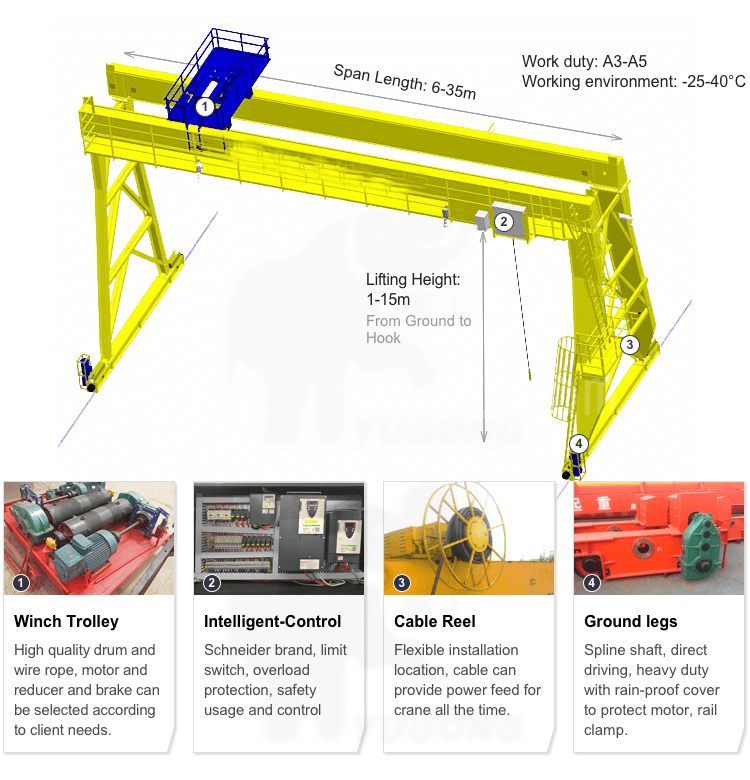

Gantry crane首图4

Product Description：

Versatile Mobile Gantry Crane with Precision Control and Custom Engineering
The mobile gantry crane offers a flexible, space-efficient, and cost-effective solution for lifting and transporting heavy materials, especially in areas where building an overhead crane system is impractical. Designed with modular components, the gantry crane includes:
Steel Main Beam: Heavy-duty I-beam or welded box girder suitable for indoor/outdoor use.
Support Legs & End Carriages: Fabricated with precise alignment for smooth trolley travel and equipped with rail-mounted or rubber tires (RTG) for mobile applications.
Hoisting System: Features a low-headroom electric wire rope hoist or chain hoist, optimized for vertical and horizontal load movement.
Electric Drive Units: High-efficiency motors with planetary gearboxes and VFDs for adjustable speed, minimizing sway and enhancing positioning accuracy.
Control System: User-friendly interface through push-button pendant, radio remote control, or cabin with joystick, all with emergency stop functions and status indicators.
Power Supply Options: Ground-powered via cable reel or diesel generator, and adaptable to battery-powered systems for specific field operations.
With load capacities from 2 tons up to 50 tons, this gantry crane is widely used in machinery assembly, wind turbine blade handling, container lifting, prefabricated component yards, and outdoor storage zones. The structure is treated with anti-corrosion coatings, making it highly weather-resistant and suitable for long-term outdoor use.
Advantages include:
No need for permanent foundations, enabling fast deployment
Easy dismantling and relocation
Multiple configurations (A-frame, U-frame, semi-gantry, cantilevered ends)
Customizable height, span, and load capacity to fit limited space or unique workflow
Whether for temporary use on construction sites or permanent setups in industrial yards, our mobile gantry crane provides exceptional performance, flexibility, and safety assurance for your material handling operations.

Gantry Crane Advantages（1）

Specifications of VOHOBOO Gantry crane
Loading capacity		0.5~32t
lifting height		3~50 m or customiszed
Travling speed		0.3~ 10 m/min
lifting mechanism		Wire rope hoist or electric chain hoist
Working class		A3~A8
Working temperature		-20 ~ 40 ℃
Power supply		AC-3Phase-220/230/380/400/415/440V-50/60Hz
Control voltage		DC-36V
Motor protector class		IP54/IP55
