2 Ton Rotating Column Jib Crane with Reinforced Base Plate for Enhanced Lifting Stability VOHOBOO

Home » Products » Cranes » JIB Crane » 2 Ton Rotating Column Jib Crane with Reinforced Base Plate for Enhanced Lifting Stability VOHOBOO

0.25 to 10 T Jib Crane Light Type Workshop Construction Used 2000kg / 3000kg / 500kg Slewing Arm Crane

3 Ton Column Mounted Jib Crane with Motorized Rotation for Factory Indoor Material Transfer VOHOBOO

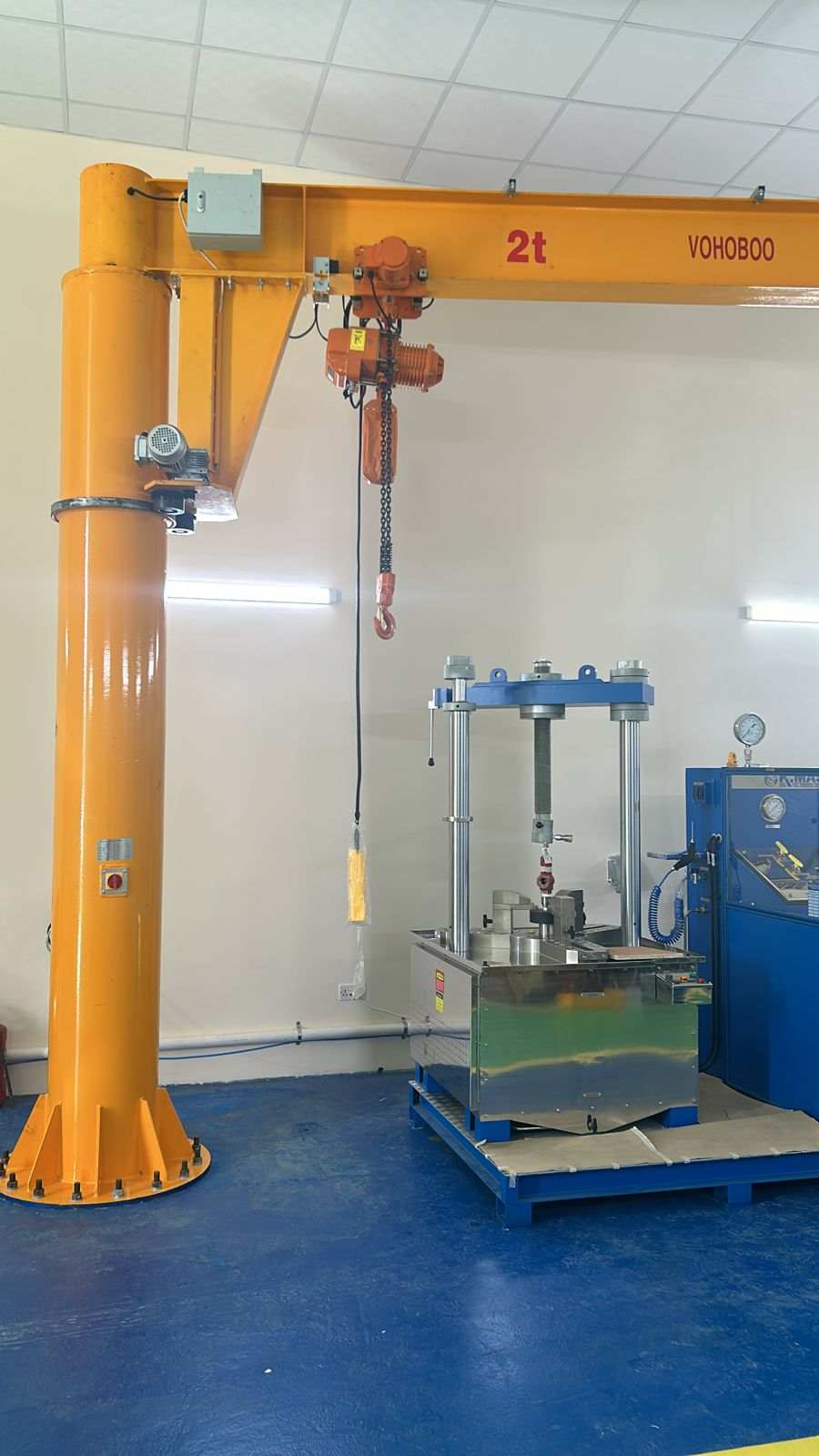

2 Ton Rotating Column Jib Crane with Reinforced Base Plate for Enhanced Lifting Stability VOHOBOO

Space-Saving Jib Crane with Customizable Design Options
Our wall-mounted and freestanding jib cranes are perfect for environments where space is limited but efficient load handling is essential. These cranes can be customized with electric or manual hoists and come with adjustable arm lengths to suit different working radii. Featuring easy installation and low maintenance requirements, they are commonly used for loading/unloading operations, machine servicing, and component assembly. The compact footprint and robust construction make them suitable for integration into production lines or isolated workstations, helping streamline workflows and reduce operator fatigue.

We can recommend different models of cranes according to different working requirements. This kind of machine has two types of manipulation: electric and manual operation. Rotary arm rotation angle can be chosen from 180 °, 270 °, 345 °, 360 ° according to client’s usage.

Brand:
VOHOBOO

Quantity:
Availability:





Inquire Add to Basket

jib crane 2 ton jib crane 3 ton jib crane crane jib jib crane 3 ton electric crane affordable jib crane rotating jib crane cantilever crane jib crane construction

Product Description

Product Details

Product Parameter

Packing and Shipping

ed1de0a852d456722130ec99c286a28d

Comprehensive Overview of Industrial Jib Cranes for Material Handling

Jib cranes are versatile and highly efficient lifting solutions designed to improve material handling across a wide range of industrial environments. Available in multiple configurations such as floor-mounted (pillar type), wall-mounted, wall-travelling, and tie-rod supported cantilever designs, jib cranes are engineered to accommodate different spatial and operational requirements. Their lifting capacity typically ranges from 0.125 ton to 5 tons, with customized options available for special applications.

A key feature of jib cranes is their slewing arm, which can rotate from 180° to 360°, allowing operators to easily maneuver loads within a circular or semi-circular workspace. Depending on the model, rotation can be manual or motorized, and jib arms can be fixed or adjustable in length. The cranes can be equipped with electric chain hoists or wire rope hoists, and are compatible with various lifting accessories for enhanced flexibility.

Jib cranes are widely used in machine shops, assembly lines, loading docks, warehouses, shipyards, garages, and maintenance bays. Their ability to be installed independently or as a supplementary lifting solution in conjunction with overhead cranes makes them ideal for localized or repetitive lifting tasks. Built with robust steel construction, surface-treated for corrosion resistance, and designed with operator safety in mind, jib cranes offer a cost-effective and ergonomic solution for reducing manual handling, improving workflow efficiency, and enhancing workplace safety.

HTB1pJ8nib1YBuNjSszhq6AUsFXaH
H9a5c62af258b47ab94f05f3ab0c6dd18C
JIB Crane-Details(1)

Lift capacity(T)			1, 2, 3, 5, 10, 16, 20
Span(M)			7.5-22.5
Mechanism traveling	speed(m/min)		10, 20, 30	45, 60
	motor	type	ZDY1 21-4	ZDR12-4
		power(kw)	2*0.8	2*1.5
		speed(r/min)	1380	1380
Electric chain hoist or wire rope hoist		model	CD1/MD1/HHBB
		lift height(m)	3-25
		traversing speed(m/min)	20,30 or can be customized
		lifting speed(m/min)	8(7); 8/0.8(7/0.7)
Workclassfication			A3-A5
Power supply			380V/50HZ or on request
