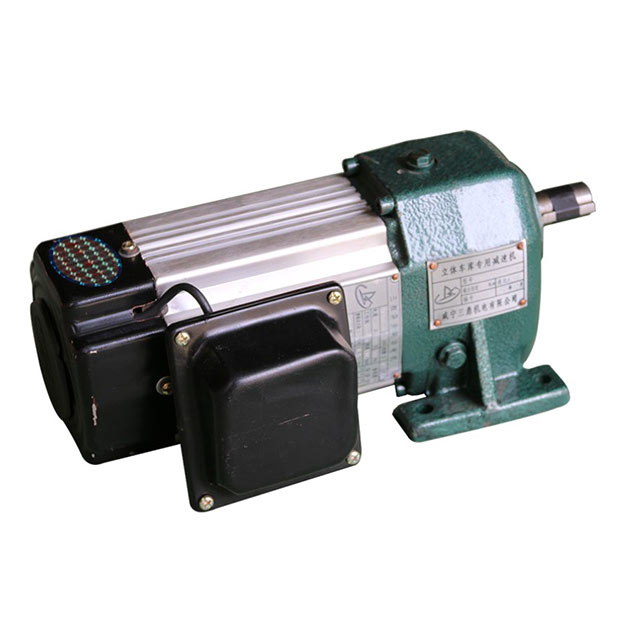

Traveling Motor for Car Parking System

CK Series deceleration brake motor is designed to supply power for the lifting and moving of car parking system.

Model:
CK- PY travel motor
Brand:
Vohoboo
Motor Rotor: cylindrical squirrel cage rotor
Motor type: car lifting system motor
Friction plate: non-asbestos friction plate

Quantity:




Inquire Add to Basket

smart car parking system motor motor Car parking traveling system motor automated car parking system motor portable car parking system motor

Product Description

Technical parameters

Operating Conditions

CK-PY series motor for the moving of car parking system

1. Travel Motor Features:
1.1 The deceleration motor integrated speed reducer, motors, electromagnetic brake, optimized design, compact structure, small size and light weight.
1.2 The speed reducer’s gear adopts hard-surface gear, with grinding process, so the whole driver with low noise and smooth operation.
1.3 Speed reducer has been lubricated by gear grease.

2. Motor Features:
2.1 Motor housing is made of aluminum, beautiful appearance, excellent heat elimination.
2.2 Motor has a large starting and limit torque, lower starting current, high power density.
2.3 The motor adopts cylindrical squirrel cage rotor, small size, light weight, simple control, easy maintenance, high reliability.
2.4 Protection class IP54, insulation class F.
2.5 Standard working system: S2-10min.
2.6 Mounting type B3.

3. Electromagnetic brakes features:
3.1 Electromagnetic brake power is AC220V, half-wave rectification DC96V.
3.2 Brake is with double-sided safe braking. Reliable performance, high closing rate.
3.3 Automatic braking when power off, safety braking and without vibration.
3.4 Friction plate is imported non-asbestos friction plate, less wear, long lifespan (approx. one million times braking before the first maintenance)
II.Operating Conditions:
1. Standard electric system: rated voltage 380V, rated frequency 50Hz (other voltage and frequency can be customized)
2. Altitude ≤1000 meters, -15 ℃ ≤ ambient temperature ≤40 ℃, relative humidity ≤85%. The working environment should be no explosion dust and non-corrosive.
3. No rain and exposure , outdoor use should be packed with protective cover.
4. Motor should connect ground line, please refer to the power distribution regulations.
5. Please check whether the motor damped or not before using. Use a 500-volt megohmmeter to measure the insulation resistor, the resistor should not be less than 0.5 megohms). Or should dry the motor. The drying temperature should not exceed 80 ℃.
6.Before the motor installed on the device, please make sure the whole system has good and stable operating characters in the unloaded test.

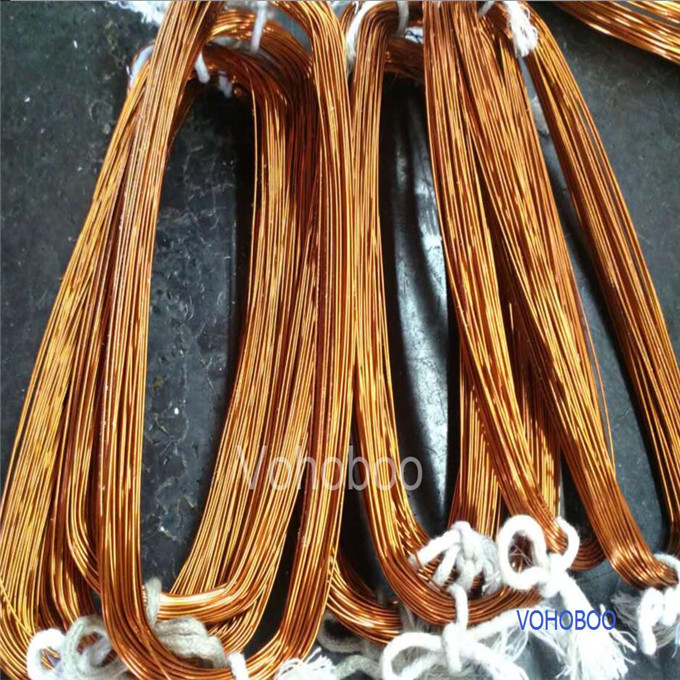

Vohoboo motor advantages:
1. Aluminum housing: fast heating radiation comparing iron casting housing.
2. Germany imported non-asbestos friction plate: environmental protection, small erosion, long lifespan( approx. one million times braking before the first maintenance).

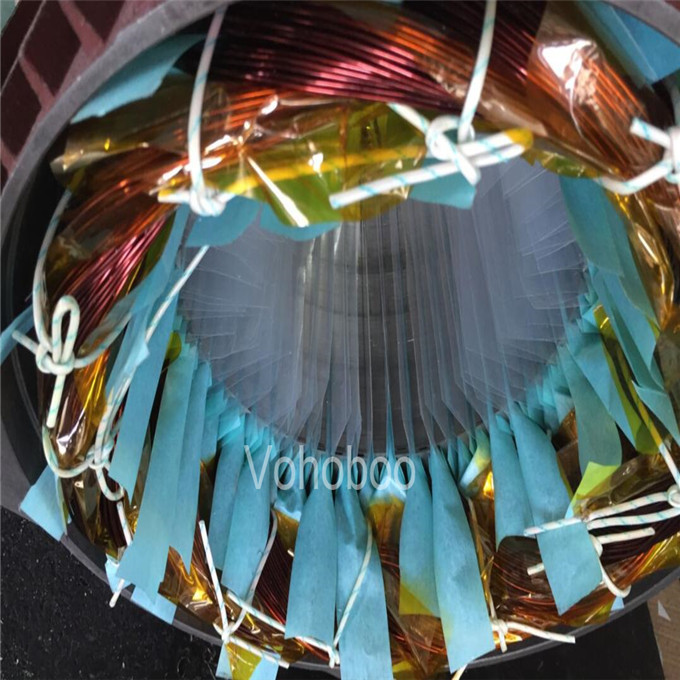

3. China top quality silicon steel sheet iron core(used for stator and rotor).
4. Cold rolling silicon steel sheet: not hot rolling, which can reduce motor heat.
6. Professional testing equipment to test motor before delivery: 3 minutes high voltage testing, voltage reduction 15% testing, ground pressure testing...

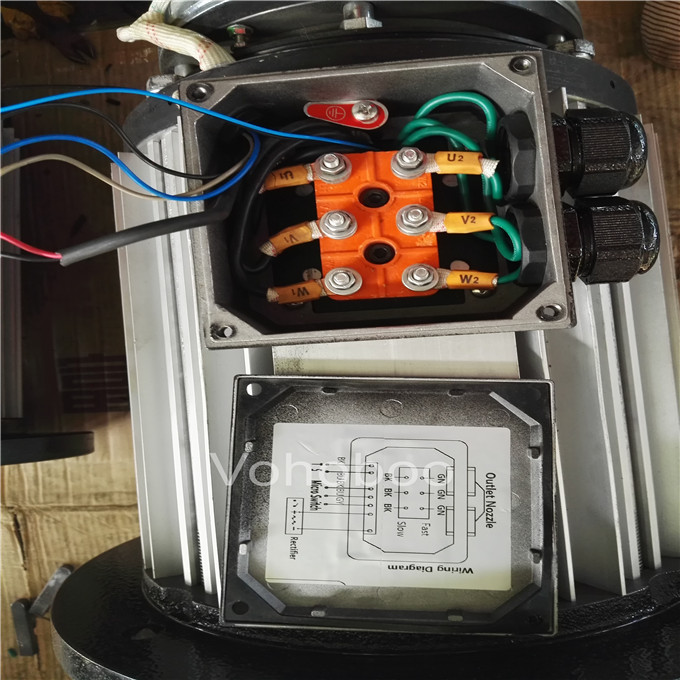

Motor wiring diagram (brake forbidden connect to frequency power supply)

1> 0.2kw car parking system motor:

Technical parameter				Speed reducer feature			Brake feature
Power	0.2kw	quote	S2-15min	Reduction ratio	1/43	1/51	Static braking torque	4N.m
Voltage	380V	Pole number	4P	Actual speed ratio	1/43.6	1/51	Rectification voltage	AC220V
Frequency	50HZ	Protection class	IP54	Torque N.m	43	54	Braking voltage	DC96V
Currency	8.5A	cover	Aluminum alloy	Output rational speed	30.7	26	Braking currency	0.98A
Rotation speed	1340r/min			Output shaft diameter	Ø22mm		Release time	0.15S

Technical parameter				Speed reducer feature				Brake feature
Power	0.2kw	quote	S2-15min	Reduction ratio	1/43	1/51	1/72	Static braking torque	4N.m
Voltage	380V	Pole number	4P	Actual speed ratio	1/43.6	1/51	1/71.6	Rectification voltage	AC220V
Frequency	50HZ	Protection class	IP54	Torque N.m	43	54	73	Braking voltage	DC96V
Currency	8.5A	cover	Aluminum alloy	Output rational speed	30.7	26	19.5	Braking currency	0.22A
Rotation speed	1400r/min			Output shaft diameter	Ø22mm			Release time	0.15S

2> 0.4kw car parking system motor:

Technical parameter				Speed reducer feature			Brake feature
Power	0.4kw	quote	S2-15min	Reduction ratio	1/43	1/51	Static braking torque	4N.m
Voltage	380V	Pole number	4P	Actual speed ratio	1/43.6	1/51	Rectification voltage	AC220V
Frequency	50HZ	Protection class	IP54	Torque N.m	86	102	Braking voltage	DC96V
Currency	1.2A	cover	Aluminum alloy	Output rational speed	28.6	26	Braking currency	0.22A
Rotation speed	1320r/min			Output shaft diameter	Ø22mm		Release time	0.15S

Technical parameter				Speed reducer feature			Brake feature
Power	0.4kw	quote	S2-15min	Reduction ratio	1/43	1/51	Static braking torque	4N.m
Voltage	380V	Pole number	4P	Actual speed ratio	1/43.6	1/51	Rectification voltage	AC220V
Frequency	50HZ	Protection class	IP54	Torque N.m	86	102	Braking voltage	DC96V
Currency	1.2A	cover	Aluminum alloy	Output rational speed	28.6	26	Braking currency	0.22A
Rotation speed	1320r/min			Output shaft diameter	Ø22mm		Release time	0.15S

Please specify the model (or advise where the motor will be used on), rated power, rated voltage, rated frequency, installation way, protection class, insulation class etc. Any special requirement can be customized!

Operating Conditions:

1. Standard electric system: 380V, 50Hz (other voltage and frequency can be customized)

2. Altitude ≤1000 meters, -15 ℃ ≤ ambient temperature ≤40 ℃, relative humidity ≤85%. The working environment should be no explosion dust and non-corrosive.

3. No rain and exposure , outdoor use should be packed with protective cover.

4. Moto should connect ground line, please refer to the power distribution regulations.

5. Please check whether the motor damped or not before using. Use a 500-volt megohmmeter to measure the insulation resistor, the resistor should not be less than 0.5 megohms). Or should dry the motor. The drying temperature should not exceed 80 ℃.

6.Before the motor installed on the device, please make sure the whole system has good and stable operating characters in the unloaded test.
