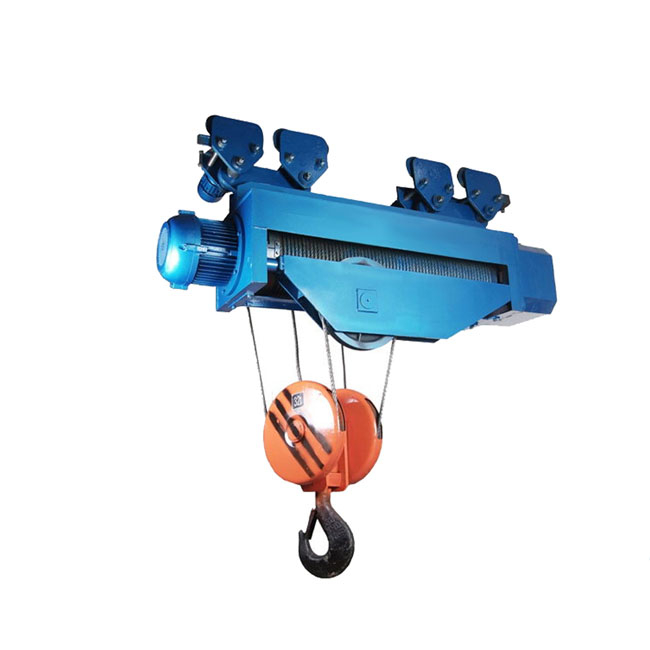

Ex-proof Electric Hoist

Model ex-proof hoist is ideal hoisting equipment for services in explosive gas atmospheres formed by flammable gas, vapor and air.
Quantity:
Inquire Add to Basket

  • Vohoboo

  • Accepted

  • Wire Rope

  • CE, ISO

This series hoist is designed and built in compliance with the national standard GB3836.1 “Explosive atmospheres Part 1 : Equipment – General Requirements” and GB3836.2 “Electrical Apparatus for explosive gas atmospheres Part 2: General requirements Flame proof electrical apparatus d’”, with Ex-mark “dⅡBT4,d Ct4”.

Model   BCD0.5t BCD1t BCD2t
Capacity t 0.5 1 2
Lifting height m 6 9 12 18 6 9 12 18 24 30 6 9 12 18 24 30
Lifting speed m/min 8 8 8
Running speed m/min 20 20 20
Motor power kw 0.8 1.5 3
Running motor power kw 0.2 0.2 0.4
Gross weight   kg 145 155 165 185 155 170 185 215 245 275 310 330 350 390 430 470

Model   BCD3t BCD5t BCD10t
Capacity t 3 5 10
Lifting height m 6 9 12 18 24 30 6 9 12 18 24 30 6 9 12 18 24 30
Lifting speed m/min 8 8 7
Running speed   m/min 20 20 12
Motor power kw 4.5 7.5 13
Running motor power kw 0.4 0.8 0.5
Gross weight kg 350 380 410 470 500 530 580 610 630 690 730 780 1100 1160 1240 1350 1480 1560
