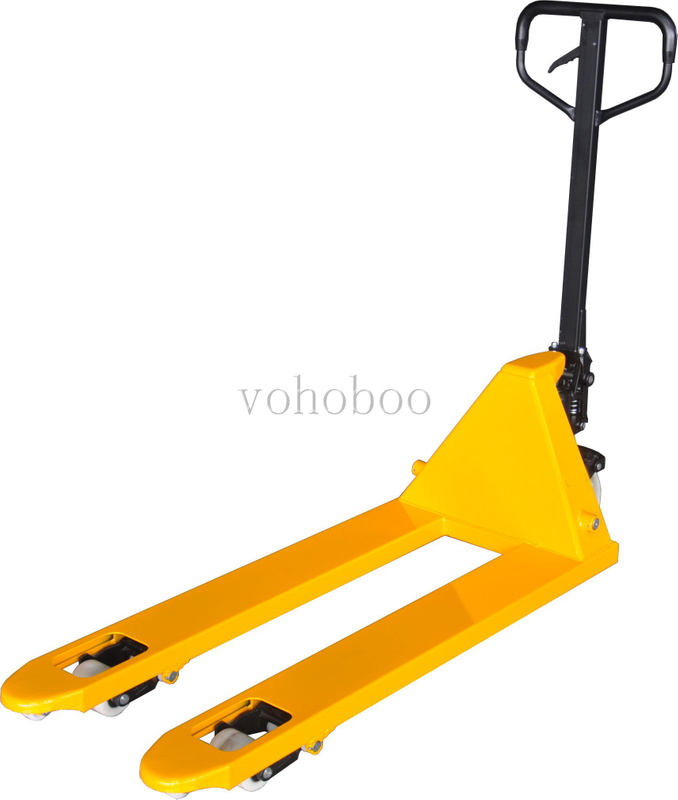

Hydraulic hand pallet truck

The hand pallet jack/hand pallet truck is an ideal handing partner for all manual transport tasks over short distances, excellently suitable for use on lorries, in small warehouse and markets etc.
Quantity:
Inquire Add to Basket

  • VH

  • Vohoboo

  • Hand

  • 550mm/685mm

  • 2000/2500/3000 / 5000 kgs

  • all accept

1.  Brief Introduction of Hand Pallet Truck
Introduction: Hand pallet truck which is combined with small volume hydraulic device, handle, fork, and wheels.  Used for moving mechanical equipment by Human power, Internal relief valve to provide overload protection, to avoid overload use, reduce maintenance costs.

Usage: carrying fork into the tray hole, to drive the hydraulic system to achieve the pallet cargo lifting and falling, and by the human power to complete the transfer operation. It is the easiest, most effective and most common handling and handling tool for pallet conveyors.

  1.  Application
Hand pallet truck  is widely used in logistics, warehouses, factories, hospitals, schools, shopping malls, airports, sports venues, station airports and so on.
vohoboo- hand pallet truck application

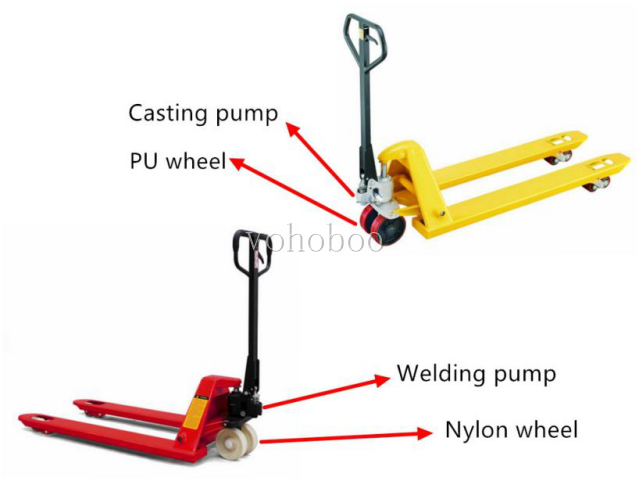

3.  Hand pallet truck details show :

PU Wheel:  high quality Polyurethane wheel , Red color

Nylon Wheel: white color, durable wheel

Casting pump:  whole type oil pump, it is  casted in one time, white color

Welding pump:  Separate  type oil pump,  Black color
pallet truck wheel type

4. Hand Pallet Truck Parameter s:
Hand Pallet Truck Technical Parameters
Model VH-2 VH-2.5 VH-3 VH-5
Capacity (kg) 2000 2500 3000 5000
Min. fork height (mm) 75
Max. fork height (mm) 195
Max. lifting height (mm) ≧110
Width overall fork (mm) 550 685
Fork length (mm) 1200
Fork size (mm) 150*55 160*60
Loading wheel (mm) 80*70
steering wheel (mm) 180*50
Net weight (kg) 68 73 80 130

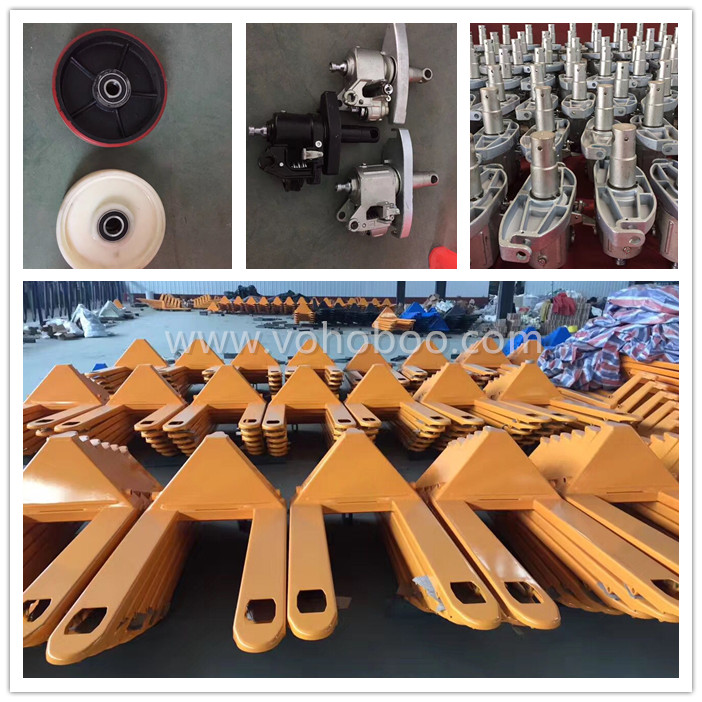

5: Factory show
pallet truck factory

6.  SERVICE AND ADVANTAGES
1. Prompt reply for inquiry within 24 hours.
2. One on one service guarantees you the best purchasing experience.
3. Fast deliver time and guarantee quality.
4. The pump,bearing,handle and wheel we used are the top quality  in China.
5.We offer competitive price with top quality to increase our partner’s competition
advantages in the market.
6.Hand Pallet Trucks with scale, all color and galvanization are optional.
