Single girder overhead traveling crane motor

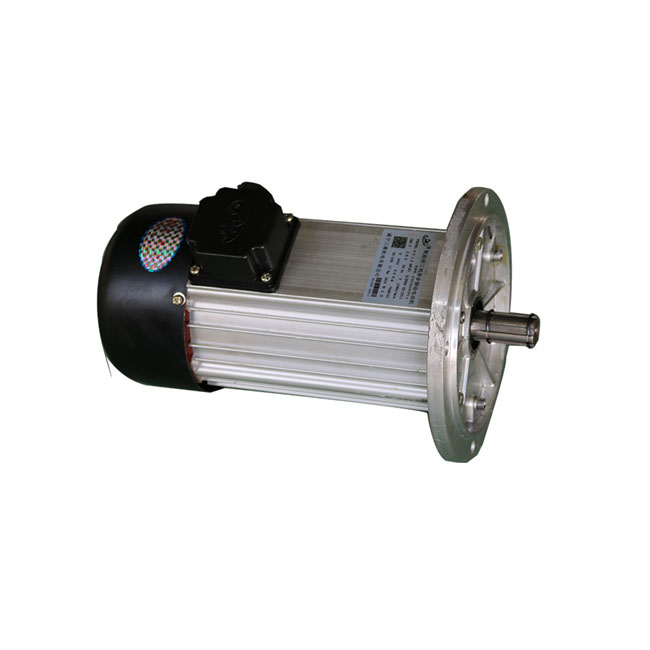

YDSE series double-rotor soft start three-phase asynchronous brake motor, is new design brake motor especially for the working of cranes lifting equipment. YDSE is double speed, crane travel motor.

Model:
YDSE Series
Brand:
VOHOBOO
Type: crane travel motor
Power Supply: 380V, 50HZ /customized
Protection class: IP54 or customized
Insulation class: F or customized
Mounting type: B5/B3
Poles: 2, 4, 6 or 8 poles

Quantity:




Inquire Add to Basket

Crane Motor overhead crane motor Single girder crane motor Crane motor for Single girder overhead traveling crane motor

Product Description

FAQ and Features

YDSE motor can be the power of electric single girder, double girder hoists and gantry cranes lifting equipment traveling mechanism, also suitable for the power of single girder electric hoist traveling system.

YDSE series ( double-speed) motor main technical parameters:

Model	Rated Power (KW)	Torque (N·m)	Rated current (A)	Synchronous Speed(r/min)	Brake Torque (N·m)	Exciting voltage (V)	Weight (kg)
YDSE90S-4/6	0.8/0.6	8.5	5.6/3.6	1500/1000	2－10	——	15
YDSE90L-4/6	1.1/0.8	12	8.2/5.0	1500/1000	2－10	——	18
YDSE100L-4/6	2.2/1.5	20	12/6.8	1500/1000	3－20	AC380	37
YDSE112M-4/6	3.0/2.2	30	15/9.5	1500/1000	3－30	AC380	55
YDSE132S-4/6	4.0/3.0	40	23/14	1500/1000	10－40	AC380	80
YDSE132M-4/6	5.5/4.0	50	29/20	1500/1000	10－40	AC380	95
YDSE160M-4/6	7.5/6.5	75	45/33	1500/1000	20－50	AC380	150
YDSE160L1-4/6	11/9	110	58/36	1500/1000	20－50	AC380	160
YDSE90S-4/8	0.4/0.2	5	2.8/2.8	1500/750	2－10	——	15
YDSE90L-4/8	0.8/0.4	8	4.0/3.5	1500/750	2－10	——	18
YDSE100L1-4/8	1.5/0.8	16	7.0/6.0	1500/750	3－20	——	33
YDSE100L2-4/8	2.2/1.1	20	9.0/7.0	1500/750	3－20	——	37
YDSE112M-4/8	3.0/1.5	30	12.8/10.2	1500/750	3－30	——	51
YDSE132S-4/8	4.0/2.0	40	19.5/15.5	1500/750	10－40	AC380	80
YDSE132M-4/8	5.5/2.8	55	25/19	1500/750	10－40	AC380	95
YDSE160M1-4/8	7.5/3.8	75	40/24	1500/750	20－50	AC380	100
YDSE160M2-4/8	11/5.5	110	65/35	1500/750	20－50	AC380	150
YDSE90L-4/12	0.4/0.13	4	2.3/2.3	1500/500	2－10	——	18
YDSE100L-4/12	0.8/0.26	8	3.8/2.7	1500/500	3－20	——	37
YDSE112M-4/12	1.5/0.5	16	8.0/4.2	1500/500	3－30	——	51
YDSE132S-4/12	3.0/1.0	30	15/8.0	1500/500	10－40	AC380	81
YDSE132M-4/12	4.0/1.3	40	17.5/9.2	1500/500	10－40	AC380	95
YDSE160M-4/12	5.5/1.8	52	25/12	1500/500	20－50	AC380	160
YDSE160L-4/12	7.5/2.5	74	44/15.5	1500/500	20－50	AC380	170
YDSE100L-4/16	0.4/0.1	3	2.4/2.5	1500/375	2－10	——	45
YDSE112M-4/16	0.8/0.2	6	3.5/3.4	1500/375	3－20	——	51
YDSE132S-4/16	1.5/0.4	16	9.0/5.5	1500/375	3－30	AC380	81
YDSE132M-4/16	2.2/0.55	23	11/7.0	1500/375	10－40	AC380	95
YDSE160M1-4/16	3.0/0.8	31	16.5/7.2	1500/375	10－40	AC380	100
YDSE160M2-4/16	5.5/1.5	58	29/17	1500/375	20－50	AC380	150
YDSE180M-4/16	7.5/2.0	78	33/26	1500/375	20－60	AC380	190

YDSE series double rotor soft start three phase asynchronous brake motor shape and installation dimensions
1. Motor shape and installation size(B5 installation size-flat key) unit:mm
YSE1参数图

2. Motor shape and installation size(B5 installation size-multiple key-platelet) unit:mm

Size Seat No.	D1	D2	M	4-S	D3	E	R	L	L1	L2	L3	H	P
YSE801	φ110	φ75h7	φ90	φ7	φ165	25	15	370	22	4	10	150	4D-15f9×12b12×4d11
YSE802	φ140	φ100h7	φ120	φ9	φ165	25	15	410	22	4	10	150	6D-20f9×16b12×4d11
YSE90S	φ140	φ100h7	φ120	φ9	φ165	28	20	445	24	4	12	155	6D-20f9×16b12×4d11
YSE90L	φ140	φ100h7	φ120	φ9	φ165	28	20	465	24	4	12	155	6D-20f9×16b12×4d11
YSE100L	φ140	φ100h7	φ120	φ9	φ205	28	20	490	24	4	14	180	6D-20f9×16b12×4d11
YSE112M	φ140	φ100h7	φ120	φ9	φ230	28	20	520	24	4	14	190	6D-20f9×16b12×4d11

Motor shape and installation size(B5 installation size-multiple key-grail) Unit:mm

Size Seat No.	D1	D2	M	4-S	D3	E	R	L	L1	L2	L3	H	P
YSE802-D	φ220	φ180h7	φ200	φ11	φ165	35	13	328	30	3.5	10	150	6D-25f9×22b12×6d11
YSE90S-D	φ220	φ180h7	φ200	φ11	φ165	35	13	358	30	3.5	10	155	6D-25f9×22b12×6d11
YSE90L-D	φ220	φ180h7	φ200	φ11	φ165	35	13	378	30	4	12	155	6D-25f9×22b12×6d11
YSE100L-D	φ220	φ180h7	φ200	φ11	φ205	35	13	465	30	4	12	155	6D-25f9×22b12×6d11
YSE100L-D (Enlarge)	φ330	φ250h7	φ286	φ13	φ205	41	15	473	36	4	12	155	6D-25f9×22b12×6d11
YSE112M-D	φ250	φ180h7	φ215	φ15	φ230	35	14	495	30	4	15	180	6D-28f9×24b12×6d11

Any special requirement can be customized!

FAQ of Motors:

1) Where the motor will be used ? crane, hoist or other machines?

2) Rated power, rated voltage, rated frequency, speed

3) Reference work system：S3, S4?

4) Installation way: B5? B3?

5) Protection class: we standard IP54? IP55? ( or can be customized according to your request)

6) insulation class --we standard F( or can be customized according to your request)

7) Mounting Size?
If the standard size is not suitable for you, we can customize according to your drawings.

Features &Advantage:

1. Aluminum housing: fast heating radiation comparing iron casting housing.

2. Germany import non-asbestos friction plate: environmental protection.

3. China top quality silicon steel sheet iron core(used for stator and rotor).

4. Cold rolling silicon steel sheet: not hot rolling, which can reduce motor heat.

5. F class insulation paper and insulation paint for copper wire, which can withstand high temperature.

6. Especial and professional testing equipment before delivery: 3 minutes high voltage testing, voltage reduction 15% testing, ground pressure testing..

Operating Conditions:
1, Power supply: 50 ± 1% Hz, 380 ± 10%; -15 ℃ ≤ ambient temperature≤45 ℃. relative air humidity ≤85%, The working environment should be no explosion dust and non-corrosive.

2. Protection class IP54, insulation class F.

3. Work quota is S3-25%, 120 times per hour.

4. No rain and exposure , outdoor use should be packed with protective cover.

5. Motor should connect ground line, please refer to the power distribution regulations.

6. Before the motor installed on the device, please make sure the whole system has good and stable operating characters in the unloaded test.

7. After the driver installed on the device, please fill gear oil according to the note that posted on the driver.

8. Automatic braking when power off.
7. All of motors with cylinder squirrel-cage rotor, which is Start steady than coning rotor.
