How to Choose Between Electric Chain Hoists and Wire Rope Hoists?

How to Choose Between Electric Chain Hoists and Wire Rope Hoists?

Selecting the right lifting equipment is a critical decision that impacts your facility's safety, efficiency, and long-term operational costs. At the heart of this choice is the classic debate: Electric Chain Hoist vs. Electric Wire Rope Hoist.

While both serve the primary purpose of vertical lifting, they are engineered for different duty cycles, capacities, and environments. This guide breaks down the key differences to help you make an informed investment.

1. Lifting Capacity: Heavy-Duty vs. Compact Power

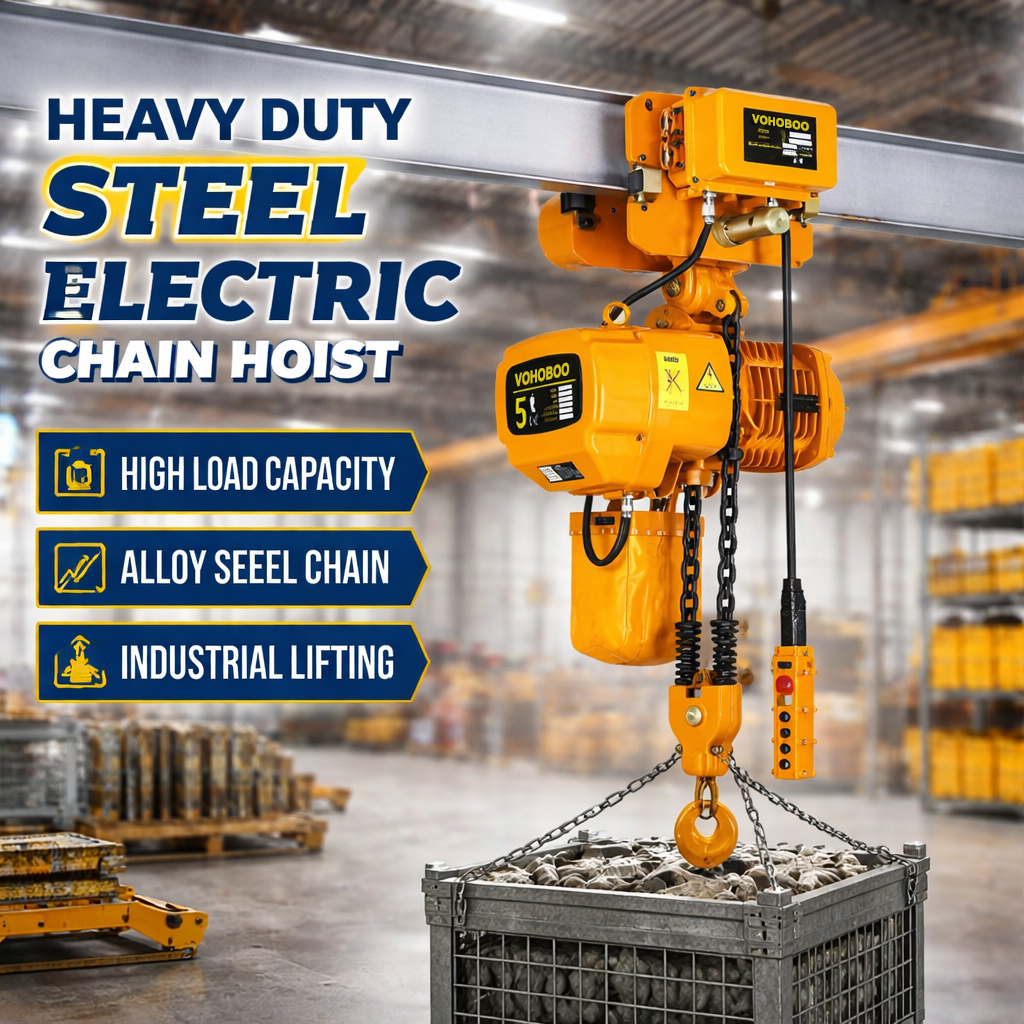

Electric Chain Hoists (HHBB Series): Generally ideal for capacities ranging from 0.5T to 5T. While they can handle up to 25T, they excel in applications requiring frequent, shorter lifts of smaller to medium-sized loads.

Wire Rope Hoists (VHB Series): These are the workhorses for heavy-duty lifting, typically starting from 2T and reaching up to 80T or more. If your operation involves moving massive steel structures or heavy machinery, wire rope is the standard choice.

2. Duty Cycle and Work Intensity

Chain Hoist: Best for moderate duty cycles. They are perfect for workstations, assembly lines, and maintenance shops where the hoist isn't running 24/7.

Wire Rope Hoist: Designed for high duty cycles (Class M5, M6). European-type wire rope hoists, in particular, feature advanced motors with superior heat dissipation, making them suitable for high-intensity, continuous operation in large-scale factories.

3. Precision and Smoothness

Chain Hoist: Because the chain fits into pocket wheels, there can be a slight "pulsation" or vibration during the lift. This is usually negligible for general lifting but might be a factor for extremely delicate positioning.

Wire Rope Hoist: Offers exceptionally smooth and steady lifting. The rope winds onto a drum, allowing for high-precision movement, which is essential for positioning heavy components in machining or mold-making.

4. Space and Headroom Considerations

Chain Hoists: Feature a very compact design. If your factory has low ceilings or limited workspace, a chain hoist's small footprint is a major advantage.

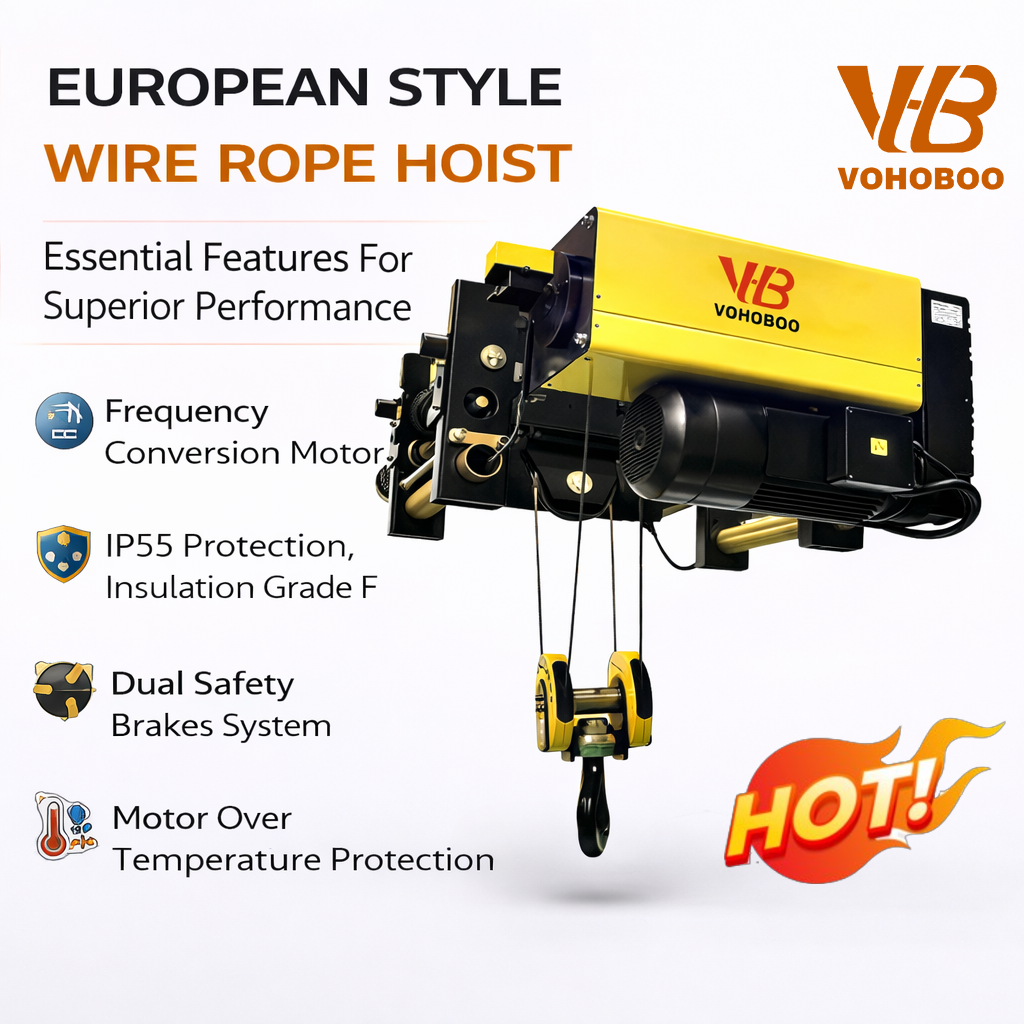

Wire Rope Hoists: Historically bulkier, but European-type wire rope hoists have revolutionized this with a low-headroom design that maximizes the effective lifting height even in constrained spaces.

Quick Comparison Table

Final Verdict: Which one should you buy?

Choose an Electric Chain Hoist if:

You have limited space or low headroom.

You are lifting loads under 5 tons.

You need a portable or flexible solution for multiple workstations.

Budget is a primary concern for light-to-medium tasks.

Choose a Wire Rope Hoist if:

You are lifting heavy loads (over 5-10 tons).

You require high-speed lifting and continuous, intense work cycles.

You need maximum precision and stability for delicate materials.

You are equipping a large-scale industrial gantry or overhead crane system.
