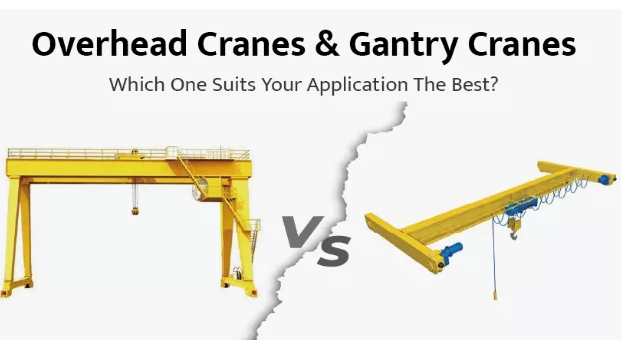

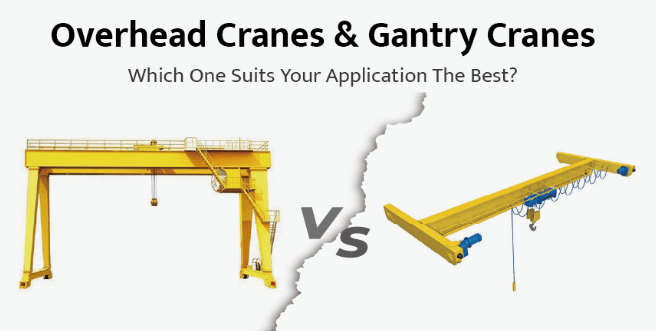

Overhead Cranes Vs. Gantry Cranes: How To Choose The Best Solution for Your Application

In the field of industrial material handling, cranes are indispensable equipment, widely used in scenarios such as workshops, warehouses, ports, and construction sites. Among them, Overhead Cranes and Gantry Cranes are two of the most common types, each with unique advantages and suitable applications. So, which one is better suited for your specific needs? This article provides a comprehensive overview, covering definitions, structure, application scenarios, advantages, and selection factors to help you make an informed decision.

What is an Overhead Crane?

An Overhead Crane, also known as a bridge crane, is a lifting device fixed to the building structure above. It mainly consists of a bridge, a hoist trolley, bridge travel mechanisms, and trolley travel mechanisms. The bridge spans the work area and moves along runways, while the hoist trolley travels laterally along the bridge to lift and move materials. Overhead cranes are typically used indoors, such as in factory workshops, warehouses, and assembly lines, with lifting capacities ranging from a few tons to several hundred tons.

The key advantages of overhead cranes are their high efficiency and space utilization. Installed overhead, they do not occupy floor space, making them ideal for high-intensity material handling in limited areas. Furthermore, overhead cranes operate smoothly and with high precision, suitable for precision assembly or heavy-duty manufacturing industries. Common types include single-girder and double-girder overhead cranes, with the latter being used for heavier applications.

What is a Gantry Crane?

A Gantry Crane, also called a portal crane, is a lifting device with a gantry-shaped structure. It consists of legs, a crossbeam, and a hoist trolley. The legs are usually mounted on ground rails or tires, allowing the entire crane to move. Gantry cranes are commonly used outdoors or in large-span areas, such as ports, storage yards, construction sites, and railway freight terminals. Their lifting capacity is generally large, capable of handling super-heavy or oversized items.

The main advantages of gantry cranes are their flexibility and mobility. As they do not rely on building support and can be installed and moved independently, they are highly suitable for temporary projects or sites requiring frequent adjustments. Gantry cranes can be designed with adjustable spans to fit different work areas, and some models are self-propelled, enhancing operational efficiency. However, they typically require more ground space and may have higher installation costs.

Key Differences Between Overhead Cranes and Gantry Cranes

To choose the most suitable crane, it's essential to understand the core differences between the two:

Structure & Installation: Overhead cranes rely on the building structure, installed on overhead runways, saving floor space but requiring robust support. Gantry cranes are independent of buildings, moving via ground rails or tires, offering more flexible installation but occupying ground area.

Application Scenarios: Overhead cranes are more suitable for indoor, fixed operations, such as part handling within a workshop or production lines. Gantry cranes are ideal for outdoor or temporary sites, like container handling at ports or material lifting on construction sites.

Mobility & Span: The movement range of an overhead crane is limited by the runway length, usually with a smaller span. Gantry cranes can be designed as large-span structures and can even be relocated to different sites, offering greater adaptability.

Cost & Maintenance: The initial installation cost of an overhead crane might be lower, but it requires regular inspection of the building structure. Gantry cranes may have higher installation and maintenance costs but are easier to adjust and expand in the long run.

Lifting Capacity & Efficiency: Both can handle heavy loads, but gantry cranes have an advantage in moving super-heavy items, while overhead cranes perform better in high-speed, precision operations.

How to Choose the Right Crane for Your Application?

Choosing between an Overhead Crane and a Gantry Crane requires a comprehensive consideration of the following factors:

Work Environment: If your workplace is indoors with limited space, an overhead crane is ideal. For outdoor sites or areas requiring mobility, a gantry crane is more suitable.

Lifting Requirements: Evaluate the weight, size, and frequency of handling. For light to medium loads with high frequency, overhead cranes are more efficient. For super-heavy, oversized items, gantry cranes hold the advantage.

Budget & Installation Time: Overhead cranes are typically installed faster, suitable for projects with limited budgets needing quick deployment. While the initial investment for gantry cranes might be higher, their flexibility can reduce overall costs in the long term.

Safety & Compliance: Ensure the crane complies with local safety standards. For instance, overhead cranes require consideration of building load capacity, while gantry cranes need attention to ground stability.





Future Scalability: If your business might expand or the site might change, the mobility of gantry cranes offers greater flexibility.

Real-World Application Cases

Manufacturing Workshop: An automotive manufacturing plant uses a double-girder overhead crane for engine hoisting, improving production efficiency and safety.

Port Logistics: An international port utilizes large gantry cranes for container handling, enabling rapid loading, unloading, and stacking, thus optimizing logistics.

Construction Project: In bridge construction, gantry cranes are used for lifting prefabricated components, with their mobility ensuring project progress.

Conclusion

Both Overhead Cranes and Gantry Cranes are core equipment in the material handling sector. The choice depends on your specific application needs. Overhead Cranes excel in efficiency and space savings, ideal for indoor, fixed operations. Gantry Cranes offer advantages in flexibility and large spans, suitable for outdoor and dynamic environments. By thoroughly evaluating your work scenario, lifting requirements, budget, and safety factors, you can select the most appropriate crane solution for your business.
