Comprehensive Guide to Electric Chain Hoists — Types, Features, and Industrial Applications

In today’s fast-paced industrial environments, electric chain hoists have become indispensable tools for lifting and transporting heavy loads with ease, precision, and safety.
Unlike traditional manual hoists, electric chain hoists offer efficient power operation, compact design, and adaptability across a wide range of industries.
From small workshops to large manufacturing plants, these hoists ensure reliable lifting while reducing labor intensity and operational risks.

1. What Is an Electric Chain Hoist?
An electric chain hoist is a type of electric-powered lifting equipment that uses a chain as the lifting medium instead of a wire rope. It is designed for lifting, lowering, and moving heavy loads vertically or horizontally with minimal effort.

Key components include:
- Motor and gearbox – provide power and control lifting speed.
- Load chain and hook – transmit and bear the lifting load.
- Load limiter and brake system – ensure safety and prevent overload.
- Control pendant or remote control – allow smooth operation and precision control.

2. Major Types of Electric Chain Hoists

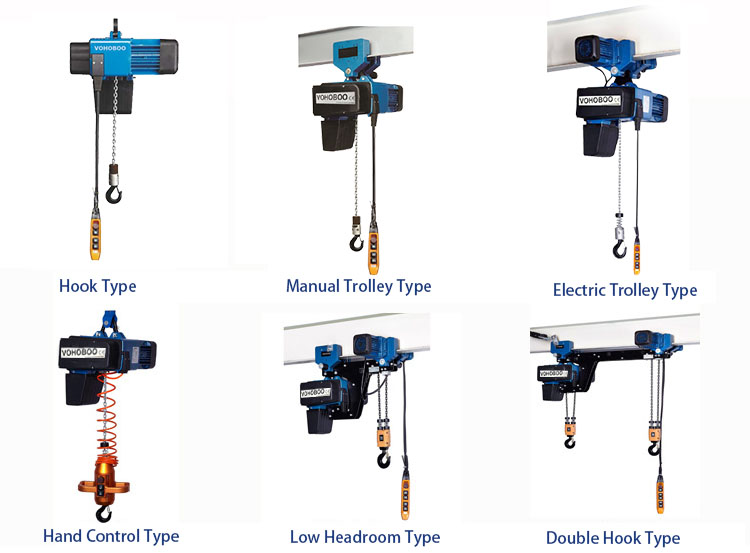

(1) European Style Electric Chain Hoist
Features compact aluminum alloy body, low noise, high precision gearbox, and variable frequency control for smooth operation.

Applications:
Automotive production lines, precision machinery assembly, logistics automation, and cleanroom operations.

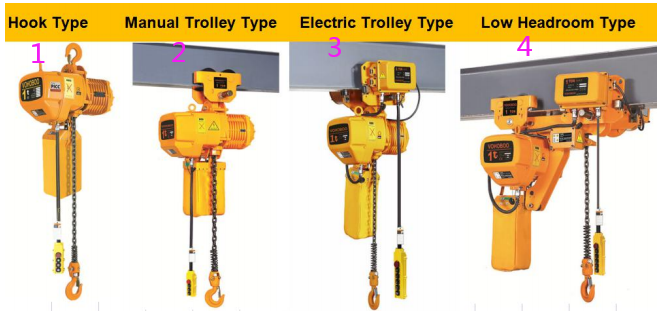

(2) Standard (Chinese Domestic) Electric Chain Hoist
Robust design, high-strength steel chain, electromagnetic brake, and cost-effective performance.

Applications:
Workshops, repair stations, construction sites, and small manufacturing plants.

3. Installation Modes: Fixed Type and Traveling Type
(1) Fixed Type Electric Chain Hoist
Installed in one position for vertical lifting only. Advantages include simple installation, compact design, and lower cost.

Applications:
Equipment assembly areas, mechanical workshops, and test stations.

(2) Traveling Type Electric Chain Hoist
Mounted on a trolley running along I-beams or monorails, enabling both lifting and horizontal movement.

Applications:
Warehouse loading areas, production lines, and overhead crane systems.

4. Chain Configurations: Single Chain vs. Double Chain
Single chain hoists are suitable for light to medium loads (0.5–2 tons) and offer faster lifting speeds.
Double chain hoists handle heavier loads (up to 5 tons or more), offering stability and reduced wear.

5. Lifting and Traveling Speed
Single-speed hoists: constant lifting speed, general applications.
Dual-speed hoists: slow and fast speeds for precise positioning.
Variable frequency control (VFD) hoists: smooth acceleration, minimal load swing.

Typical lifting speeds: 4–8 m/min (single speed), 0.8–8 m/min (dual speed).
Traveling speeds: 11–21 m/min depending on model and capacity.

6. Industrial Applications of Electric Chain Hoists
Manufacturing and Assembly: lifting machine parts, molds, and mechanical components.
Automotive Industry: engine installation, car assembly, component handling.
Warehousing and Logistics: loading, unloading, and stacking goods.
Construction Sites: lifting tools, panels, and equipment safely.
Maintenance and Repair: equipment maintenance and replacement.
Energy and Power Plants: installing turbines, valves, and maintenance components.

7. Advantages of Using Electric Chain Hoists
- Efficient and time-saving
- Compact and lightweight
- Reliable safety features
- Precise control
- Versatile installation
- Durable and low maintenance

8. Choosing the Right Electric Chain Hoist
Consider lifting capacity, working environment, power supply, mounting type, speed, and duty rating. Partnering with a reliable manufacturer ensures compliance with CE, ISO, or FEM standards.

9. Conclusion
Electric chain hoists provide safe, efficient, and flexible lifting solutions across industrial sectors. Selecting the right model ensures productivity, safety, and cost-effectiveness.
