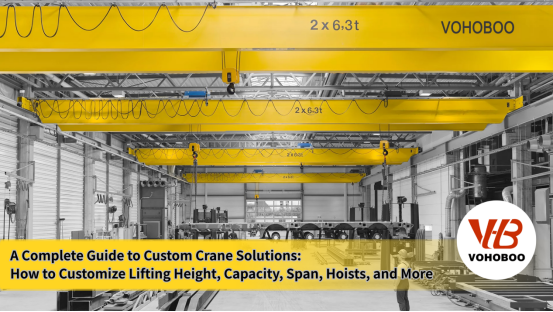

A Complete Guide to Custom Crane Solutions: How to Customize Lifting Height, Capacity, Span, Hoists, and More

In today’s industrial world, no two facilities operate exactly the same. Factories, warehouses, steel mills, assembly lines, and logistics centers each have unique workflows, building structures, lifting requirements, and safety standards. Because of these differences, standard cranes and hoists often cannot meet all application needs, making customized crane solutions an essential part of modern material-handling engineering.

Whether you are planning a new facility or upgrading an existing one, understanding how to properly customize a crane—its lifting capacity, span, lifting height, hoist type, duty classification, and more—is critical to achieving safe, efficient, and reliable lifting operations.

This guide provides an in-depth explanation of how custom cranes are designed, what parameters must be considered, and how to select the right components for your specific application.

---

1. Why Choose a Customized Crane Solution?

Every factory layout is different. Some projects require high-speed handling, while others require ultra-precise positioning. Some buildings have extremely limited height, while others involve outdoor heavy lifting or long-span movement.

·A customized crane is designed to:

·Match your exact lifting requirements

·Fit your building dimensions and runway structure

·Improve operational efficiency

·Increase safety and reliability

·Reduce long-term maintenance costs

·Integrate with your workflow or production line

·Ensure optimal performance for special working conditions

Customization is not simply an upgrade—it ensures that your crane works for your processes, not against them.

---

2. Key Parameters in Custom Crane Design

When designing a tailored crane system, engineers consider several critical parameters that influence safety, durability, and performance.

Below are the major factors that determine how your crane will be designed.

---

3. Lifting Capacity (Ton Capacity): Choosing the Right Tonnage

Lifting capacity is the most important specification of any crane. Selecting the correct tonnage ensures safe operation and prevents mechanical failure.

How tonnage is selected

·Engineers consider:

·The maximum load you expect to lift

·Additional weight from lifting devices (spreaders, magnets, grabs, slings)

·Future load growth

Common custom capacities

·Light-duty: 0.5–5 tons (warehouses, assembly lines)

·Medium-duty: 5–20 tons (manufacturing, workshops)

·Heavy-duty: 20–100 tons (steel mills, heavy machinery)

·Extra heavy-duty: 100–500+ tons (shipyards, power plants)

Selecting a capacity too high increases cost unnecessarily; selecting one too low creates major safety hazards. Custom solutions ensure the optimal balance.

---

4. Lifting Height (Hook Height): Maximizing Vertical Space

Lifting height refers to the distance from the floor to the highest hook position.

Why hook height matters

·Taller loads require higher lifting height

·Production equipment or racking systems may require clearance

·Low workshop ceilings require special low-headroom solutions

Custom options include

·Standard headroom hoist

·Low-headroom hoist

·Ultra-low-headroom hoist

·Double-girder hoist for maximum hook height

If your building has limited vertical space, a European-style low-headroom hoist can gain 200–500 mm more lifting height compared with traditional hoists.

---

5. Crane Span: Fitting Your Building’s Width

Crane span is the distance between runway beams.

Span affects

·Beam design

·Wheelbase

·Building structure stress

·Crane stability

·Customized cranes allow spans such as:

·Small span (5–10 m) – small workshops

·Medium span (10–25 m) – general manufacturing

·Large span (25–40 m) – heavy industries

·Extra-large span (40–60+ m) – shipyards, aerospace

Proper span design ensures smooth traveling, lower wheel loads, and long structural life.

---

6. Choosing the Right Hoist: Chain Hoist vs Wire Rope Hoist

A critical part of customizing a crane is selecting the correct hoist type.

Chain Hoist – For Light to Medium Loads

·Best for:

·0.5–5 tons

·Maintenance, assembly lines

·Lower-duty cycles

·Compact and economical applications

Advantages:

·Easy maintenance

·Lower cost

·Suitable for low-speed, precise operations

Wire Rope Hoist – For Medium to Heavy Loads

Best for:

·3–100+ tons

·High-speed lifting

·Frequent continuous operations

·Heavy-duty industrial environments

·Advantages:

·Higher lifting speed

·Greater load capacity

·Better for long-term heavy use

European Hoists (Electric Wire Rope or Chain)

·European-style hoists offer:

·Low-headroom design

·Frequency inverter (VFD) speed control

·Quiet, smooth operation

·Longer service life

Selecting the right hoist ensures efficiency, safety, and long-term cost savings.

---

7. Working Duty or Duty Classification (FEM/ISO/ASME)

Duty classification reflects how often and how intensely the crane will be used.

Examples

·FEM 1Bm / ISO M3 – light duty

·FEM 2m / ISO M5 – general industrial use

·FEM 3m / ISO M6 – heavy duty

·FEM 4m / ISO M7-M8 – continuous severe duty

·Selecting the correct class prevents:

·Overheating

·Premature wear

·Gearbox and motor failure

Industrial environments with 24/7 operation require higher-duty designs.

---

8. Traveling Speed & Control Modes

Custom cranes allow selection of hoisting, cross-travel, and long-travel speeds.

Speed options

·Single speed

·Dual speed

·VFD variable speed (smooth, precise)

Control modes

·Pendant control

·Wireless remote control

·Operator cabin

·Automated or semi-automated control

·VFD control improves:

·Precision

·Safety

·Load stability

·Efficiency

---

9. Environmental & Working Conditions

·Crane designs must consider environmental factors such as:

·High humidity

·High temperature

·Cold storage (-20°C or lower)

·Dusty environments (cement plants, steel mills)

·Corrosive environments (chemical plants, coastal areas)

·Outdoor weather exposure

·Options include:

·IP55/IP65 motors

·Anti-corrosion paint

·Stainless steel electrical boxes

·Rain covers

·Special rope lubrication

·Customized protection extends the crane’s lifespan.

---

10. Special Lifting Attachments

Custom cranes can be equipped with attachments for specific materials:

·Hooks

·Motorized lifting beams

·Magnets for steel plates

·Grabs for bulk materials

·C-hooks for coils

·Vacuum lifters

·Slings and shackles

·Proper attachments improve efficiency and reduce manual labor.

---

11. Runway System & Installation Requirements

A custom crane must be paired with the right runway structure.

Engineers evaluate

·Column spacing

·Beam strength

·Foundation load

·Crane wheel pressure

·Building reinforcement

·A well-designed runway ensures smoother operation and longer structural life.

---

12. Customization Workflow: How a Crane Solution Is Designed

A complete custom crane solution typically includes:

Step 1 – Application analysis

Load characteristics, duty cycle, environment, workflow.

Step 2 – Measurement and engineering evaluation

Factory dimensions, runway design, structure strength.

Step 3 – Crane system design

Capacity, span, height, duty class, hoist selection.

Step 4 – Production and quality assurance

Fabrication, machining, welding, assembly, NDT testing.

Step 5 – Installation & commissioning

Alignment, testing, load testing, operator training.

Step 6 – After-sales support

Maintenance, spare parts, inspections.

---

Conclusion: A Custom Crane Maximizes Safety, Efficiency, and Value

A customized crane solution allows companies to tailor every part of the lifting system—capacity, lifting height, span, hoist type, duty class, speed, environment protection, and more—ensuring that the crane perfectly matches operational needs.

Compared with standard cranes, customized cranes offer:

·Higher efficiency

·Smoother operation

·Longer lifespan

·Lower maintenance cost

·Better safety performance

·Stronger adaptability to future expansion

For any business seeking a reliable, long-term lifting solution, custom crane engineering is not just a choice—it is a necessity for maximizing productivity and safety.
