Structure classification of gantry crane

Views:0     Author:Site Editor     Publish Time: 2020-04-22      Origin:Site

Gantry cranes can be classified according to the door frame structure, the main beam form, the main beam structure, and the use form.

  Gantry crane

1. Full gantry crane: the main beam has no overhang, the trolley is carried out within the main span;

2. Half gantry crane: The outriggers have height difference, which can be determined according to the civil requirements of the site.

Cantilever gantry crane

1. Double cantilever gantry crane: a common structural form, its structural stress and the effective use of site area are reasonable.

2. Single cantilever gantry crane: This structure is often selected because of site constraints

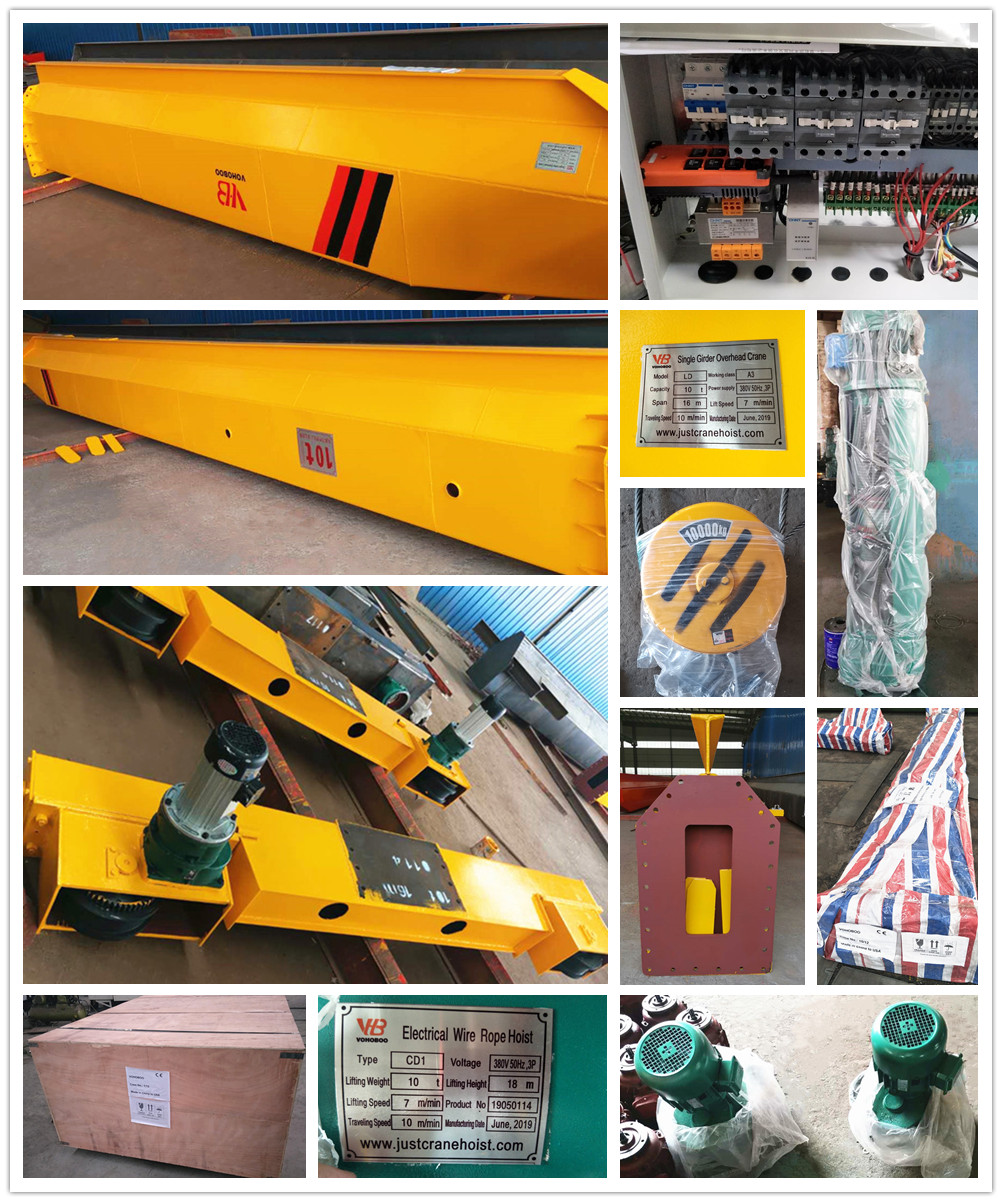

10T 行车发货图
