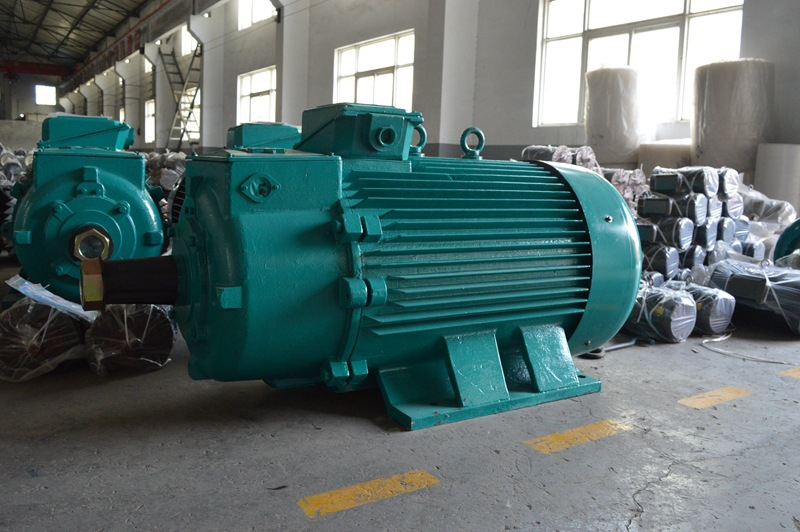

YZ single / double shaft crane motor

YZ & YZR series three-phase asynchronous motors are new series products designed unitedly in China for hoists and metallurgic

Quantity:
  • YZ series
  • VOHOBOO
  • 0.55KW~315KW
  • CE, ISO
  • 220-480v
  • Asynchronous Motor
  • 50/60Hz
  • all colors

YZ, YZR series is the up to date design electric motor with the characteristic of big overload capacity and high mechanical strength, which is specially adequate for driving all sorts of metallurgical machinery and hoisting machine or the other similar equipment. YZR series is wound rotor electrical motor and YZ series is cage type electrical motor.


1). The motor can work well when the altitude does not exceed 1000 meters.
2).The motors posses a better enclosure, degree of protection IP44 for normal site condition and IP54 from etallurgical condition.
3). YZR series are winding rotor three-phase asynchronous motors for hoisting and metallurgy, complying with JB/T10105-1999 standard. YZ sereies are squirrel cage three-phase asynchronous motors for hoisting and metallurgy, complying with JB/T10104-2011 standard.
4). There are two classes of F and H insulation,Class F is applicalbe to suit temperature which cool air does notexceed 40 under normal condition,Class H is suitable for metallurgical sites when ambient temperature no exceeding 60 both motors have same data.
5). Motor's rated voltage and frequency is 380V, 50Hz.
6). Frame size is from 112 to 710


Duty type S3   6 Starts/h
CDF 15% 25% 40%
Type PNkW INA nr/min) PNkw INA nr/min PNkW INA nr/min Tm Tst Ist Eff Power factorcosφ Moment of inertia
------ ------ ----- η GD2kg.m²
TN TN IN %
Synchronous Speed 1000r/min   6poles   50Hz
YZ112M 2.2 6.5 810 1.8 4.9 892 1.5 4.3 920 2.7 2.4 4.5 69.5 0.77 0.1
YZ132M1 3 7.5 804 2.5 6.5 920 2.2 5.9 935 2.9 3.1 5.2 74 0.75 0.21
YZ132M2 5 11.6 890 4 9.2 915 3.7 8.8 912 2.8 3 5.5 79 0.79 0.23
YZ160M1 7.5 16.8 903 6.3 14.1 922 5.5 12.5 933 2.7 2.5 4.9 80.6 0.83 0.42
YZ160M2 11 25.4 926 8.5 18 943 7.5 15.9 948 2.9 2.4 5.5 83 0.86 0.53
YZ160L 15 32 920 13 28.7 936 11 24.6 953 2.9 2.7 6.2 84 0.85 0.71
Synchronous Speed 750r/min   8poles   50Hz
YZ160L 11 27.4 675 9 21.1 694 7.5 18 705 2.7 2.5 5.1 82.4 0.77 0.77
YZ180L 15 35.3 654 13 30 675 11 25.8 694 2.5 2.6 4.9 80.9 0.81 1.3
YZ200L 22 47.5 686 18.5 40 697 15 33.1 710 2.8 2.7 6.1 86.2 0.8 2.3
YZ225M 33 69 687 26 53.5 701 22 45.8 712 2.9 2.9 6.2 87.5 0.83 3
YZ250M1 42 89 663 35 74 681 30 63.3 694 2.5 2.7 5.5 85.7 0.84 5.3
