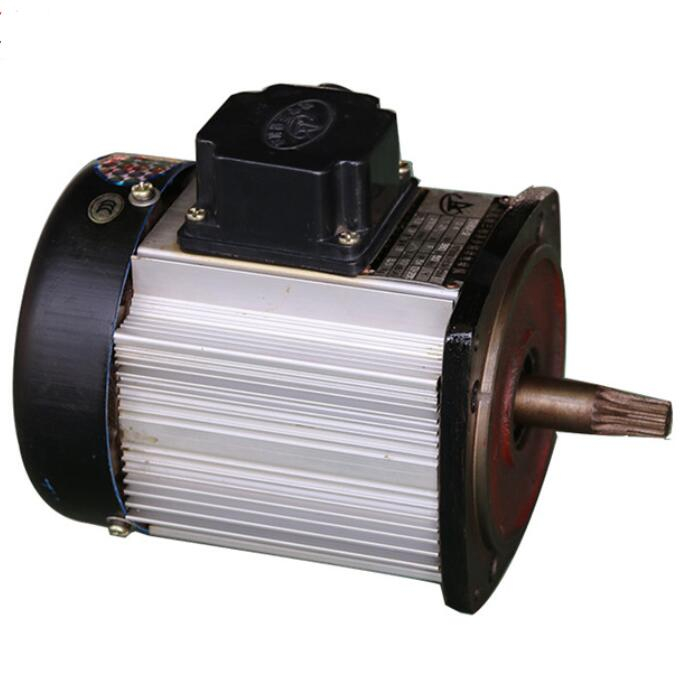

Single Speed Crane Travel Motor

YSE series double-rotor soft start three-phase asynchronous brake motor, is new design brake motor especially for the working of cranes lifting equipment. YSE is single speed, crane travel motor.
Quantity:
Inquire Add to Basket

  • YSE Series

  • VOHOBOO

  • crane travel motor

  • 380V, 50HZ /customized

  • IP54 or customized

  • F or customized

  • B5/B3

  • 2/4/6/8/10/12

YSE motor can be the power of electric single girder, double girder hoists and gantry cranes lifting equipment traveling mechanism , also suitable for the power of single girder electric hoist traveling system.


YSE series ( Single-speed) motor technical parameters:
Model Rated Power
(KW)		 Torque
(N·m)		 Rated current
(A)		 Synchronous Speed(r/min) Brake Torque
(N·m)		 Exciting voltage
(V)		 Weight
(kg)
YSE80-4 0.2 2 1.5 1500 1-3 —— 10
YSE801-4 0.4 4 2.8 1500 1-3 —— 11
YSE802-4 0.8 8 3.6 1500 1-3 —— 12
YSE90S-4 1.1 12 6.2 1500 2-6 —— 15
YSE90L-4 1.5 16 7.5 1500 2-6 —— 18
YSE100L1-4 2.2 24 10 1500 3-20 —— 33
YSE100L2-4 3.0 30 12 1500 3-20 —— 37
YSE112M-4 4.0 40 17 1500 3-20 —— 43
YSE132S-4 5.5 52 24 1500 10-40 AC380 62
YSE132M-4 7.5 74 32 1500 10-40 AC380 93
YSE160M-4 11 116 58 1500 20-50 AC380 150
YSE90S-6 0.5 8 4 1000 2-6 —— 12
YSE90L-6 0.8 12 5 1000 2-10 —— 18
YSE100L-6 1.5 23 8 1000 3-20 —— 33
YSE112M-6 2.2 33 11.5 1000 3-30 —— 37
YSE132S-6 3 46 16 1000 10-40 —— 62
YSE132M1-6 4 60 19 1000 10-40 AC380 80
YSE132M2-6 5.5 82 25 1000 10-40 AC380 93
YSE160M-6 7.5 112 42.5 1000 20-50 AC380 150
YSE160L-6 11 160 52 1000 20-50 AC380 180
YSE80-8 0.2 4 1.8 750 1-3 —— 11
YSE90S-8 0.4 8 3.7 750 2-10 —— 12
YSE90L-8 0.8 16 6 750 2-10 —— 18
YSE100L-8 1.5 32 11 750 3-20 —— 37
YSE112M-8 2.2 48 14.8 750 3-30 —— 43
YSE132S-8 3.0 60 18 750 10-40 AC380 81
YSE160M1-8 4.0 80 23 750 10-40 AC380 100
YSE160M2-8 5.5 100 27 750 20-50 AC380 150
YSE160L-8 7.5 150 36 750 20-50 AC380 170
YSE180L-8 11 220 53 750 20-60 AC380 190


YSE series mounting size:
(B5 installation -flat key) unit:mm
YSE1参数图
1
(B5 -splined shaft ) unit:mm
       Size
Seat No.		 D1 D2 M 4-S D3 E R L L1 L2 L3 H P
YSE801 φ110 φ75h7 φ90 φ7 φ165 25 15 370 22 4 10 150 4D-15f9×12b12×4d11
YSE802 φ140 φ100h7 φ120 φ9 φ165 25 15 410 22 4 10 150 6D-20f9×16b12×4d11
YSE90S φ140 φ100h7 φ120 φ9 φ165 28 20 445 24 4 12 155 6D-20f9×16b12×4d11
YSE90L φ140 φ100h7 φ120 φ9 φ165 28 20 465 24 4 12 155 6D-20f9×16b12×4d11
YSE100L φ140 φ100h7 φ120 φ9 φ205 28 20 490 24 4 14 180 6D-20f9×16b12×4d11
YSE112M φ140 φ100h7 φ120 φ9 φ230 28 20 520 24 4 14 190 6D-20f9×16b12×4d11

3. Motor shape and installation size(B5 -splined shaft) Unit:mm
       Size
Seat No. 		D1 D2 M 4-S D3 E R L L1 L2 L3 H P
YSE802-D φ220 φ180h7 φ200 φ11 φ165 35 13 328 30 3.5 10 150 6D-25f9×22b12×6d11
YSE90S-D φ220 φ180h7 φ200 φ11 φ165 35 13 358 30 3.5 10 155 6D-25f9×22b12×6d11
YSE90L-D φ220 φ180h7 φ200 φ11 φ165 35 13 378 30 4 12 155 6D-25f9×22b12×6d11
YSE100L-D φ220 φ180h7 φ200 φ11 φ205 35 13 465 30 4 12 155 6D-25f9×22b12×6d11
YSE100L-D
(Enlarge)		 φ330 φ250h7 φ286 φ13 φ205 41 15 473 36 4 12 155 6D-25f9×22b12×6d11
YSE112M-D φ250 φ180h7 φ215 φ15 φ230 35 14 495 30 4 15 180 6D-28f9×24b12×6d11
2


Any special requirement can be customized!
FAQ of Motors:
1) Where the motor will be used ? crane, hoist or other machines?
2) Rated power, rated voltage, rated frequency, speed
3) Reference work system：S3?
4) Installation way: B5? B3?
5) Protection class: we standard IP54? IP55? ( or can be customized according to your request)
6) insulation class --we standard F( or can be customized according to your request)
7) Mounting Size?
If the standard size is not suitable for you, we can customize according to your drawings.


Features &Advantage:
1. Aluminum housing: fast heating radiation comparing iron casting housing.

2. Germany import non-asbestos friction plate: environmental protection.

3. China top quality silicon steel sheet iron core(used for stator and rotor).

4. Cold rolling silicon steel sheet: not hot rolling, which can reduce motor heat.

5. F class insulation paper and insulation paint for copper wire, which can withstand high temperature.

6. Especial and professional testing equipment before delivery: 3 minutes high voltage testing, voltage reduction 15% testing, ground pressure testing..

7. All of motors with cylinder squirrel-cage rotor, which is  Start steady than coning rotor.
