Lifting Motor for Car Parking System

CK Series deceleration brake motor, designed to supply power for the lifting and moving of stereo garage.
Quantity:
  • CK-SJ

  • VOHOBOO

  • F or customized

  • B3

CK-PY Deceleration brake motor for the moving of car parking system



I. Outline

CK Series deceleration brake motor, designed to supply power for the lifting and moving of car parking system.



1. Drive Features:

1.1 The deceleration motor integrated speed reducer, motors, electromagnetic brake, optimized design, compact structure, small size and light weight.

1.2 The speed reducer gear is hard surface gear, with grinding process, so the whole driver with low noise and smooth operation.

1.3 Speed reducer has been lubricated by gear grease.



2. Motor Features:

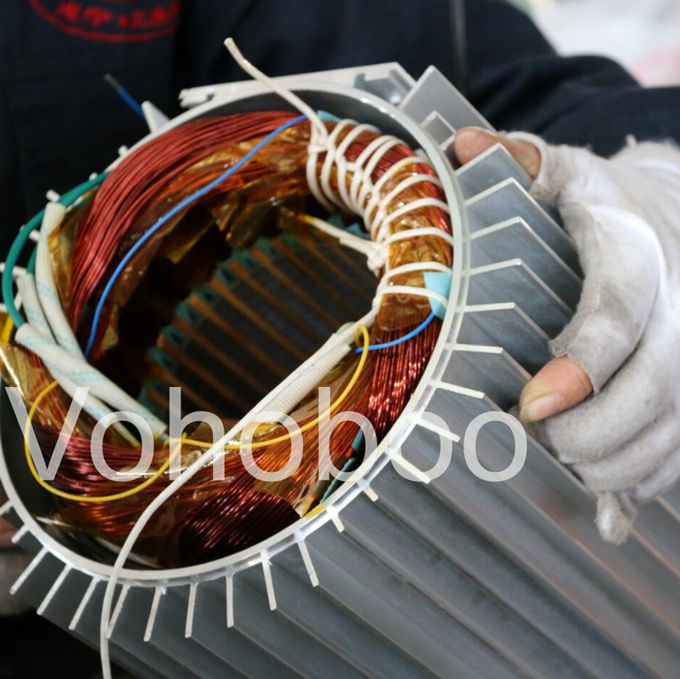

2.1 Motor housing is made of aluminum, beautiful appearance, excellent heat elimination.

2.2 Motor has a large starting and limit torque, lower starting current, high power density.

2.3 The motor adopts cylindrical  squirrel cage rotor, small size, light weight, simple control, easy maintenance, high reliability.

2.4 Protection class IP54, insulation class F.

2.5 Standard working system: S2-10min.

2.6 Mounting type B3.



3.  Electromagnetic brakes features:

3.1 Electromagnetic brake power is AC220V,  half-wave rectification DC96V.

3.2 Brake is with double-sided safe braking. Reliable performance, high closing rate.

3.3 Automatic braking when power off, safety braking and without vibration.

3.4 Friction plate is imported non-asbestos friction plate, less wear, long lifespan (approx. one million times braking before the first maintenance)





Operating Conditions:

1. Standard electric system: rated voltage 380V, rated frequency 50Hz (other voltage and frequency can be customized)

2. Altitude ≤1000 meters, -15 ℃ ≤ ambient temperature ≤40 ℃, relative humidity ≤85%. The working environment should be no explosion dust and non-corrosive.
3. No rain and exposure , outdoor use should be packed with protective cover.

4. Moto should connect ground line, please refer to the power distribution regulations.

5. Please check whether the motor damped or not before using. Use a 500-volt megohmmeter to measure the insulation resistor, the resistor should not be less than 0.5 megohms). Or should dry the motor. The drying temperature should not exceed 80 ℃.

6.Before the motor installed on the device, please make sure the whole system has good and stable operating characters in the unloaded test.



III. Motor  wiring  diagram (brake forbidden connect to frequency power supply)
1



IV. Deceleration brake motor main technical parameters
2
34

Technical parameter

Speed reducer feature

Brake feature

Power

   0.2kw

quote

S2-15min

Reduction ratio

1/43

1/51

Static braking torque

4N.m

Voltage

380V

Pole number

4P

Actual speed ratio

1/43.6

  1/51

Rectification voltage

AC220V

Frequency

50HZ

Protection class

IP54

Torque N.m

43

54

Braking voltage

DC96V

Currency

8.5A

cover

Aluminum alloy

Output rational speed

30.7

26

Braking currency

0.98A

Rotation speed

1340r/min

Output shaft diameter

Ø22mm

Release time

0.15S

5
6 7

Technical parameter

Speed reducer feature

Brake feature

Power

0.2kw

quote

S2-15min

Reduction ratio

1/43

1/51

1/72

Static braking torque

4N.m

Voltage

380V

Pole number

4P

Actual speed ratio

1/43.6

1/51

1/71.6

Rectification voltage

AC220V

Frequency

50HZ

Protection class

IP54

Torque N.m

43

54

73

Braking voltage

DC96V

Currency

8.5A

cover

Aluminum alloy

Output rational speed

30.7

26

19.5

Braking currency

0.22A

Rotation speed

1400r/min

Output shaft diameter

Ø22mm

Release time

0.15S

8
9 10

Technical parameter

Speed reducer feature

Brake feature

Power

0.4kw

quote

S2-15min

Reduction ratio

1/43

1/51

Static braking torque

4N.m

Voltage

380V

Pole number

4P

Actual speed ratio

1/43.6

1/51

Rectification voltage

AC220V

Frequency

50HZ

Protection class

IP54

Torque N.m

86

102

Braking voltage

DC96V

Currency

1.2A

cover

Aluminum alloy

Output rational speed

28.6

26

Braking currency

0.22A

Rotation speed

1320r/min

Output shaft diameter

Ø22mm

Release time

0.15S

11 12
13

Technical parameter

Speed reducer feature

Brake feature

Power

0.4kw

quote

S2-15min

Reduction ratio

1/43

1/51

Static braking torque

4N.m

Voltage

380V

Pole number

4P

Actual speed ratio

1/43.6

1/51

Rectification voltage

AC220V

Frequency

50HZ

Protection class

IP54

Torque N.m

86

102

Braking voltage

DC96V

Currency

1.2A

cover

Aluminum alloy

Output rational speed

28.6

26

Braking currency

0.22A

Rotation speed

1320r/min

Output shaft diameter

Ø22mm

Release time

0.15S

Motors:
1) where the motor will be used ?

2) Rated power, rated voltage, rated frequency, speed

3)  Reference work systemS3?

4) Installation way: B5? B3?

5) Protection class: we standard IP54? IP55? ( or can be customized according to your request)

6) insulation class --we standard F( or can be customized according to your request)

7) Mounting Size? Or you can send us your drawings so we can customize for you. Thanks
