Lever wire rope hoist

Lever wire rope hoist is a kind of portable and versatile hand –operated loading and pulling appliance, which is capable if being applied in sites, transports and telecommunication for installing equipment, lifting goods, pulling mechanical parts.
Quantity:
Inquire Add to Basket

  • VOHOBOO

  • Hand Lever

  • 20m

  • Mamual Wire rope pulling hoist

Lever wire rope hoist
It is a new and compact small size manual lifting tool. Light weight and firmed structure, widely used, convenient maintenance. The most attractive feature is can suit for outside and bad environment.
The outershell material is aluminum alloy, has enough strength, light weight and easily carrying. Inside parts adopts best alloyed steel, with advanced technology, all parts through strictly checked and certification, even our main parts according to ISO standards to ensure our high quality.
hand operated lever wire rope pulling hoist features:

1.Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M. The lifting height can be customized.
2.All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3.Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
3.The hoist has low maintenance requirements and is easy service.
4.Overload protection ensures high personal safety when in operation.
5.Specially built-in shear pins can be replaced without removing the load.

Parameter of Lever wire rope hoist

Item No VP-800 VP-1600 VP-3200 VP-5400
Lifting Capacity (kg) 800 1600 3200 5400
Pulling Capacity (kg) 1300 2800 6000 10125
Tested to (kg) 1500 3000 6000 10125
Steel wire rope dia. (mm) IWRC 8 IWRC 11 IWRC 16 IWRC 20
Wire rope safety load capacity/ times 5 5 5 5
Breaking strength of wire rope (kg) 5430 9680 17200 27000
Net weight (without wire Rope) (kg) 6.4 12 23 56

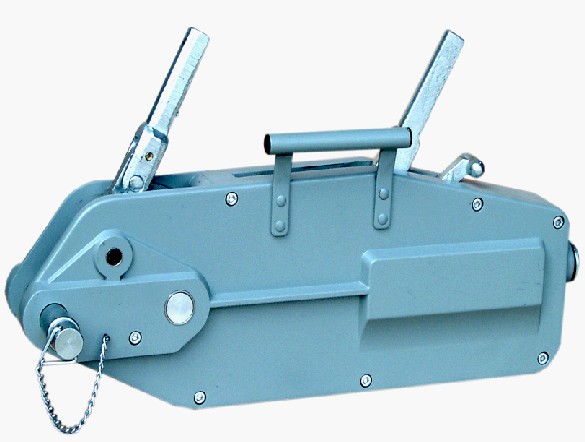

Photos of wire rope manual hoist puller:
wire rope hoist
