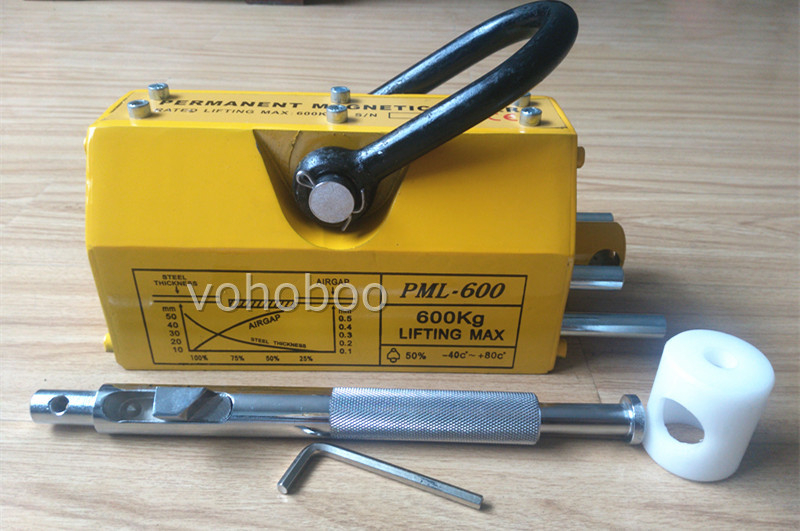

High Quality Magnetic Lifter

High Quality Magnetic Lifter is widely used for lifting flat mechanical parts and steel, and in some mechanical manufacturing industries,such as machine-building plant,machining center,shipping building industry etc
Quantity:
Inquire Add to Basket

  • PML

  • VOHOBOO

  • cartons and pallets

  • 12 months

  • Red,Yellow,Blue or as required

  • 50kgs~6000kgs

  • magnet

1. Brief Introduction for PML Magnetic Lifter
Permanent Magnetic lifter which can greatly improve the magnetic steel material clamping efficiency.
The permanent magnet lifter is a high-performance rare earth material NdFeB (N> 40) as the core, through the hand pull the suction cup handle rotation, thus changing the inner chimney NdFeB magnetic system, to be processed workpiece suction or release. is is the machinery factory, mold factory, and other machining field widely used magnetic fixture.

2. Permanent Magnetic lifter parameter:

Model  Lifting capaicty (kg) Dimension Net weight (kg)
Steel plate Cylindrical Length Width Height Handle
PML-100 100 50 92 62 69 155 3.2
PML-200 200 100 130 65 69 155 5.4
PML-400 400 200 160 95 95 200 11
PML-600 600 300 210 120 120 230 20
PML-1000 1000 500 260 150 140 255 40
PML-1500 1500 750 340 150 140 255 48
PML-2000 2000 1000 400 170 170 320 74
PML-3000 3000 1500 440 170 170 380 105
PML-5000 5000 2500 600 230 215 600 248
Material Metal Q235, Nd magnet/SmCo magnets, Stainless, and meteal parts
Energy Permanent magnetics, no need electric power
Hand bar Lock Fixture make sure the hand bar fixed when lock and unlock
Lifting Ring Type B fixed, Type A C D can move 140 Deg, Type E can move 180 Deg
Operation Temp <80 Centigrade
Rated lifting 100kgs, 300kgs, 600kgs, 1000kgs, 2000kgs, 3000kgs, 6000kgs
Safty rate X 3.5-4 times
Standard DIN GB ISO JIS BA ANSI

3.    PML Magnetic Lifter   Workplace photos:

PML Permanent Magnetic lifter
