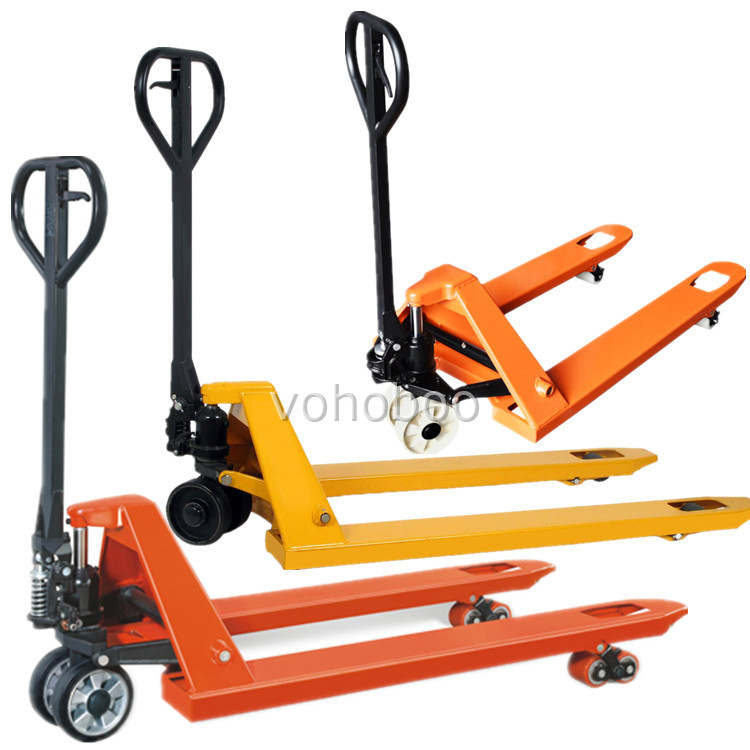

Hand Manual Forklift

The hand Pallet Truck is an good handing partner for all manual transport tasks over short distances, excellently suitable for use on lorries, in small warehouse and markets etc.

Specially designed to lift and transport the widest variety of loads in stores and warehouse. The ergonomic tiller safely protects the operator's hands while working.
Quantity:
Inquire Add to Basket

  • VH

  • Vohoboo

  • Hand

  • 550mm/685mm

  • 2000/2500/3000 / 5000 kgs

  • all accept

  • Manual Pallet Truck

1.  Brief Introduction of Hand Manual Forklift
Introduction: Hand pallet truck which is combined with small volume hydraulic device, handle, fork, and wheels.  Used for moving mechanical equipment by Human power, Internal relief valve to provide overload protection, to avoid overload use, reduce maintenance costs.

Usage: carrying fork into the tray hole, to drive the hydraulic system to achieve the pallet cargo lifting and falling, and by the human power to complete the transfer operation. It is the easiest, most effective and most common handling and handling tool for pallet conveyors.

  1.  Application of   Hand Manual Forklift
Hand pallet truck / forklift  is widely used in logistics, warehouses, factories, hospitals, schools, shopping malls, airports, sports venues, station airports and so on.
vohoboo- hand pallet truck application
3.   Hand Manual Forklift  details show :

PU Wheel:  high quality Polyurethane wheel , Red color

Nylon Wheel: white color, durable wheel

Casting pump:  whole type oil pump, it is  casted in one time, white color

Welding pump:  Separate  type oil pump,  Black color
pallet truck wheel type

4.   Hand Manual Forklift  Parameter s:
Hand Pallet Truck Technical Parameters
Model VH-2 VH-2.5 VH-3 VH-5
Capacity (kg) 2000 2500 3000 5000
Min. fork height (mm) 75
Max. fork height (mm) 195
Max. lifting height (mm) ≧110
Width overall fork (mm) 550 685
Fork length (mm) 1200
Fork size (mm) 150*55 160*60
Loading wheel (mm) 80*70
steering wheel (mm) 180*50
Net weight (kg) 68 73 80 130


5: Factory show of   Hand Manual Forklift
pallet truck factory
2. parts of pallet truck

6.  SERVICE AND ADVANTAGES
1. Prompt reply for inquiry within 24 hours.
2. One on one service guarantees you the best purchasing experience.
3. Fast deliver time and guarantee quality.
4. The pump,bearing,handle and wheel we used are the top quality  in China.
5.We offer competitive price with top quality to increase our partner’s competition
advantages in the market.
6.Hand Pallet Trucks with scale, all color and galvanization are optional.



Thanks for your reading!
