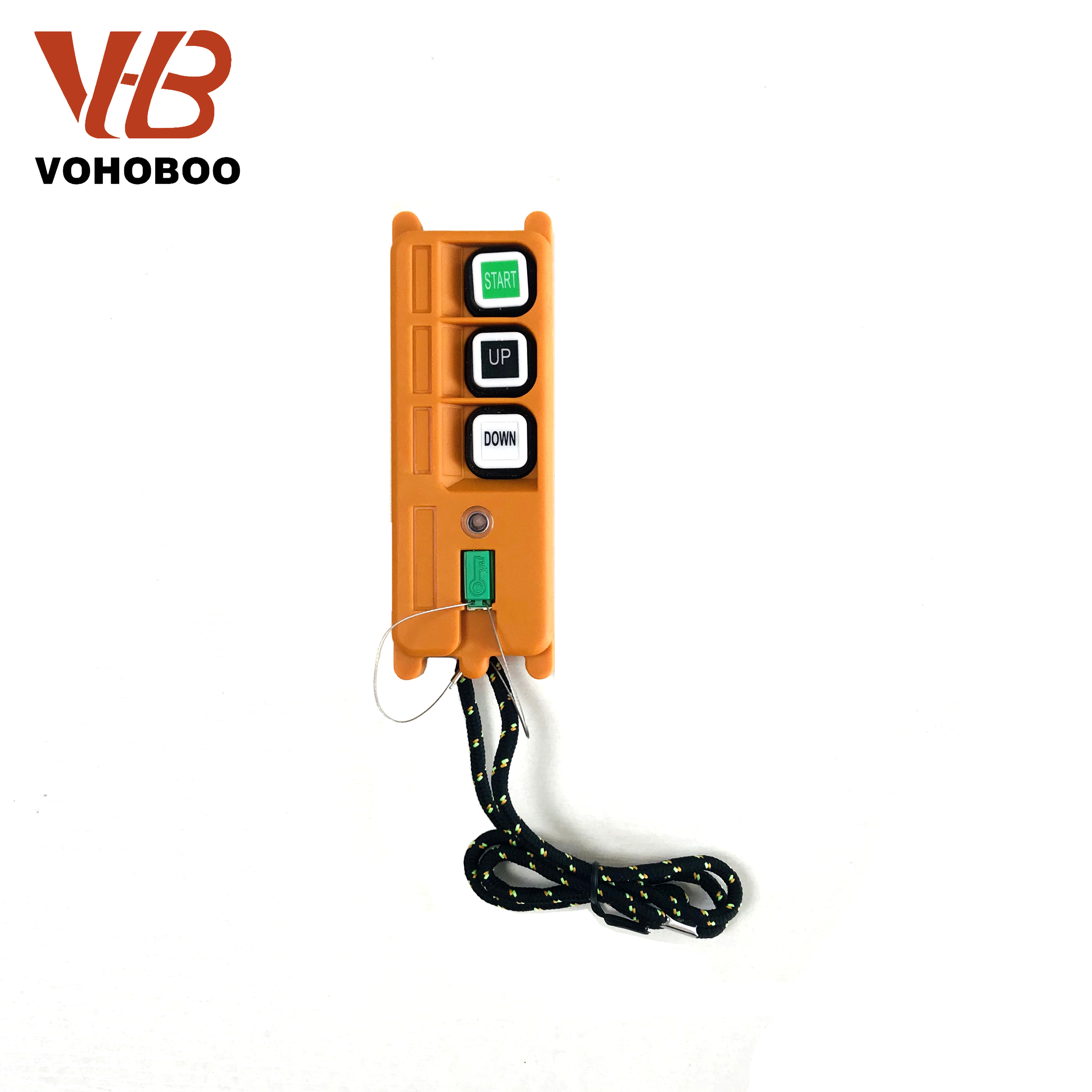

F21-2s/ 2d 2 Button Channels Industrial Crane Hoist Radio Remote Control

Widely applied for lifting equipment, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipment and sites which can be worked by radio controls.
Quantity:
  • F21-2s/2d
  • VOHOBOO
未标题-1

Features:

1. Two single/double speed buttons,one“STOP”

2. 6 control contactors

3. With battery voltage warning device, the power supply is cut off during low power

4. Program the button function by computer interface

5. Up/down, east/west, can be programmed to interlock or non-interlock

6. The spare button can be programmed to start, toggle or normal, etc



Product Parameter:

Transmitter Parameters: F21-TX

 Material

Glass-Fiber PA

Enclosure  protection class

 IP65

Frequency range

VHF: 310~331 MHz; UHF: 425~446MHz

Transmitter power

10dBm

 Transmitter power supply

2 AA batteries

Safety code

32 bits (4.3 billion)

Temperature range

- 40~+85

Control distance

Approx 60m (100 meters is customized)



Receiver Parameters: F21-RXC

Material

Glass -Fiber PA

Enclosure protection class

IP65

Frequency range

VHF: 310~331MHz; UHF: 425~446MHz

Receiver sensitivity

-110dBm

Receiver power supply

18~65V AC/DC / 65~440V AC/DC ( optional )

Output contactor capacity

8A sealed relay output (with AC 250V/10A relays, 10A fuse)

Control distance

Approx 60m (100 meters is customized)

Safety code

32 bits (4.3 billion)

Temperature range

- 40~+85



 Application:

     Single-hook, single-speed electric hoist or hoist-type traffic and industrial remote control with 8 contacts or less.

F21-2S
