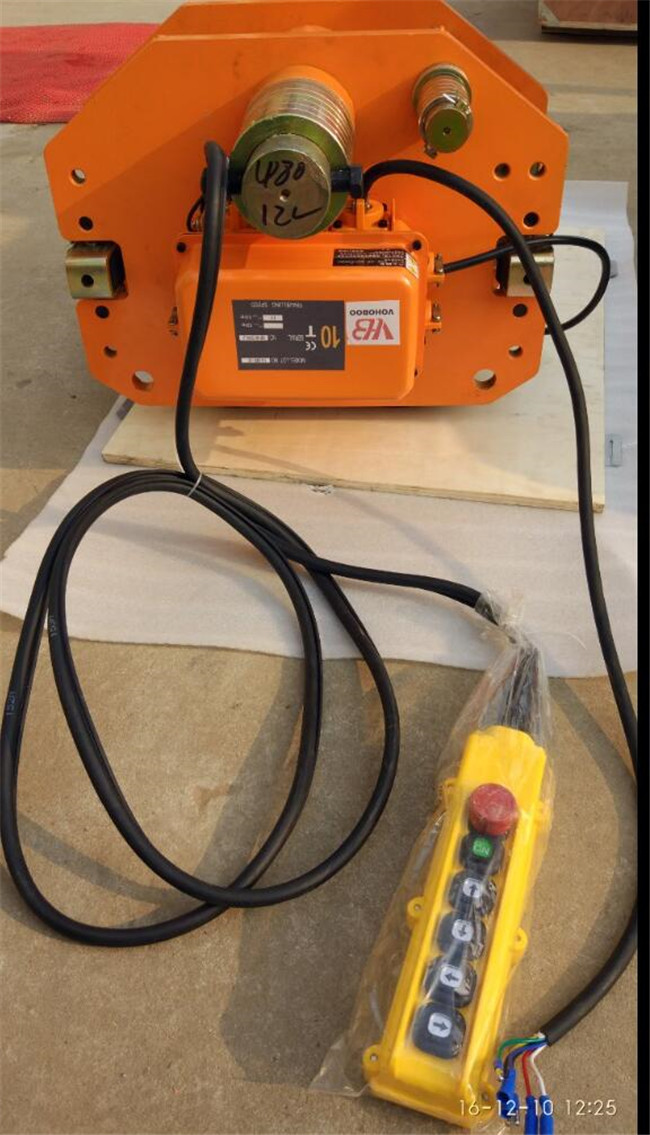

Electric Trolley for Chain Hoist

Electric trolleys can be supplied in many different designs and are used to support and mount hoisting equipment for fixed or travelling applications.

Quantity:
  • VOHOBOO
  • Three-phase voltage
  • Construction Hoist
  • 11/21m/min
Eletric trolley,electric chain hoist trolley features

1. Electric trolley is matching product specially for HBY series electric chain hoist.

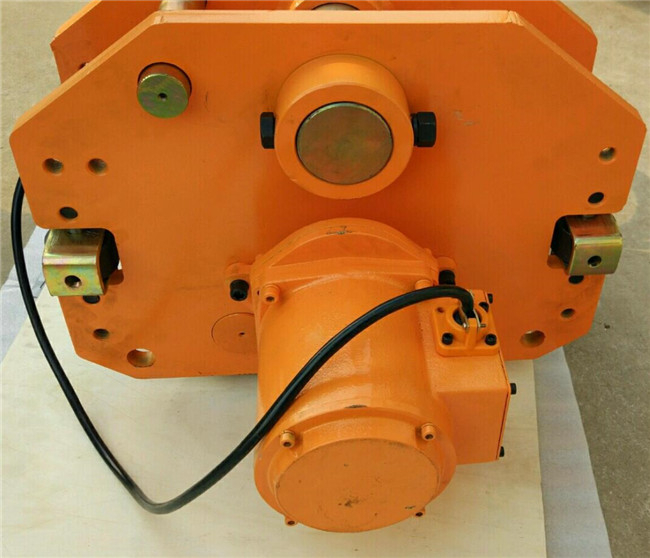

2. Electric single trolley is use the drive sturcture of electromotor drive wheel gear to running on the I-shaped steel,and the distance between the wheels can be adjusted by the size of the I-shaped steel it can be installed on the bridge crane,beam crane,jib crane when you get the electric hoist hanging under the trolley.
3. Electric single trolley widely used in factory,mine,port,warehouse ,building site,single trolley used on install machinery and equipment hoisting the goods especial can work on no electric place.
Single trolly use safely,easy maintenance.single trolly compact structure,small install size easy to adjust the spacing of the wheel,apply to many size of I-shaped steel The left right wallboard of the trolley use hinge coupling, through the force of gravity, to adjust the height, make four wheels stress even.

Eletric trolley,electric chain hoist trolley technical parameter

Model Capacity (T) Speed 50Hz (m/min) Motor (kw) Minimum radius of turn I Beam (mm)
WHB-0.5 0.5 12 0,12 0,8 52-153
WHB-1 1 11 or 21 0,4 0,8 52-153
WHB-2 2 11 or 21 0,4 0,8 82-178
WHB-3 3 11 or 21 0,4 1 100-178
WHB-5 5 11 or 21 0,75 1,8 100-178
WHB-7.5 7.5 11 or 21 0,75 1,8 100-178
WHB-10 10 11 or 21 0,75 2,5 150-220
