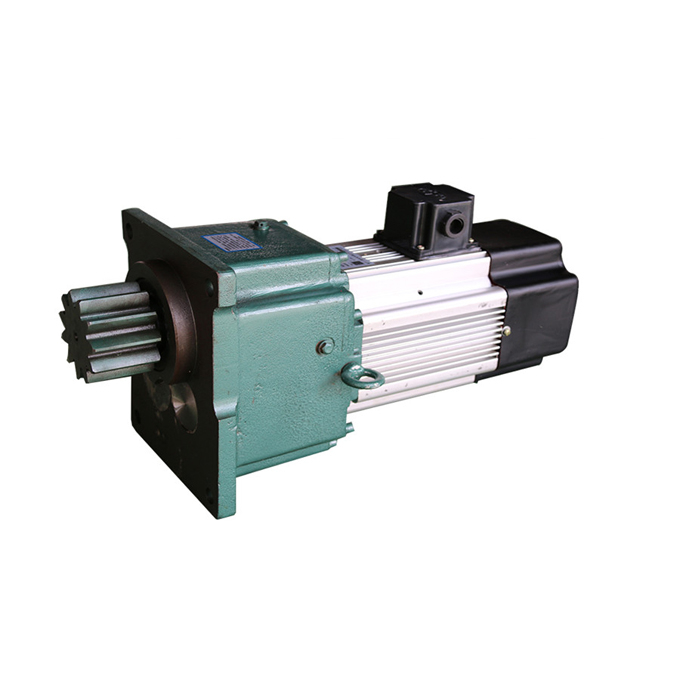

RQQD series are soft start driver, which is used for electric single girder,double hoists girder, gantry cranes and other lifting equipment. It’s a new type integrated driver for both big and small trolley
RQQⅠ type driver is a integrated soft start driver for electric single girder, double girder hoists, gantry cranes lifting equipment carts driver,etc, as well as the double girder trolley. The installation dimensions is interchangeable with LDA Driver.
Motor Installation Dimension Table
Motor
YSE0.4KW
YSE0.5KW
YSE0.8KW
YSE1.1KW
YSE1.5KW
L
314
314
339
365
395
Driver speed table for your reference-The design of the soft start driver is according to M=5、Z=49 tooth contact wheel diameter φ270
running speed
20m/min
30m/min
45m/min
60 m/min
75m/min
output ratio i
12.4
8.28
5.98
4.14
5.1
output rotate speed（r/min） （M5×Z11 gear）
103.2
154.5
214
309
259
RQQⅠ type driver is a integrated soft start driver for electric single girder, double girder hoists, gantry cranes lifting equipment carts driver,etc, as well as the double girder trolley. The installation dimensions is interchangeable with LDA Driver.
Motor Installation Dimension Table
Motor
YSE0.4KW
YSE0.5KW
YSE0.8KW
YSE1.1KW
YSE1.5KW
L
314
314
339
365
395
Driver speed table for your reference-The design of the soft start driver is according to M=5、Z=49 tooth contact wheel diameter φ270
running speed
20m/min
30m/min
45m/min
60 m/min
75m/min
output ratio i
12.4
8.28
5.98
4.14
5.1
output rotate speed（r/min） （M5×Z11 gear）
103.2
154.5
214
309
259
1. It is according to current driver’s dimensions, to optimize the design, integrated the soft start motor, reducer and the brake. Thereby improved the installation quality, reduced the assembly time, optimized installation program.Integration driver is with small size, light weight, easy installation and easy-maintenance, compact and beautiful structure.
2. This series soft start driver is equipped with YSE series dual-rotor soft start 3 phase asynchronous brake motor. F-class insulation, IP54 protection class. Motor housing is aluminum alloy, reduced weight and helped motor heat dissipation. So it prevents the motor winding aging easily, extends the lifespan of the motor. Motor adopts cold-rolled silicon steel sheet, (which) enhances the output power, the motor heat condition,starting torque performance.It is much better than hot-rolled silicon steel sheet.
1. It is according to current driver’s dimensions, to optimize the design, integrated the soft start motor, reducer and the brake. Thereby improved the installation quality, reduced the assembly time, optimized installation program.Integration driver is with small size, light weight, easy installation and easy-maintenance, compact and beautiful structure.
2. This series soft start driver is equipped with YSE series dual-rotor soft start 3 phase asynchronous brake motor. F-class insulation, IP54 protection class. Motor housing is aluminum alloy, reduced weight and helped motor heat dissipation. So it prevents the motor winding aging easily, extends the lifespan of the motor. Motor adopts cold-rolled silicon steel sheet, (which) enhances the output power, the motor heat condition,starting torque performance.It is much better than hot-rolled silicon steel sheet.
