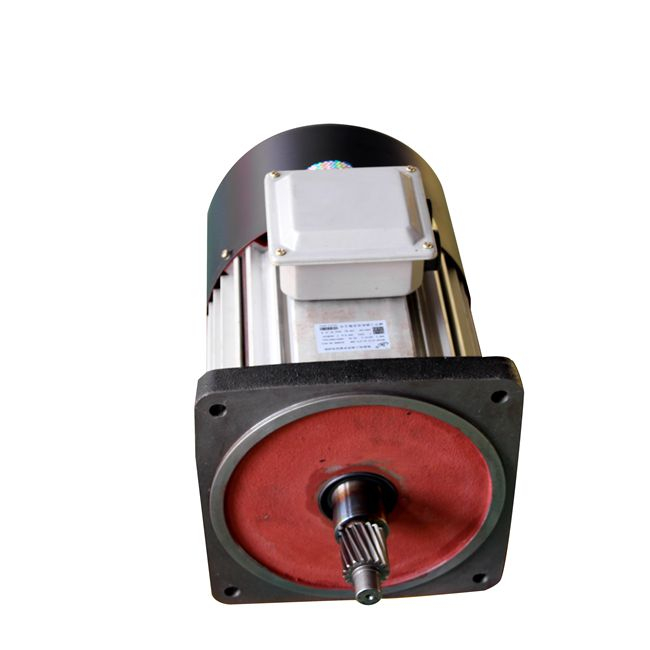

3 Phase Crane AC Motor for Hoist Lifting

DN serirs motor is two-speed electromagnetic brake motors, it mainly used on European electric hoist, wire rope hoist, chain hoist.
Model:
DN100L-2/8 DN112M-2/8 DN132L-2/8 DN160M-2/8 DN160L-2/8 DN100M1-2/12
Quantity:
Inquire Add to Basket

  • DN series

  • VOHOBOO

  • Hoist lift motor

  • 380V, 50HZ /customized

  • IP54 or customized

  • B5, B3, B35

  • Aluminium

  • 2/4/6/8/10/12 / custmiozed available

1. Motor Features:
1.1 Motor housing is made of aluminum, beautiful appearance, excellent heat elimination.
1.2 Motor stater adopts dual winding and two-speed, 6 lead wires, motor with a constant torque speed adjusting, adjusting ratio is 1: 4, 1: 6.
Slow speed used for machinery start, slowly moving, slowly positioning and braking. Fast speed used for normal lifting.
1.3 Motor has a large starting and limit torque, lower starting current, high power density..
1.4 Optimized the smooth performance of the two speed switching, small mechanical shock, strong overload capacity, quiet operation, low noise.
1.5 The motor adopts cylindrical  squirrel cage rotor, small size, light weight, simple control, easy maintenance, high reliability.

2. Electromagnetic brake features:
2.1 Electromagnetic brake power supply must be independent, it can not be through the inverter, AC380V half-wave rectification DC170V.
2.2 Brake is with double-sided safe braking. Reliable performance, high closing rate.
2.3 Automatic braking when power off, safety braking and without vibration.
2.4 friction plate adopts imported non-asbestos friction plate, less wear, long using life ( approx. one million times braking before the first maintenance)

Operating Conditions:
1. Standard electric system: rated voltage 380V ,rated frequency 50Hz (other voltage and frequency can be customized).
2. Altitude≤1000 meters, -15 ℃≤ ambient temperature ≤40 ℃, relative humidity ≤85%, The working environment should be no explosion dust and non-corrosive.
3.No rain and exposure , outdoor use should be packed with protective cover.
4. Motor should connect ground line, please refer to the power distribution regulations.
5. Please check whether the motor damped or not before using. Use a 500-volt megohmmeter to measure the insulation resistor, the resistor should not be less than 0.5 megohms). Or should dry the motor. The drying temperature should not exceed 80 ℃.
6. Before the motor installed on the device, please make sure the whole system has good and stable operating characters in the unloaded test.

 Hoist Motor technical parameters

Model  Pole  s Rated power Rated current Rated speed Starting current Starting torque multiplier Max torque multiplier Brake torque Weight
（KW） （A） （r/min） （A） （N.m） （kg）
DN100L-2/8 2 3.8 9.6 2820 46 2.2 2.6 40 45
8 0.9 4.6 690 14 1.7 2
DN112M-2/8 2 6.0 15 3840 72 2.2 2.6 50 53
8 1.5 6.0 700 20 1.7 2
DN132L-2/8 2 12.8 28 2480 128 2.3 2.7 100 85
8 3.2 15 700 38 1.8 2.2
DN160M-2/8 2 16 36 2850 186 2.4 2.8 150 128
8 4.0 16 710 46 1.8 2.2
DN160L-2/8 2 20 40 2860 28 2.6 3 200 138
8 5.0 17 710 58 1.8 2.2
DN100M1-2/12 2 2.0 4.5 2810 20 2.2 2.6 30 33
8 0.29 2.8 400 4.2 1.6 1.9
DN100M2-2/12 2 2.6 5.5 2810 24 2.3 2.7 30 37
12 0.38 3.0 400 5 1.6 1.9
DN100L1-2/12 2 3.2 7.5 2810 38 2.3 2.7 30 40
12 0.48 3.0 400 6.8 1.7 2
DN100L2-2/12 2 4.0 9.0 2820 42 2.3 2.7 40 45
12 0.6 5.8 400 7 1.7 2
DN112M1-2/12 2 4.9 10 2820 56 2.3 2.7 50 50
12 0.8 4.5 400 7 1.7 2
DN112M2-2/12 2 5.3 11 2820 60 2.4 2.8 60 51
12 0.85 5.0 400 7.5 1.7 2
DN112L-2/12 2 6.1 13 2820 65 2.4 2.8 60 53
12 1.0 6.0 400 8.5 1.7 2
DN132M-2/12 2 7.7 16 2840 73 2.4 2.8 80 65
12 1.3 8.5 410 13 1.7 2
DN132L1-2/12 2 10 20 2850 132 2.5 2.9 150 75
12 1.6 9.0 420 16 1.8 2
DN132L2-2/12 2 12.5 23 2860 165 2.5 2.9 150 85
12 2.0 11 430 20 1.8 2
DN160M1-2/12 2 16 33 2860 210 2.8 3.2 200 128
12 2.6 13 430 20 1.8 2
DN160M2-2/12 2 18.5 37 2860 240 2.9 3.3 260 138
12 3.0 13 430 28 1.8 2
DN160L1-2/12 2 20 39 2860 280 3 3.4 260 143
12 3.3 15 430 30 1.8 2
DN160L2-2/12 2 22 42 2860 300 3.2 3.5 260 148
12 3.6 17 430 32 1.8 2

Motor shape and mounting size:

2
Size Chart 1
Motor Model N M A T H L S K F D L1 E p
DN100M -2/8  2/12 Φ130h7 Φ165 Φ200 4.5 180 430 8×Φ9 Φ195 12 35 according to gears  customer supplied
 		 Gear parameters decide by customer
M=
Z=
β=
X=  Turing direction:
DN100L -2/8  2/12 Φ130h7 Φ165 Φ200 4.5 180 460 8×Φ9 Φ195 12 35
DN112M -2/8  2/12 Φ130h7 Φ165 Φ200 4.5 180 480 8×Φ9 Φ220 15 42
DN112L -2/8  2/12 Φ130h7 Φ190 Φ220 5 180 500 8×Φ9 Φ220 15 42
DN132M -2/8  2/12 Φ125h7 Φ190 Φ220 8 200 580 8×Φ11 Φ259 18 58
DN132L -2/8  2/12 Φ125h7 Φ190 Φ220 8 200 630 8×Φ11 Φ259 18 58
DN160M -2/8  2/12 Φ125h7 Φ190 Φ220 8 225 660 8×Φ11 Φ314 20 58
DN160L -2/8  2/12 Φ125h7 Φ190 Φ220 8 225 680 8×Φ11 Φ314 20 40

Motor shape and mounting size: Chart 2
Motor Model N M S T F A B H L R r K L1 E D P
DN100M-2/12 Φ185h7 Φ225 4×Φ9 5 26 200 200 168 407 500 25 φ195 76 26 29 M=1.5  Z=17  β=15  x=+0.5 left turning
DN100L-2/12 Φ185h7 Φ225 4×Φ9 5 26 200 200 168 427 500 25 φ195 76 26 29 M=1.5  Z=17  β=15  x=+0.5 left turning
DN112M-2/12 Φ200h7 Φ260 4×Φ13 5 29 220 220 180 421 985 10 φ220 80.5 25 35.5 M=1.75  Z=17  β=18  x=+0.5 left turning
DN112L-2/12 Φ200h7 Φ260 4×Φ13 5 29 220 220 180 451 985 10 φ220 80.5 25 35.5 M=1.75  Z=17  β=18  x=+0.5 left turning


Any special requirement can be customized!
FAQ of Motors:
1) Where the motor will be used ? crane, hoist or other machines?
2) Rated power, rated voltage, rated frequency, speed
3) Reference work system：S3?
4) Installation way: B5? B3?
5) Protection class: we standard IP54? IP55? ( or can be customized according to your request)
6) insulation class --we standard F( or can be customized according to your request)
7) Mounting Size?
If the standard size is not suitable for you, we can customize according to your drawings.


Features &Advantage:
1. Aluminum housing: fast heating radiation comparing iron casting housing.

2. Germany import non-asbestos friction plate: environmental protection.

3. China top quality silicon steel sheet iron core(used for stator and rotor).

4. Cold rolling silicon steel sheet: not hot rolling, which can reduce motor heat.

5. F class insulation paper and insulation paint for copper wire, which can withstand high temperature.

6. Especial and professional testing equipment before delivery: 3 minutes high voltage testing, voltage reduction 15% testing, ground pressure testing..

7. All of motors with cylinder squirrel-cage rotor, which is  Start steady than coning rotor.
