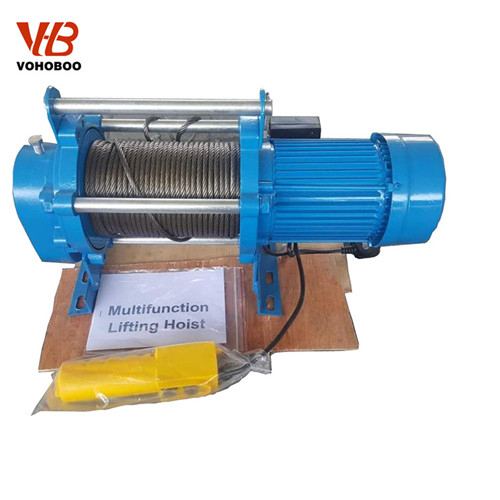

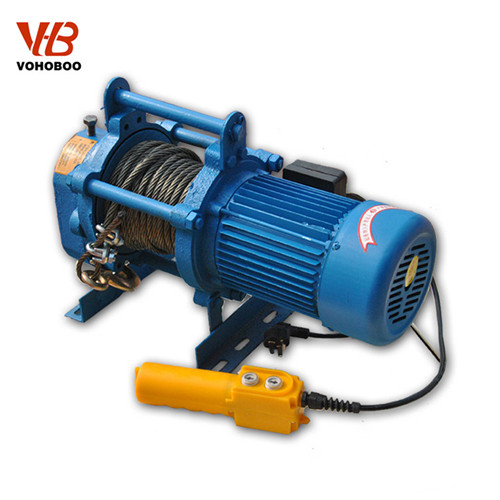

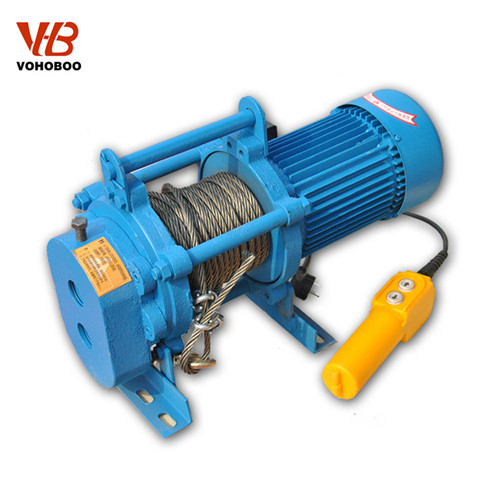

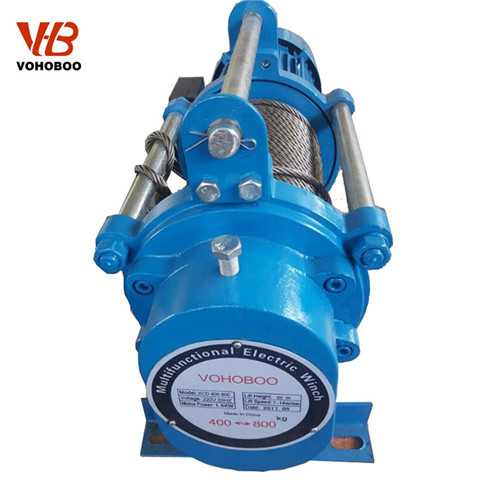

2 Ton Electric Rope Winch

KCD Type Wire Rope Electric Hoist Winch, can be vertical lifting use or horizontal pulling use.
Quantity:
  • KCD

  • Vohoboo

  • Electric

  • Construction Hoist

  • 2 Ton

  • With cable or remote control

  • 30-100M

  • Wire Rope

Application of Electric Rope Winch:
Applies to industrial enterprise, mining company, normal factory, workshop, railway, sea port, warehouse, stock ground and so on. This is the ideal equipment to improve working efficiency and working conditions nowadays.

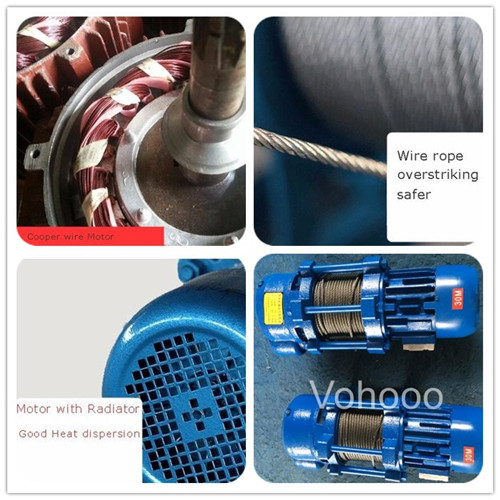

Features of KCD Electric Wire Rope Winch:
· Wire Rope Fixing: No escape of wire rope from the drum by means of P.T.screw device.
· Drum Transmission: The shaft direct driving drum provides rope replacement and alteration of rotation with easy.
· Electromagnetic: Designed for both static and dynamic loading.Brake will automatically apply in the event of power cut.Large friction surface area.No adjustments or serving requirement.
· Gear Box: Provides strength,durability an non-worry of breakage of structure
· Special Motor insulated B,with the features of big start torque, small inertia, lower temperature rise,it can work frequently for a long time
· Driving Gear: The heat treated gear with bearings features durable performance and anti-wear.
· Machine Fixture: It is made of super armor plate,used for suspender,lifter and girder.

Parameters View Of KCD Electric Rope Winch:

Model Usage Power (kw) Rated Load (kg) Lifting Speed (m/min) Lifting Height (m) Net Weight(kg)
300-600 Single-hook 0.6 300 14/7 30-60 32

Double-hook
600


400-800 Single-hook 1.8 400 12/6 30-100 34

Double-hook
800


500-1000 Single-hook 1.5 500 12/6, 16/8 30-100 50

Double-hook
1000


750-1500 Single-hook 2.0 750 16/8 30-100 65

Double-hook
1500


1000-2000 Single-hook 3.0 1000 16/8 30-100 120

In order to recommend a proper Electric Rope Winch for you, please kindly advise below information:
1> Quantity
2> Lifting weight, lifting height
3> Power supply (such as 380V, 3phase, 50Hz)
4> Color, other special requirements.

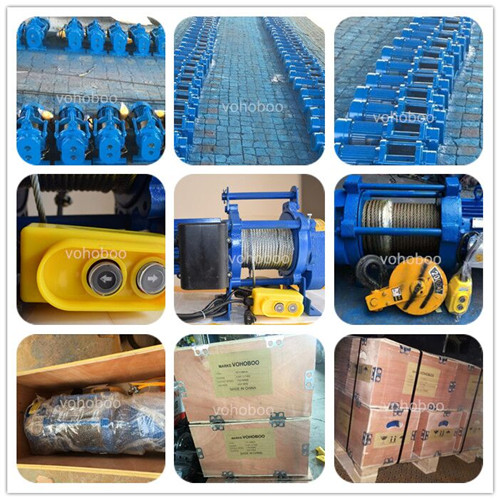

Safety Package of KCD electric winch:
KCD electric winch
