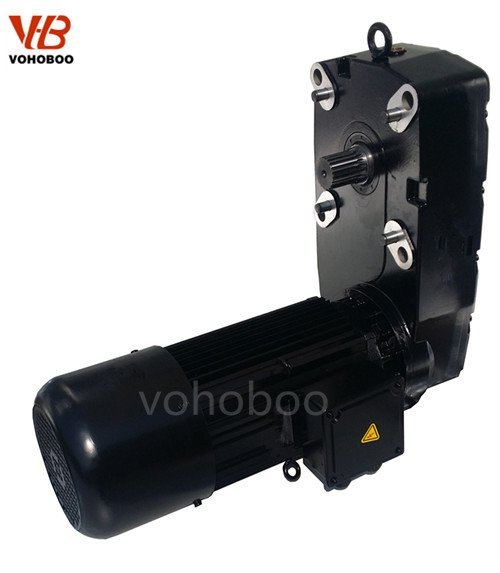

12.5 Ton Hoist Lift Motor with Reducer

According to FEM standard design principles and practicability, applying into the wire rope hoist drive units with compact structure and limited space.
Quantity:
  • DM- Lift Motor

  • Vohoboo

  • Aluminium

  • 220V-480V, 50/60HZ

  • IP54 or customized

DM125 Wire Rope Hoist Lifting Drive System   (Lifting Weight≦ 12.5T)

Data For Dual Speed Control Technology , Drum Diameter: 266mm, 4/1 Pulleys Magnification
:

Pos. Lifting Weight  t Group Speed m/min Power (KW) Rate  HZ Reduction Ratio  (i)    Brake Torque   Nm Type
IOS FEM
1 10 M5 2m 0.66/4.0
0.8/4.8
1.2/7.6
  (1.44/9.1)
50 (60) 152 70 DM125-152.0-D1.2/7.6-12/2
8 M6 3m
6.3 M7 4m
5 M7 4m
2 10 M5 2m 0.8/5.0
(1.0/6.0)
1.5/9.5
(1.8/11.4)
50 (60) 117.7 100 DM125-117.7-D1.5/9.5-12/2
8 M6 3m
6.3 M7 4m
5 M7 4m
3 8 M5 2m 1.0/6.3
1.2/7.6
1.5/9.5
(1.8/11.4)
50 (60) 93.3 100 DM125-93.3-D1.5/9.5-12/2
6.3 M6 3m
5 M7 4m
4 M7 4m
4 6.3 M5 2m 1.3/8.0
1.6/9.6
1.5/9.5
  (1.8/11.4)
50 (60) 73.2 100 DM125-73.2-D1.5/9.5-12/2
5 M6 3m
4 M7 4m
3.2 M7 4m
5 12.5 M5 2m 1.66/4.0
(0.8/4.8)
1.5/9.5
 (1.8/11.4)
50 (60) 152 100 DM125-152.0-D1.5/9.5-12.2
10 M6 3m
8 M7 4m
6.3 M7 4m
6 12.5 M4 1Am 0.8/5.0
1.0/6.0
2.0/12.5
2.4/15.0
50 (60) 117.7 100 DM125-117.7-D2.0/12.5-12/2
10 M5 2m
8 M6 3m
6.3 M7 4m
7 10 M4 1Am 1.0/6.3
1.2/7.6
2.0/12.5
2.4/15.0
50 (60) 93.3 100 DM125-93.3-D2.0/12.5-12/2
8 M5 2m
6.3 M6 3m
5 M7 4m
8 8 M4 1Am 1.3/8.0
1.6/9.6
2.0/12.5
2.4/15.0
50 (60) 73.2 100 DM125-73.2-D2.0/12.5-12/2
6.3 M5 2m
5 M6 3m
4 M7 4m

Note:The dual speed motor --12 poles/2 poles


Data For Frequency Control Technology, Drum Diameter:260mm, 4/1 Pulleys Magnification

Pos. Lifting Weight  t Group Speed m/min Power      Kw  Rate  HZ Reduction Ratio  (i) Brake Torque   Nm Type
IOS FEM
1 10 M5 2m 0.66~4.0
0.8~4.8
7.5

9.0
100(120) 152 70 DM125-152.0-V7.5-4
8 M6 3m
6.3 M7 4m
5 M7 4m
2 10 M5 2m 0.8~5.0
(1.0~6.0)
11

13.2
100(120) 117.1 100 DM125-117.7-V11-4
8 M6 3m
6.3 M7 4m
5 M7 4m
3 8 M5 2m 1.0~6.3
1.2~7.6
11

13.2
100(120) 93.3 100 DM125-93.3-V11-4
6.3 M6 3m
5 M7 4m
4 M7 4m
4 6.3 M5 2m 1.3~8.0
1.6~9.6
11

13.2
100 (120) 73.2 100 DM125-73.2-V11-4
5 M6 3m
4 M7 4m
3.2 M7 4m
5 12.5 M5 2m 1.66~4.0
(0.8~4.8)
11
13.2
100(120) 152 100 DM125-152.0-V11-4
10 M6 3m
8 M7 4m
6.3 M7 4m
6 12.5 M4 1Am 0.8~5.0
1.0~6.0
15
18
100  (120) 117.7 100 DM125-117.7-V15-4
10 M5 2m
8 M6 3m
6.3 M7 4m
7 10 M4 1Am 1.0~6.3
1.2~7.6
15
18
100(120) 93.3 100 DM125-93.3-V15-4
8 M5 2m
6.3 M6 3m
5 M7 4m
8 8 M4 1Am 1.3~8.0
1.6~9.6
15
18
100(120) 73.2 100 DM125-73.2-V15-4
6.3 M5 2m
5 M6 3m
4 M7 4m

Note:Variable brake motor
