Quantity: | |
---|---|
HH
VOHOBOO

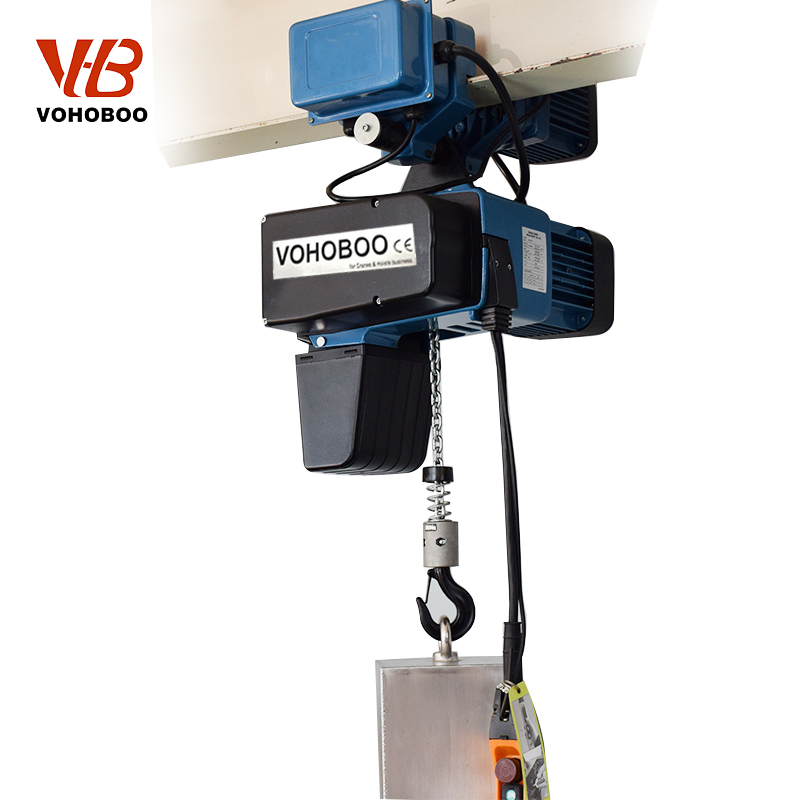

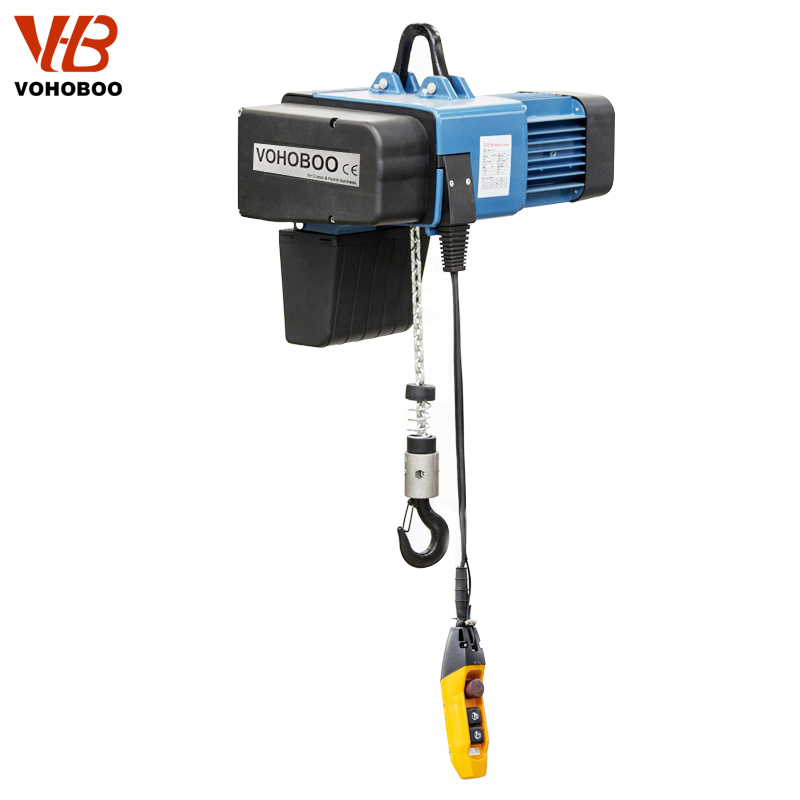

European Hook Type Electric Chain Hoist
Pendent Control or Remote Control
Moveable
380V 50Hz 3 phase or on request
Customised
IP54, IP55 or customized
2-30m/min
2.2~8.8m/min
Motor, Bearing, Gear, Gearbox
125 kg
Model | Lifting Capacity(KG) | lifting Speed (n/min) | Motor Power(KW) | Rotation Speed (r/min) | Operating Voltage (V) | Control Voltage (V) | Work Duty (FEM/ISO) |
HH0.125-01M | 125 | 8/2 | 0.4/0.1 | 2880/720 | 220-460 | 24 | 2M/M5 |
HH0.125-01M | 125 | 13/13.2 | 0.75/0.2 | 2880/720 | 220-460 | 24 | 2M/M5 |
HH0.25-01M | 250 | 8/2 | 0.4/0.1 | 2880/720 | 220-460 | 24 | 2M/M5 |
HH0.5-01M | 500 | 8/2 | 0.75/0.2 | 2880/720 | 220-460 | 24 | 2M/M5 |
HH0.5-02M | 500 | 4/1 | 0.4/0.1 | 2880/720 | 220-460 | 24 | 2M/M5 |
HH01-01M | 1000 | 8/2 | 1.5/0.37 | 2880/720 | 220-460 | 24 | 2M/M5 |
HH01-02M | 1000 | 4/1 | 0.75/0.2 | 2880/720 | 220-460 | 24 | 2M/M5 |
HH02-02M | 2000 | 4/1 | 1.5/0.37 | 2880/720 | 220-460 | 24 | 2M/M5 |
Model | L (mm) | L1(mm) | A(mm) | B(mm) | C(mm) | C1(mm) |
HH0.125-01M | 440 | 194 | 160 | 288 | 400 | 425 |
HH0.125-01M | 464 | 197 | 170 | 315 | 420 | 450 |
HH0.25-01M | 440 | 194 | 160 | 288 | 400 | 425 |
HH0.5-01M | 464 | 197 | 170 | 315 | 420 | 450 |
HH0.5-02M | 440 | 194 | 160 | 288 | 470 | 425 |
HH01-01M | 548 | 260 | 182 | 343 | 560 | 640 |
HH01-02M | 464 | 197 | 170 | 315 | 490 | 450 |
HH02-02M | 548 | 260 | 182 | 343 | 630 | 640 |
Model | Lifting Capacity(KG) | lifting Speed (n/min) | Motor Power(KW) | Rotation Speed (r/min) | Operating Voltage (V) | Control Voltage (V) | Work Duty (FEM/ISO) |
HH0.125-01M | 125 | 8/2 | 0.4/0.1 | 2880/720 | 220-460 | 24 | 2M/M5 |
HH0.125-01M | 125 | 13/13.2 | 0.75/0.2 | 2880/720 | 220-460 | 24 | 2M/M5 |
HH0.25-01M | 250 | 8/2 | 0.4/0.1 | 2880/720 | 220-460 | 24 | 2M/M5 |
HH0.5-01M | 500 | 8/2 | 0.75/0.2 | 2880/720 | 220-460 | 24 | 2M/M5 |
HH0.5-02M | 500 | 4/1 | 0.4/0.1 | 2880/720 | 220-460 | 24 | 2M/M5 |
HH01-01M | 1000 | 8/2 | 1.5/0.37 | 2880/720 | 220-460 | 24 | 2M/M5 |
HH01-02M | 1000 | 4/1 | 0.75/0.2 | 2880/720 | 220-460 | 24 | 2M/M5 |
HH02-02M | 2000 | 4/1 | 1.5/0.37 | 2880/720 | 220-460 | 24 | 2M/M5 |
Model | L (mm) | L1(mm) | A(mm) | B(mm) | C(mm) | C1(mm) |
HH0.125-01M | 440 | 194 | 160 | 288 | 400 | 425 |
HH0.125-01M | 464 | 197 | 170 | 315 | 420 | 450 |
HH0.25-01M | 440 | 194 | 160 | 288 | 400 | 425 |
HH0.5-01M | 464 | 197 | 170 | 315 | 420 | 450 |
HH0.5-02M | 440 | 194 | 160 | 288 | 470 | 425 |
HH01-01M | 548 | 260 | 182 | 343 | 560 | 640 |
HH01-02M | 464 | 197 | 170 | 315 | 490 | 450 |
HH02-02M | 548 | 260 | 182 | 343 | 630 | 640 |
