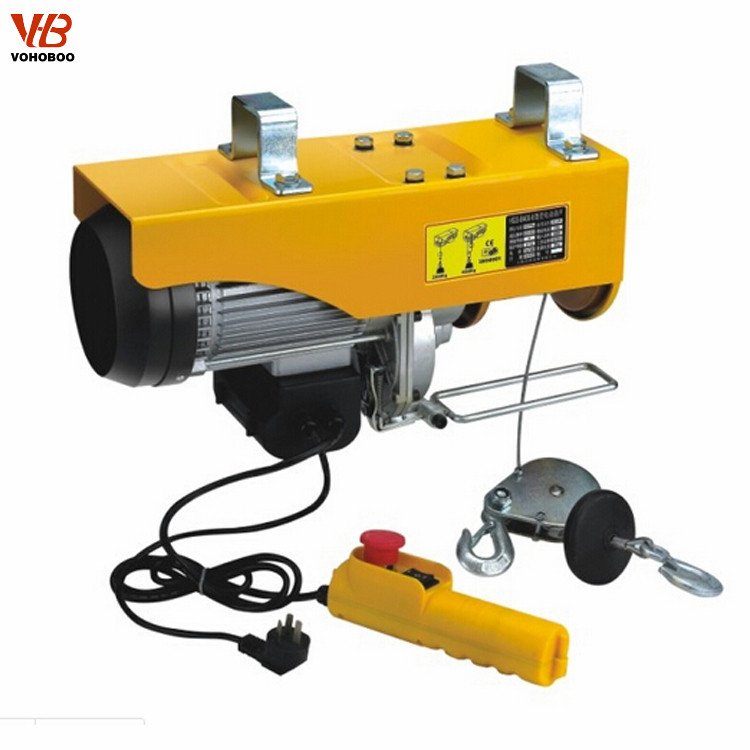

PA mini electric Hoist

Mini electric hoist
1. The design of mini electric hoist is very clever,easy to use.
2. Lifting hook can rotate 360degree.

Quantity:
  • VOHOBOO
  • PA min electric Hoist
  • 6m, 12m, customized
  • 1t-12t
The PA type mini electric hoist can be used in factories,mines, agriculture , electric power,construction building site,dock,and warehouse for installation of the machines,lifting the cargoes,load and unloading the trucks.

PA mini electric hoist parameters:


Model Usage Power supply Input power (w) Rated capacity (kg) Lifting speed (m/min.) Lifting height (m) Packing size (cm) G.W/ N.W (kg)
PA200 Single-Hook  220V/230V
50HZ/ 60HZ
480 100 10 12 38*32*25 22.5/22
Double-Hook 200 5 6
PA250 Single-Hook 510 125 10 12 23/22
Double-Hook 250 5 6
PA300 Single-Hook 600 150 10 12 23.5/23
Double-Hook 300 5 6
PA400 Single-Hook 950 200 10 12 45*34*27 33/32
Double-Hook 400 5 6
PA500 Single-Hook 1020 250 10 12 33.5/32.5
Double-Hook 500 5 6
PA600 Single-Hook 1200 300 10 12 35/34
Double-Hook 600 5 6
PA800 Single-Hook 1300 400 8 12 38/37
Double-Hook 800 4 6
PA1000 Single-Hook 1600 500 8 12 54*25*32 39/38
Double-Hook 1000 4 6
PA1200 Single-Hook 1800 600 8 12 42/40
Double-Hook 1200 4 6


Package of Mini Hoist
 mini hoist 2
