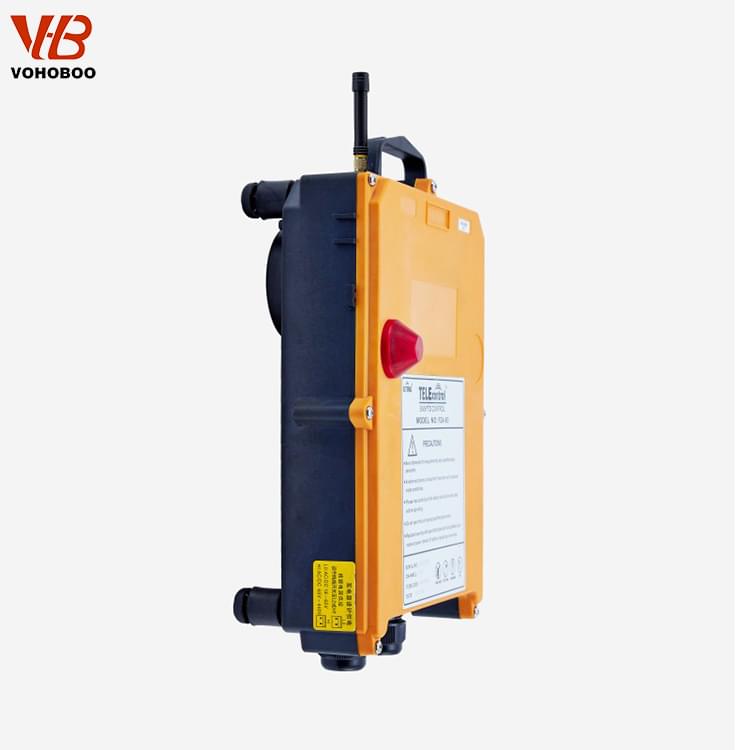

24V 48V 110V Multi-Channel Wireless Remote Controller Transmitter Receiver F24-60

1. 6 function buttons, 4 three-position or two-position rotating switch, stop, rotary start switch 2 five-step
joysticks with 10 million times of mechanical life and pure proportion.

2. Control contact is up to 40.

3. With battery voltage warning device, the power supply is cut off during low power.

4. Safety switch key is to prevent from unauthorized user.

5. Program the button function by computer software.

6. The spare buttons can be programmed to normal, toggle, interlock or start, etc.

7. Start button can be program to be start, normal, toggle function etc.

8. Installed with proportional module for analog signal output (optional)
Quantity:
  • F24-60

  • VOHOBOO

  • Universal Cloning Remote Control

  • Waterproof, LED indicator light

  • Yes

  • ABS, Plastic, Plastic And Silicone

  • 4 Buttons

  • AAA

  • Fixed Code

  • Industrial Equipment

  • Durable

  • AC85-250V

头图



  1. Wireless Technology:

    • The F24-60 is likely to operate on wireless technology, enabling remote control of industrial equipment without the need for a physical connection.
  2. Operating Frequency:

    • The remote control likely operates on a specific radio frequency, ensuring reliable and interference-free communication between the remote control unit and the receiving equipment.
  3. Channels:

    • The "60" in the model name may indicate the number of control channels available on the remote. Each channel corresponds to a specific function or movement of the controlled machinery, offering a wide range of control options.
  4. Control Buttons or Joysticks:

    • The remote control unit is expected to be equipped with a set of control buttons or joysticks. These controls allow operators to manage different functions of the machinery, such as lifting, lowering, moving, or other specific actions.
  5. Ergonomic Design:

    • Industrial remote controls, including the F24-60, are likely designed with ergonomic considerations for comfortable use during extended periods of operation.
  6. Durability:

    • These remote controls are typically constructed with durable materials to withstand the challenging conditions of industrial environments. They are designed to resist impact, vibration, and exposure to dust or moisture.
  7. Range:

    • The remote control system likely has a specified operating range within which it can effectively communicate with the receiving equipment. The range is crucial for ensuring operators can control machinery from a safe distance.
  8. Safety Features:

    • Industrial remote controls often include safety features, such as emergency stop buttons or safety key switches, to quickly halt machinery operations in case of an emergency.
  9. Battery Life:

    • The remote control unit is expected to be powered by batteries. The battery life may vary but is designed to last through a typical work shift before requiring recharging or battery replacement.
  10. Easy Installation:

    • F24-60 and similar remote control systems are designed for relatively easy installation on different types of industrial equipment, allowing for quick integration with existing machinery.
  11. Compatibility:

    • The F24-60 remote control is likely designed to be compatible with a range of industrial equipment, offering a versatile solution for various applications.
      1. Wireless Technology:

        • The F24-60 is likely to operate on wireless technology, enabling remote control of industrial equipment without the need for a physical connection.
      2. Operating Frequency:

        • The remote control likely operates on a specific radio frequency, ensuring reliable and interference-free communication between the remote control unit and the receiving equipment.
      3. Channels:

        • The "60" in the model name may indicate the number of control channels available on the remote. Each channel corresponds to a specific function or movement of the controlled machinery, offering a wide range of control options.
      4. Control Buttons or Joysticks:

        • The remote control unit is expected to be equipped with a set of control buttons or joysticks. These controls allow operators to manage different functions of the machinery, such as lifting, lowering, moving, or other specific actions.
      5. Ergonomic Design:

        • Industrial remote controls, including the F24-60, are likely designed with ergonomic considerations for comfortable use during extended periods of operation.
      6. Durability:

        • These remote controls are typically constructed with durable materials to withstand the challenging conditions of industrial environments. They are designed to resist impact, vibration, and exposure to dust or moisture.
      7. Range:

        • The remote control system likely has a specified operating range within which it can effectively communicate with the receiving equipment. The range is crucial for ensuring operators can control machinery from a safe distance.
      8. Safety Features:

        • Industrial remote controls often include safety features, such as emergency stop buttons or safety key switches, to quickly halt machinery operations in case of an emergency.
      9. Battery Life:

        • The remote control unit is expected to be powered by batteries. The battery life may vary but is designed to last through a typical work shift before requiring recharging or battery replacement.
      10. Easy Installation:

        • F24-60 and similar remote control systems are designed for relatively easy installation on different types of industrial equipment, allowing for quick integration with existing machinery.
      11. Compatibility:

        • The F24-60 remote control is likely designed to be compatible with a range of industrial equipment, offering a versatile solution for various applications.
线路图1
线路图2
细节1
xj2
xj3
优势 (2)
优势 (1)
F24-60 Transmitter Parameters
Material
Glass-Fiber PA
Enclosure protection class
IP65
Frequency range
VHF: 310-331MHz (UHF: 425-446MHz is optional)
Transmitter power
≤10dBm
Transmitter power supply
2 AA alkaline batteries (not included)
Safety code
32 bits (4.3billion)
Temperature range
-40℃-+85℃
Control distance
Approx 100m(200 meters is customized)
Size
210x152x128mm
Weight
980g (without battery)
F24-60 Receiver Parameters
Material
Glass-Fiber PA
Enclosure protection class
IP65
Frequency range
VHF: 310-331MHz; UHF: 425-446MHz
Receiver sensitivity
-110dBm
Receiver power supply
18~65V AC/DC; 65~440V AC/DC (optional)
Safety code
32 bits (4.3billion)
Temperature range
-40℃-+85℃
Output contactor capacity
8A sealed relay output (with AC 250V/10A relays, 10A fuse)
Cable length
1.65m (Other length can be customized)
Size
320x253x107mm
Weight
2020g
