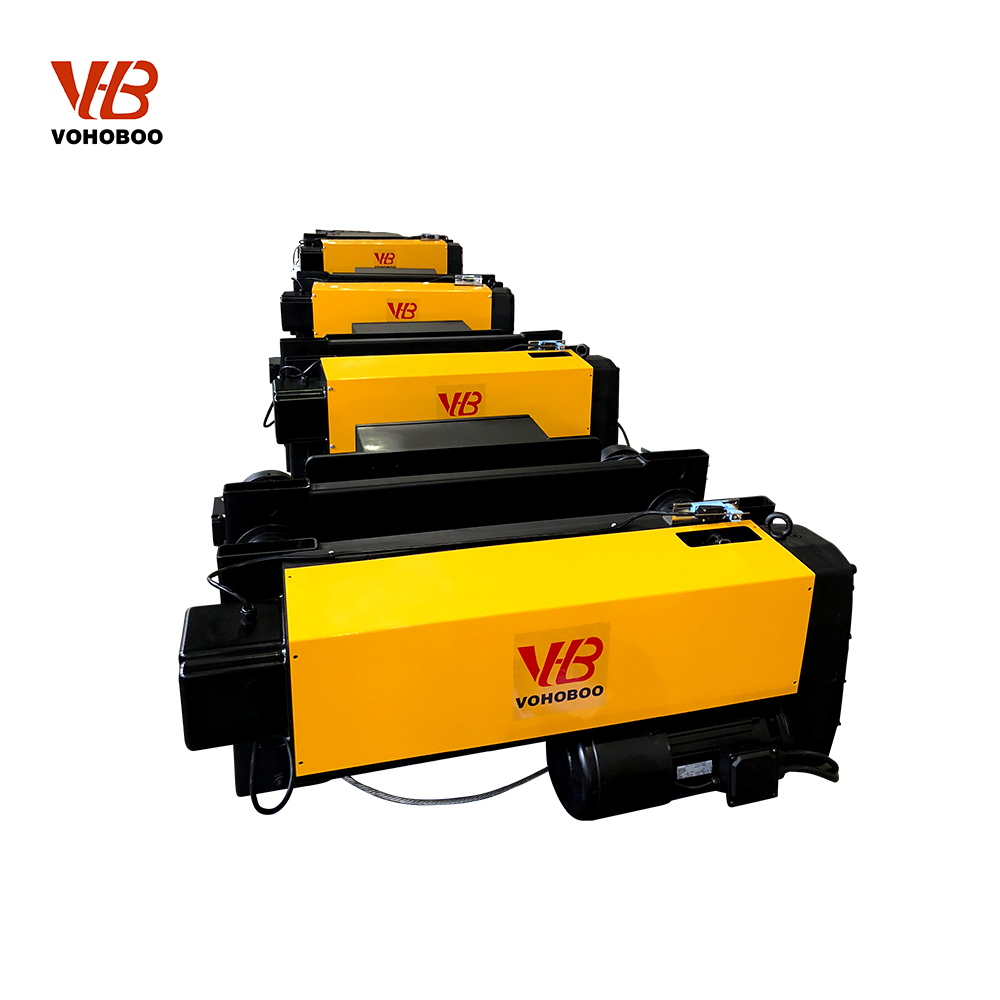

European Wire Rope Electric Crane Hoist

Compared with the traditional electric wire rope hoist, the structure of European type hoist is more reasonable and the technology is more advanced. In order to stand out in the group of electric wire rope hoist suppliers, we constantly improve the technology to produce high level hoist to be aligned with the world.

Quantity:


Inquire Add to Basket

Brand: Vohoboo

Product Description

Products information:

* Capacity: 1.6~12.5ton

* Hoisting speed: 1.6,1.0m/min

* Travel speed: 2～20 m/min

* Duty group: M5

*Modularized Drive Units

* With Hardened Face Gear

* Frequency Converting Control

*· Easy maintenance

Main Feature:

* Electromagnetic disk brake, dustproof

* Harden gear, maintenance- free

* Double speed or inverter

* Schneider contactor

* Heavy duty galvanized wire rope

* Overload protection

* Double upper limits, protecting the hoist body and hook assembly

* Motor overtemperature protection

European type hoist used on double girder overhead crane:

额定载荷 S.W.L (KG)	工作级别 FEM	工作级别 ISO	起升高度 Hoisting height	起升速度 Hoisting speed	运行速度 Traveling speed	H 尺寸 Size H (mm)	C 尺寸 Size C (mm)
2 0 0 0	3 M	M 6	6 / 9 / 1 2 / 1 8	0 . 8 / 5 . 0	5 ~ 2 0	4 6 3	3 5 0
3 2 0 0	2 M	M 5	6 / 9 / 1 2 / 1 9	0 . 8 / 5 . 0	5 ~ 2 0	4 6 3	3 5 0
5 0 0 0	2 M	M 5	6 / 9 / 1 2/ 2 0	0 . 8 / 5 . 0	5 ~ 2 0	4 6 3	3 5 0
6 3 0 0	1 A M	M 4	6 / 9 / 1 2 / 2 1	0 . 8 / 5 . 0	5 ~ 2 0	4 6 3	3 5 0
8 0 0 0	3 M	M 6	6 / 9 / 1 2 / 2 2	0 . 8 / 5 . 0	5 ~ 2 0	5 8 0	5 6 3
1 0 0 0 0	1 A M	M 4	6 / 9 / 1 2 / 2 3	1 . 0 / 6 . 3	5 ~ 2 0	5 8 0	5 6 3
1 0 0 0 0	2 M	M 5	6 / 9 / 1 2 / 2 4	0 . 8 / 5 . 0	5 ~ 2 0	5 8 0	5 6 3
1 0 0 0 0	3 M	M 6	6 / 9 / 1 2 / 2 5	0 . 6 6 / 4 . 0	5 ~ 2 0	5 8 0	5 6 3
1 2 5 0 0	1 A M	M 4	6 / 9 / 1 2 / 2 6	0 . 8 / 5 . 0	5 ~ 2 0	5 8 0	5 6 3
1 2 5 0 0	1 A M	M 4	6 / 9 / 1 2 / 2 7	1 . 0 / 6 . 3	5 ~ 2 0	6 7 9	7 0 0
1 2 5 0 0	2 M	M 5	6 / 9 / 1 2 / 2 8	0 . 6 / 4 . 0	5 ~ 2 0	6 7 9	7 0 0
1 6 0 0 0	2 M	M 5	6 / 9 / 1 2 / 2 9	0 . 6 6 / 4 . 0	5 ~ 2 0	6 7 9	7 0 0
2 0 0 0 0	1 A M	M 4	6 / 9 / 1 2 / 3 0	0 . 6 6 / 4 . 0	5 ~ 2 0	6 7 9	7 0 0
2 0 0 0 0	2 M	M 5	6 / 9 / 1 2 / 3 1	0 . 5 3 / 3 . 4	5 ~ 2 0	6 7 9	7 0 0
2 0 0 0 0	3 M	M 6	6 / 9 / 1 2 / 3 2	1 . 0 / 4 . 2	5 ~ 2 0	8 6 4	1 0 0 0
2 5 0 0 0	1 A M	M 4	6 / 9 / 1 2 / 3 3	0 . 5 3 / 3 . 4	5 ~ 2 0	8 6 4	1 0 0 0
2 5 0 0 0	3 M	M 6	6 / 9 / 1 2 / 3 4	0 . 8 / 3 . 3	5 ~ 2 0	8 6 4	1 0 0 0
2 5 0 0 0	2 M	M 5	6 / 9 / 1 2 / 3 5	1 . 0 / 4 . 2	5 ~ 2 0	8 6 4	1 0 0 0
3 2 0 0 0	2 M	M 5	6 / 9 / 1 2 / 3 6	0 . 8 / 3 . 3	5 ~ 2 0	8 6 4	1 0 0 0
3 5 2 0 0	2 M	M 5	6 / 9 / 1 2 / 3 7	0 ~4 . 9	5 ~ 2 0	1 0 2 3	9 5 0
4 0 0 0 0	1 A M	M 4	6 / 9 / 1 2 / 3 8	0 ~ 4 . 9	5 ~ 2 0	1 0 2 3	9 5 0
5 0 0 0 0	2 M	M 5	6 / 9 / 1 2 / 3 9	0 ~ 3 . 2	5 ~ 2 0	1 0 2 3	9 5 0
5 0 0 0 0	1 A M	M 4	6 / 9 / 1 2 / 4 0	0 ~ 4 . 1	5 ~ 2 0	1 0 2 3	9 5 0
6 3 0 0 0	1 A M	M 4	6 / 9 / 1 2 / 4 1	0 ~ 3 . 2	5 ~ 2 0	1 0 2 3	9 5 0
6 3 0 0 0	2 M	M 5	6 / 9 / 1 2 / 4 2	0 ~ 2 . 4	5 ~ 2 0	1 0 2 3	1 1 0 0
8 0 0 0 0	1 A M	M 4	6 / 9 /1 2 / 4 3	0 ~ 2 . 4	5 ~ 2 0	1 0 2 3	1 1 0 0

European type hoist used on single girder overhead crane:

额定载荷 S.W.L (KG)	工作级别 FEM	工作级别 ISO	起升高度 Hoisting height	起升速度 Hoisting speed	运行速度 Traveling speed	H 尺寸 Size H (mm)	C 尺寸 Size C (mm)
1000	4M	M7	6/9/12/18	0.8/5.0	5~20	232	500
1250	3M	M6	6/9/12/18	0.8/5.0	5~20	232	500
1600	3M	M6	6/9/12/18	0.8/5.0	5~20	232	500
1600	2M	M5	6/9/12/18	1.6/10	5~20	232	500
2000	2M	M5	6/9/12/18	0.8/5.0	5~20	232	500
2000	3M	M6	6/9/12/18	1.3/8.0	5~20	232	500
2500	3M	M6	6/9/12/18	0.8/5.0	5~20	232	500
2500	3M	M6	6/9/12/18	1.0/6.3	5~20	232	500
2500	2M	M5	6/9/12/18	1.3/8.0	5~20	232	500
3200	2M	M5	6/9/12/18	0.8/5.0	5~20	232	500
3200	2M	M5	6/9/12/18	1.0/6.3	5~20	232	500
3200	1AM	M4	6/9/12/18	1.6/10	5~20	254	590
5000	2M	M5	6/9/12/18	0.8/0.5	5~20	254	590
5000	3M	M6	6/9/12/18	1.6/6.3	5~20	321	740
5000	2M	M5	6/9/12/18	1.6/10	5~20	321	740
6300	1AM	M4	6/9/12/18	0.8/5.0	5~20	254	590
6300	4M	M7	6/9/12/18	0.5/5.0	5~20	321	740
6300	2M	M5	6/9/12/18	1.3/8.0	5~20	321	740
8000	3M	M6	6/9/12/18	0.8/5.0	5~20	321	740
10000	1AM	M4	6/9/12/18	1.0/6.3	5~20	321	740
10000	2M	M5	6/9/12/18	0.8/5.0	5~20	321	740
10000	3M	M6	6/9/12/18	0.66/4.0	5~20	321	740
12500	1AM	M4	6/9/12/18	0.8/5.0	5~20	321	740
12500	2M	M5	6/9/12/18	0.6/4.0	5~20	321	740
12500	1AM	M4	6/9/12/18	1.0/6.3	5~20	321	740
12500	3M	M3	6/9/12/18	0.6/4.0	5~20	411	850
16000	2M	M5	6/9/12/18	0.6/4.0	5~20	411	850
20000	1AM	M4	6/9/12/18	0.6/4.0	5~20	411	850
