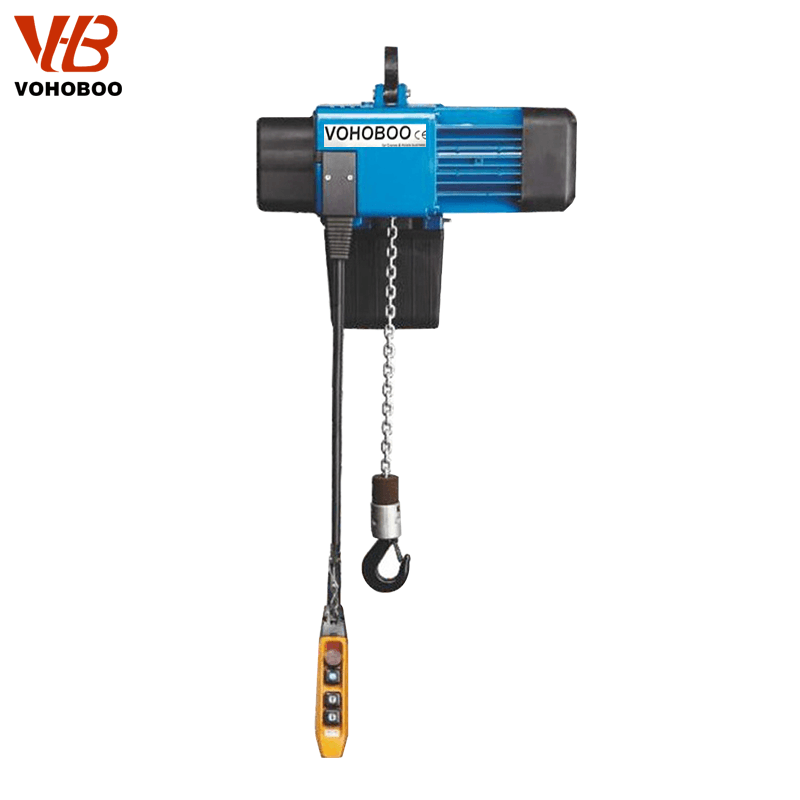

European Hook Type Electric Chain Hoist

HH type European electric chain hoist with flexible action, positioning accuracy. The main lift speed is quickly and efficiently , the side low speed is loading smoothly, accurate positioning. In practical working condition, The VOHOBOO working duty is 20% more than the normal 2 M , which means it can extend the service life and reduce the times of overhauls. This is also the unique feature of our HH European electric chain hoist.
Quantity:
  • HH
  • VOHOBOO
  • European Hook Type Electric Chain Hoist
  • Pendent Control or Remote Control
  • Moveable
  • 380V 50Hz 3 phase or on request
  • Customised
  • IP54, IP55 or customized
  • 2-30m/min
  • 2.2~8.8m/min
photobank

Brief Description of HH model electric chain hoist:
Sensitive and Fast
➢ HH type European electric chain hoist with flexible action, positioning accuracy. The main lift speed is quickly and efficiently , the side low speed is loading smoothly, accurate positioning.
Longer service life & greater efficiency
➢ In practical working condition, The VOHOBOO working duty is 20% more than the normal 2 M , which means it can extend the service life and reduce the times of overhauls. This is also the unique feature of our HH European electric chain hoist.
➢Professional chain guide design
➢More smoothly and efficiently operation
➢Chain less abrasion

微信图片_20190905104229


Model Lifting Capacity(KG) lifting Speed (n/min) Motor Power(KW) Rotation Speed (r/min) Operating Voltage (V) Control Voltage (V) Work Duty (FEM/ISO)
HH0.125-01M 125 8/2 0.4/0.1 2880/720 220-460 24 2M/M5
HH0.125-01M 125 13/13.2 0.75/0.2 2880/720 220-460 24 2M/M5
HH0.25-01M 250 8/2 0.4/0.1 2880/720 220-460 24 2M/M5
HH0.5-01M 500 8/2 0.75/0.2 2880/720 220-460 24 2M/M5
HH0.5-02M 500 4/1 0.4/0.1 2880/720 220-460 24 2M/M5
HH01-01M 1000 8/2 1.5/0.37 2880/720 220-460 24 2M/M5
HH01-02M 1000 4/1 0.75/0.2 2880/720 220-460 24 2M/M5
HH02-02M 2000 4/1 1.5/0.37 2880/720 220-460 24 2M/M5


Size of hook type chain hoist:
Model L (mm) L1(mm) A(mm) B(mm) C(mm) C1(mm)
HH0.125-01M 440 194 160 288 400 425
HH0.125-01M 464 197 170 315 420 450
HH0.25-01M 440 194 160 288 400 425
HH0.5-01M 464 197 170 315 420 450
HH0.5-02M 440 194 160 288 470 425
HH01-01M 548 260 182 343 560 640
HH01-02M 464 197 170 315 490 450
HH02-02M 548 260 182 343 630 640

QQ图片20190711134142
QQ图片20190711134121
大货图
