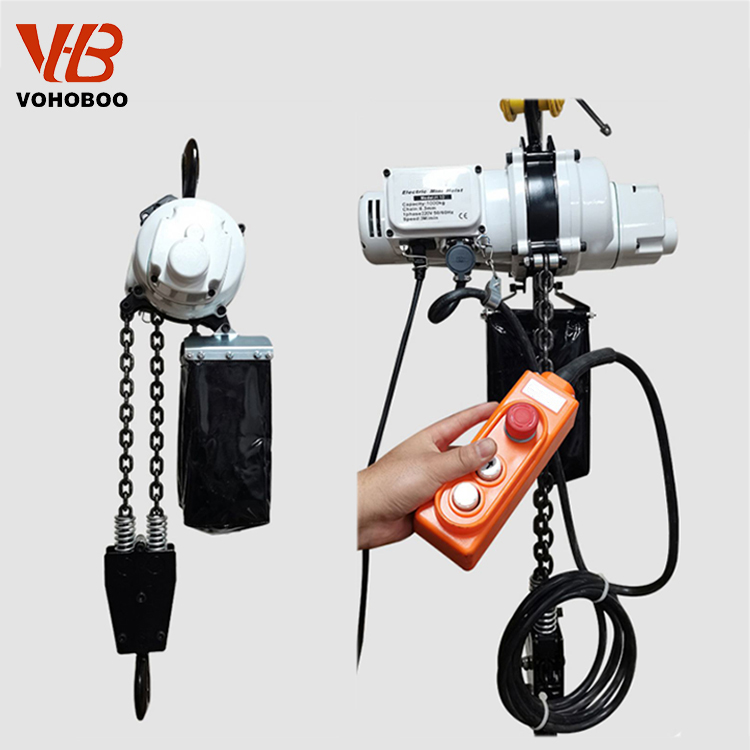

110V/220V Single Phase Mini ELectric Chain Hoist

The lightweight electric chain hoist is suitable for engineering hanging, factory hoisting operations, construction projects, interior decoration, agricultural and grain lifting, warehouse access, etc., small in appearance, heavy and light, single-phase power supply is convenient, and it has a wide range of uses. The unique ascension system design makes it lighter, quieter and easier to carry in small places.
Quantity:
  • BCD
  • VOHOBOO
头图
USAGE
The mini electric chain hoist can be widely used in hanging for engineering, plant hoist operations, civil hydropower installed piping,Warehousing and shipping the goods it can be used to lift, raise and, drag. lt's compact,lightweight, economy and effective,and easy to obtain single-phase power supply.
SPECIAL FEATURES:
Motor system:
using brushless motor series excited of high efficiency industrial grade; there are two selected configurations of single phase voltage (110v/ 220V); its enameled heat levels up to 200 degrees, specifically designed for long crane.
Brake system:
dual brake system with one mechanical ratchet gear brakes and the other brake resistor short circuit controller, formula oiled copper disc brakes with high friction coefficient,which needs no adjustment;immediately brake in power outage or malfunction,great safety and long life.
Electronic controt system:
direct control which saves ted lous lines and has the advantages of easy maintenance, low failure rate, security and stability;control switch with separate power line and quick connector makes it easy to carry.
Gear system:
Use the transmission plus planetary reduction gear with the best efficiency;, planetary gear set has two steel heat  treatment operating idlers which can share power, and the life is more than 2 times the general driving type.
Model
Capacity(kg)
Power(voltage)
Phase
Lift(Meter)
Chain(Falls)
Load chain(mm)
BCD-825
250
100-200
200-240
1
3
1
6.3
BCD-901
500
100-120
200-240
1
3
1
6.3
BCD-902
1000
100-120
200-240
1
3
2
6.3
